    CPE902A
(工業用グレード IEEE 802.11 a/b/g/n 2T2R Wi-Fi mini PCI Express)


2.4 / 5 GHz industrial wireless LAN Access Point only choice


     Introduction of Products

Bointec CPE902A included industrial grade chipset, is a single-chip, dual-band (2.4/5 GHz), 2-stream 11n solution. With PCIe interface, It packs the Atheros Signal-Sustain Technology (SST) technology that enhances rate-over-range performance. Features are enabled by 802.11n including LDPC, TxBF and MLD.
Impressively increase in rate-over-range of ~+100% at short range, ~+50% at mid range and ~+25% at long range.
Bointec CPE902A consumes less power in every operation mode active TX, active RX, idle associated and sleep than other Atheros previous chipsets. It keeps the notebook and other computing platforms running
much longer on a single battery-charge, while providing TCP throughput of more than 200 Mbps when used in 2x2 mode.
Bointec CPE902A is also optimized for Atheros Direct Connect™ P2P applications. With its Fast Channel Switch (FCS) feature, the channel switching time between the 2.4 GHz and 5 GHz bands is reduced from
10 ms to as little as 1 ms.
      Product Highlight
  • Industrial grade highly integrated Single-chip, 802.11n certified wireless LAN client solution
  • IEEE 802.11a/b/g/n compliant 2.4/5 GHz dual band
  • Based on Atheros' fourth-generation 802.11n technology Full Support 2-stream MIMO performance with data rate up to 300 Mbps
  • PCI Express Half-Mini Card 1.2 compliant
  • Compliant with IEEE 802.11b, 802.11g, 802.11d, 802.11e,802.11i, and 802.11n
  • Signal-Sustain Technology (SST) rate-over-range enhancements: LDPC, MLD, TxBF
  • Conserves power with 1x1 downshift, using Dynamic MIMO Power Save
  • Driver offering includes Linux, Windows 7 and Embedded XP
  • Linux supplicant available for WPA/WPA2-PSK & 802.1x EAP
  • Customer Driver development available
  • IEEE 802.11e QOS support
  • Lead-free RoHS compliant





Product Name Industrial grade 802.11a/b/g/n mini PCI Express Card
Model Name CPE902A
Version mini PCI-E

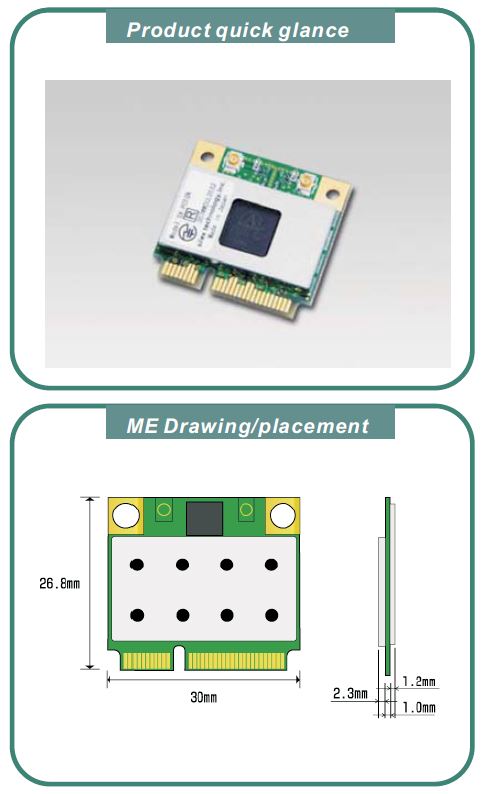

Product Picture
產品圖像
製品画像


Module (PCB-A)

Dimensions 26.80(+/-0.1mm)* 29.85(+/-0.1mm) * 3.37(+/-0.1mm)
Main Chip Atheros® AR9592
Host Interface PCI Express® Mini Card Electromechanical Specification Revision 1.2.
Operation voltage 3.3V +/ - 5%
Transfer data rate 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: @800GI(400GI)
20MHz BW 1 Nss: 65(72.2) Mbps maximal
2 Nss: 130(144.444) Mbps maximal
40MHz BW 1 Nss: 135(150) Mbps maximal
2 Nss: 270(300) Mbps maximal
RF connector 2 x SMT Ult ra-miniature coaxial connectors
TX/RX 2T2R (2x2 with MCS 0-15)

Electronics characteristics

Operating Temperature -40° ~ 85°C
Storage Temperature -40° ~ 105°C

Power Consumption

Transmit Power
consumption @ 25°C
(mA) 802.11a 802.11b 802.11g 802.11n (2.4GHz) 802.11n (5GHz)
100% TX
duty
Avg
550
Avg
405
Avg
436
Avg
365
Avg
445
This can be treated as the peak current consumption during operat ion.
Receive (typical)
Sleep (typical)



Radio Configuration & General Specifications
Center Frequency:
802.11a, na HT20: 5180 - 5825 MHz
802.11na HT40: 5190 - 5795 MHz
802.11b, g, ng HT20: 2412 - 2472 (Ch. 1 - 13)
802.11ng HT40: 2412 - 2462 (Ch. 3 - 11)
Channel Spacing:
802.11a, na HT20: 20 MHz
802.11b, g, ng HT20/HT40: 5 MHz
802.11na HT40: 40 MHz
Modulation Type:
802.11a, na OFDM (64QAM, 16QAM, QPSK, BPSK)
802.11b DSSS (CCK, DQPSK, DBPSK)
802.11g, ng DSSS-OFDM (64QAM,16QAM, QPSK,BPSK)
Standard Compliance
Device Interfaces
- IEEE802.11a/b/g/n/e/h/i
- PCI Express Mini Card v1.2 (Single definitions: PCI Express v1.1)
Regulatory
- TELEC (Japan Radio Law Rule Article 2 Sect. 1 Number 19)
- Certifiable for FCC, IC, CE and other regulatory requirements*.
Driver Support
Bointec Linux Reference Driver:
- 802.11a/b/g/n supported
- Ad hoc, Infrastructure, Access Point mode
Bointec WPA Software:
- WPA Supplicant (Station) / WPA Authenticator (AP)
- Customized based on Open Source WPA supplicant / hostapd
- WPA - TKIP/AES - PSK/EAP(TLS/TTLS/PEAP/FAST)
- WPA2 - AES - PSK/EAP (TLS/TTLS/PEAP/FAST)
- IEEE 802.1X - WEP / None - EAP (TLS/TTLS/PEAP/FAST)
Windows Embedded (Windows XP/Windows 7)
