CUB601K
(IEEE 802.11b/g/n Wi-Fi USB 工業用モジュール)


The Cost effective industrial wireless LAN solution


    Introduction of Products


BOINTEC CUB601-K is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin connector supporting USB 2.0 interface.
This is a low cost compact WLAN module designed in products with embedded system for the wireless connectivity.
This Module is designed to operate in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting.
It fully complies with IEEE802.11n draft 3.0 and IEEE802.11b/g feature.

Bointec CUB601-K implements half-duplex OFDM, CCK and DSSS base-band processing supporting IEEE 802.11b/g/n data rates.
The MAC supports the IEEE 802.11 wireless MAC protocol as well as 802.11i security, receive and transmit filtering, error recovery, and quality of service (QoS).
CUB601-K also supports software based Wi-Fi Protected Setup (WPS). Simply enable the WPS feature from the WIFI software and your device will automatically setup the WIFI security with a compatible WPS wireless router. Setting up a secure wireless network has never been so easy.

    Product Highlight


  • 1T1R Mode with 150Mbps PHY Rate for Both Transmitand Receiving.
  • Legacy and High Throughput Modes
  • 20MHz/40MHz Bandwidth
  • Reverse Direction Grant Data Flow and Frame Aggregation
  • WEP 64/128, WPA, WPA2,TKIP, AES
  • QoS-WMM, WMM-PS
  • WPS,PIN,PBC
  • Multiple BSSID Suppor
  • USB 2.0 bus, miniPCI express mechanical interface
  • International Regulation - 802.11d + h
  • Diversity, 2 IPEX antenna
  • Low Power with Advanced Power Management
  • Operating Systems - Windows XP 32/64, 2000, Vista 32/64 , Linux, Macintosh
  • Operates in 2.4GHz frequency bands.
  • Antenna configuration: one I-PEX receptacle for external antenna.
  • Drivers supporting Windows XP / Vista,2K, Mac OS X and Linux.



Product Name IEEE 802.11b/g/n Wi-Fi USB industrial module
Model Name CUB601K

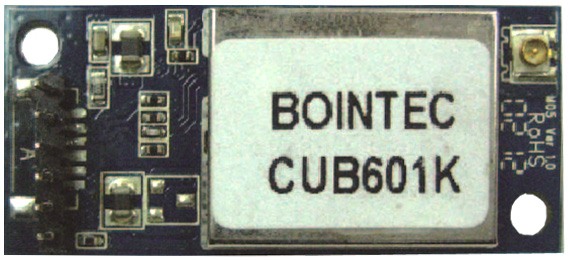

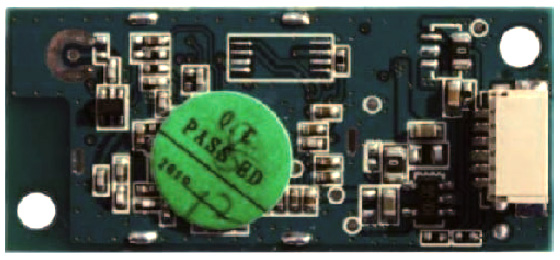

Product Picture
產品圖像
製品画像


Physical

Dimensions 40*18*5.2mm
Package Module Size, with mounting hole
Temperature Operating Temperature: -20 ~ +70°C
Storage Temperature : -30 ~ +85°C

Chipset Solution

Main Chipset Ralink RT3070 Single Chip
Host Interface USB 1.1 / 2.0
Standards Complies with IEEE 802.11b/g and complies IEEE 802.11n draft 2.0 (150Mbps wireless LAN)

Radio

Frequency Bands 2.4000 ~ 2.4835 GHz
RF Transmit Power 802.11b : 16±1.5 dBm
802.11g : 14±1.5 dBm
802.11gn, HT20 : 13±1.5 dBm @ 72Mbps
802.11g, HT40 : 11±1.5 dBm @ 150Mbps
RF Receive Sensitivity 802.11b: -76dBm , ±1.5 @ 11Mbps
802.11g: -67dBm , ±1.5 @ 54Mbps
802.11gn , HT20 : -64dBm , ±1.5 @ 72Mbps
802.11g , HT40 : -61dBm , ±1.5 @ 150Mbps
Channels 1-11 channels in base mode (US,Canada)
1-13 channels (ETSI, Japan)
1-13,14 channels (Japan)

Baseband

Spread Spectrum OFDM , DSSS
Modulations

DESS with DBPSK , DQPSK , CCK (11b)
OFDM with BPSK , QPSK , 16QAM , 64QAM (11g)
OFDM with BPSK , QPSK , 16QAM , 64QAM (11n)

Media Access Protocol CSMA/CA with ACK

Data Rate

11b 1 / 2 / 5.5 / 11 Mbps
11g

6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps

11n (20MHz) MCS0 - 7 (up to 72 Mbps)
11n (40MHz) MCS0 - 7 (up to 150 Mbps)

Software

QoS WMM , WMM-PS
Security WEP (64/128bit) / WPA / WPA2 / WPS / 802.1x / TKIP / AES / Cisco CCX Support
Drivers

Win XP 32/64 , 2000 , Vista 32/64
Linux
Macintosh
