    CUB805K
(IEEE 802.11b/g/n Wi-Fi USB 工業用モジュール)


The Cost effective industrial wireless LAN solution


    Introduction of Products


BOINTEC CUB805-K is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin connector supporting USB 2.0 /1.1 interface.
This is a small form factor and low cost compact WLAN module designed for the wireless connectivity of products with embedded system.
This module operates in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBPand RF single chip RT5370 with 150Mbps PHY rate supporting.
This module can be built-in other embedded applications such as IP Camera, IP set top box, GPS, Internet radio apparatus,it can be directly soldered on a main PCB.

Bointec CUB805-K implements half-duplex OFDM, CCK and DSSS base-band processing supporting IEEE 802.11b/g/n data rates. The MAC supports the IEEE 802.11 wireless MAC protocol as well as 802.11i security, receive and transmit filtering, error recovery, and quality of service (QoS).
CUB601-K also supports software based Wi-Fi Protected Setup (WPS). Simply enable the WPS feature from the WIFI software and your device will automatically setup the WIFI security with a compatible WPS wireless router. Setting up a secure wireless network has never been so easy.

    Product Highlight


  • 1T1R Mode with 150Mbps PHY Rate for Both Transmit and Receiving.
  • Legacy and High Throughput Modes
  • 20MHz/40MHz Bandwidth
  • Reverse Direction Grant Data Flow and Frame Aggregation
  • WEP 64/128, WPA, WPA2,TKIP, AES
  • QoS-WMM, WMM-PS
  • WPS,PIN,PBC
  • Multiple BSSID Support
  • USB 2.0 bus, miniPCI express mechanical interface
  • International Regulation - 802.11d + h
  • Diversity, 2 IPEX antenna
  • Low Power with Advanced Power Management
  • Operating Systems - Windows XP 32/64, 2000, Vista 32/64 , Linux, Macintosh, Win CE6.0/7.0



Product Name IEEE 802.11b/g/n Wi-Fi USB industrial module
Model Name CUB805K

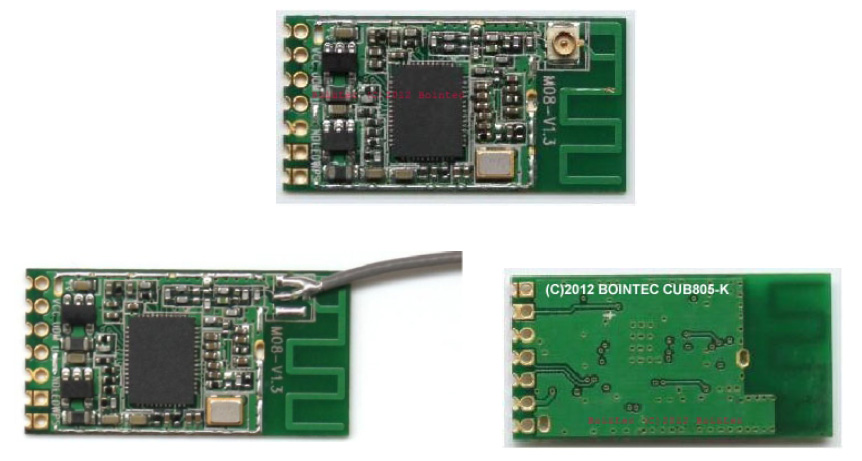

Product Picture
產品圖像
製品画像


Standards 802.11b/g/n (1T1R mode)
Operating Frequency 2.412 ~ 2.4835 GHz , the CH14 can be made upon request
Protocols 802.11b : CCK, QPSK , BPSK, 802.11g/n: OFDM
Antenna External antenna Via I-PEX MHF receptacle or Built-in On Board
Security WPA / WP2 / WPAI , 64/128/152-bit WEP , WPS
Transmit Output Power 802.11b : 17±1.0 dBm@11Mbps
802.11g : 14±1.0 dBm@ 54Mbps
802.11n: (HT20), 12±1.0 dBm
802.11n: (HT40), 12±1.0 dBm
Receive Sensitivity
(Typical value without antenna)
802.11b: -84dBm@11Mbps
802.11g: -72dBm@ 54Mbps
802.11n: (HT20), -68dBm@MSC7
802.11n: (HT40), -67dBm@MSC7
Operating Voltage 5.0V or 3.3 V ± 5%
Operating Current (OFDM, 54Mbps) 5.0V Power input, < 150mA
3.3V Power input, < 250mA
Bus Interface USB 2.0 / 1.1
USB Interface Max: 7 pins, 2.0mm pitch pin header , Or Max: 7 pins semi-hole
