ホーム > 製品情報 > SSD系製品 > Intel® SSD 530 Series

  Intel® SSD 530 Series
SSDSCKGW180A4 (180GB, M.2 80mm SATA 6Gb/s, 20nm, MLC)
SSDMCEAW240A4 (240GB, PCIe Module mSATA 6Gb/s, 20nm, MLC)



  Intel® SSD 530 Series
        Product Brief Download


  • M.2 180GB
  • mSATA 240GB

    Intel® Solid-State Drive 530 Series (M.2)         Specification Download

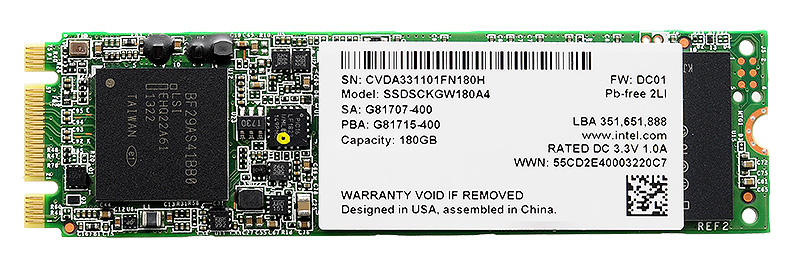

  PART NUMBER Photo
SSDSCKGW180A4
Capacity
Sequential Read/Write (up to)1 Random 4KB Read/Write (up to)2 Form Factor
180GB 6Gb/s 540 MB/s / 490 MB/s 41,000 IOPS / 80,000 IOPS M.2 (80mm)

    Intel® Solid-State Drive 530 Series (M.2)


Product Specification

  • Capacities: 180 GB
  • Components:
    − Intel® 20 nm NAND Flash Memory
    − Multi-Level Cell (MLC)
  • Form Factors: M.2 80 mm (single- and double-sided)
    − 2280-S2-B-M (80 GB and 180 GB)
    − 2280-D2-B-M (120 GB and 360 GB)
  • Thickness: up to 3.58 mm
  • Weight: < 10 grams
  • SATA 6 Gb/s Bandwidth Performance1
    (Iometer* Queue Depth 32)
    − Sustained Sequential Read: up to 540 MB/s
    − Sustained Sequential Write: up to 490 MB/s
  • Read and Write IOPS1
    (Iometer Queue Depth 32)
    − Random 4 KB Reads: up to 41,000 IOPS
    − Random 4 KB Writes: up to 80,000 IOPS2
  • Data Compression
  • AES 256-bit Encryption
  • End-to-End Data Protection
  • Compatibility
    − Intel® SSD Toolbox with Intel® SSD Optimizer
    − Intel® Data Migration Software
    − Intel® Rapid Storage Technology
    − SATA Revision 3.0
    − ACS-2 (ATA/ATAPI Command Set 2)
    − SSD Enhanced SMART ATA feature set
  • Power Management
    − 3.3 V SATA Supply Rail
    − SATA Link Power Management (LPM)
    − Device Sleep (DevSleep)
  • Power
    − Active (BAPCo MobileMark* 2007 Workload): 140 mW
    − Idle3: 55 mW
    − DevSleep: 200 μW
  • Temperature
    − Operating4: 0o C to 70o C
    − Non-Operating: -55o C to 95o C
  • Reliability
    — Uncorrectable Bit Error Rate (UBER): <1 sector per 1016 bits read
    — Mean Time Between Failure (MTBF): 1,200,000 hours
    — Shock (operating and non-operating): 1,000 G/0.5 msec
  • Vibration
    — Operating: 2.17 GRMS (5-700 Hz)
    — Non-operating: 3.13 GRMS (5-800 Hz)
  • Certifications and Declarations:
    − UL*
    − CE*
    − C-Tick*
    − BSMI*
    − KCC*
    − Microsoft* WHCK
    − VCCI*
    − SATA-IO*
  • Product Ecological Compliance
    − RoHS*
    NOTES:
  1. Performance values vary by capacity.
  2. Random 4 KB writes measured using out-of-box SSD
  3. Non-DevSleep idle power with SATA Link Power Management (LPM) enabled
  4. As measured by temperature sensor, SMART Attribute BEh. Active airflow is recommended within the system for maintaining proper device operating temperatures on heavier workloads.




   Intel® Solid-State Drive 530 Series (mSATA)        Specification Download

  PART NUMBER Photo
SSDMCEAW240A4
Capacity
Sequential Read/Write (up to)1 Random 4KB Read/Write (up to)2 Form Factor
240GB 6Gb/s 540 MB/s / 490 MB/s 41,000 IOPS / 80,000 IOPS mSATA

    Intel® Solid-State Drive 530 Series (mSATA)


Product Specification

  • Capacities: 240 GB
  • Components:
    − Intel® 20 nm NAND Flash Memory
    − Multi-Level Cell (MLC)
  • Form Factors: mSATA full size
  • Thickness: up to 3.8 mm
  • Weight: < 10 grams
  • SATA 6 Gb/s Bandwidth Performance1
    (Iometer* Queue Depth 32)
    − Sustained Sequential Read: up to 540 MB/s
    − Sustained Sequential Write: up to 490 MB/s
  • Read and Write IOPS1
    (Iometer Queue Depth 32)
    − Random 4 KB Reads: up to 41,000 IOPS
    − Random 4 KB Writes: up to 80,000 IOPS2
  • Data Compression
  • AES 256-bit Encryption
  • End-to-End Data Protection
  • Compatibility
    − Intel® SSD Toolbox with Intel® SSD Optimizer
    − Intel® Data Migration Software
    − Intel® Rapid Storage Technology
    − SATA Revision 3.0
    − ACS-2 (ATA/ATAPI Command Set 2)
    − SSD Enhanced SMART ATA feature set
  • Power Management
    − 3.3 V SATA Supply Rail
    − SATA Link Power Management (LPM)
    − Device Sleep (DevSleep)
  • Power
    − Active (BAPCo MobileMark* 2007 Workload): 140 mW
    − Idle3: 55 mW
    − DevSleep: 200 μW
  • Temperature
    − Operating4: 0o C to 70o C
    − Non-Operating: -55o C to 95o C
  • Reliability
    − Uncorrectable Bit Error Rate (UBER): <1 sector per 1016 bits read
    − Mean Time Between Failure (MTBF): 1,200,000 hours
    − Shock (operating and non-operating): 1,000 G/0.5 msec
  • Vibration
    − Operating: 2.17 GRMS (5-700 Hz)
    − Non-operating: 3.13 GRMS (5-800 Hz)
  • Certifications and Declarations:
    − UL*
    − CE*
    − C-Tick*
    − BSMI*
    − KCC*
    − Microsoft* WHCK (Windows* 7 and 8)
    − VCCI*
    − SATA-IO*
  • Product Ecological Compliance
    − RoHS*
    NOTES:
  1. Performance values vary by capacity.
  2. Random 4 KB writes measured using out-of-box SSD
  3. Non-DevSleep idle power with SATA Link Power Management (LPM) enabled
  4. As measured by temperature sensor, SMART Attribute BEh. Active airflow is recommended within the system for maintaining proper device operating temperatures on heavier workloads.
