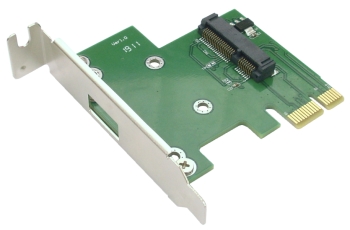

ADP (MiniCard用PCIeアダプタ)


Introduction:
The PCI-E Mini Card passive adapter is designed for desktop PCs that convert Mini-Card to standard PCI-Express 1x slot.
You can insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector



    Specification:

  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • PCI Express Card Electromechanical Specification 2.0
  • Standard Height PCI Express Add-in Card.
  • Low Profile PCI Express Add-in Card.
  • Full/ Half -Mini Card dimension.

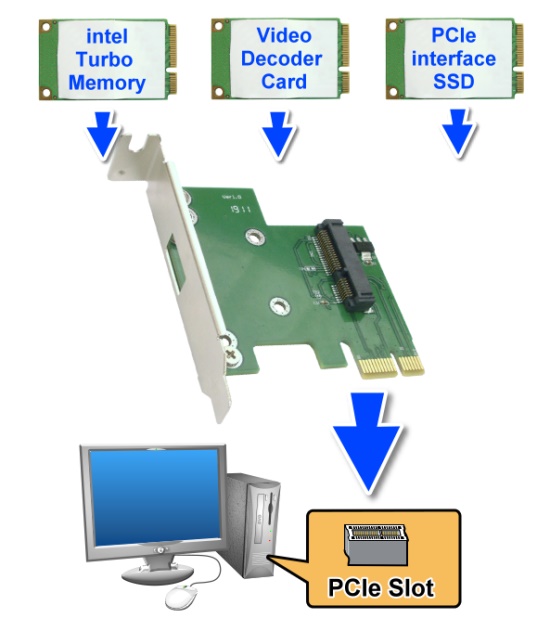

  • Supports all of Mini-Cards such as SSD( PCIe interface), Video Decoder, Turbo memory... Mini Card to desktop PC.
Notice:
*ADP support standard mPCIe minicard. Can't support custom SATA/PATA SSD minicard.
*ADP is designed for engineering test tool not for end user using.

    System Requirements:

  • desktop PC with an available PCIe slot.
  • Windows 7 (32-/64-bit) Vista (32-/64-bit)
  • At least one Serial ATA hard drive
  • One of the following:
    *Intel® ICH10R Serial ATA RAID/AHCI Controller and 4 GB or 2 GB of Intel® NAND Flash Memory.
    *intel® CH9R Serial ATA RAID/AHCI Controller and 1 GB or 512 MB of Intel® NAND Flash Memory.


ADP Package Contents
ADP (MiniCard用PCIeアダプタ) x1
Screw x2
JP0875 ( Standard Height PCI express bracket ) x1


Documents Download

Brief  Taiwan  Taiwan 2  China Mirror
Dimension  Taiwan  Taiwan 2  China Mirror
Schematic  Taiwan  Taiwan 2  China Mirror
