ECCBA-C01 (CardBus PC Card to USB 2.0 ExpressCard/34 Adapter)

Introduction:

Proudly presents you a perfect solution for converting the 34mm USB mode ExpressCard to standard CardBus PC Card.

ECCBA-C01 accepts 34mm USB mode ExpressCard and supports Hi-Speed USB max 480 Mb/s data rate.  It also allows the Hot-Plug and Hot-Swap features of ExpressCard.

ECCBA-C01 is a very convenient device for any Notebook or PC equipped with CardBus PC Card socket.  With this adapter, using any USB Mode ExpressCard/34 to extend more applications would become quick and easy, even without ExpressCard socket.


Features



Specifications

Input Socket USB 2.0 ExpressCard / 34
Output Interface 32-bit CardBus PC Card
Data Transfer Rate 480 Mbps (Max.)
Power Output 1.5V / (600mA, Max), 3.3V / (600mA, Max)
Supporting OS Windows 2000(SP4) / XP / VISTA
Safety Approval CE / FCC / BSMI / RoHs
Power Consumption Up to 2.2W
Dimensions 97.8 mm(L)* 54.0 mm(W)* 9.0 mm(H)

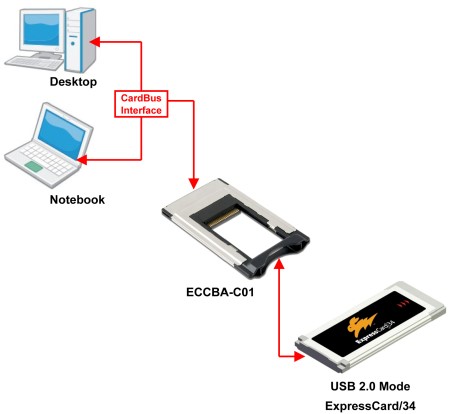

Application Diagram
