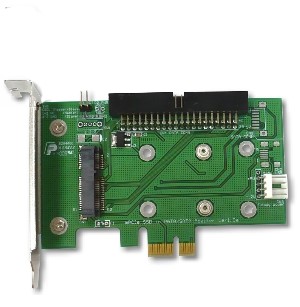

MP2S-P (mPCIe SSD to PATA adapter ver1.0a)

Introduction:

MP2S-P is passive adapter design for Desktop SSD solution. That converts custom mPCIe SSD to PATA connector on main-board.

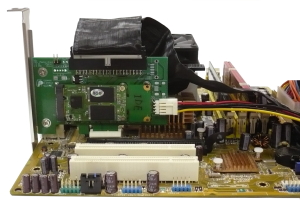

The adapter will allow you to use mPCIe SSD card as a hard drive on your PATA/IDE motherboard.

MP2S-PMP2S-P



Features



Notice:
The SSD module is controlled via the PATA interface to the main-board. And not the PCIE bus . It only requires power from the PCIE bus or Floppy connector.
As a result PCIE connector existing nets on the PCB which are power connecting only.

Almost mPCIe SSD just only  support master mode. So please setting your another IDE device on slave mode if you have. Such as HDD/CD-ROM.


Package Contents:
MP2S-P (mPCIe SSD to PATA adapter ver1.0a) x1 External 5V/12V power supply x1
PATA 80pin cable x1 JP0155(Standard Height PCI express bracket) x1
Screw x2



System Requirements



MP2S, SSDMA, SSDMB for SSD minicard comparison                 2010/Mar/15
Functions comparison

MP2S-P ver1.0a

MP2S ver 1.0b

SSDMA

SSDMB

Interface

PATA

PATA / SATA

USB2.0

USB3.0

PATA SSD minicard support

Yes

Yes

Yes

No

SATA SSD minicard support

No

Yes

Yes

Yes

Access LED

external

Yes

Yes

Yes

Appearance

Add-on card

Add-on card

Enclosure

Enclosure

MiniCard dimension support

Full/Custom

Full/Custom

Full

Full




Documents Download
Brief (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
Dimension (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
Schematic (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
User manual(PDF):  Taiwan 1  Taiwan 2 Mirror
Compatibility List(PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
Comparison List(PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
