    M2E

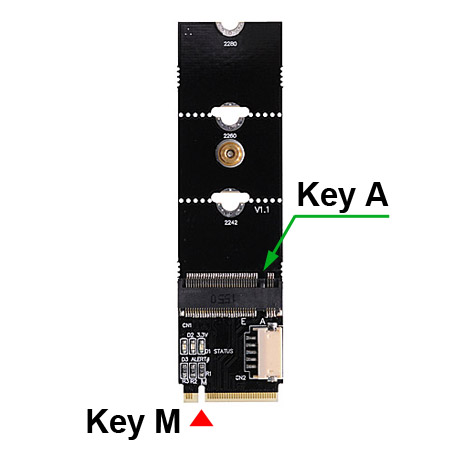

M.2 Key A Wireless Card - M.2 Key Mアダプタ







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Buy It Now


First Impression


The PCI-E M.2 Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard to USB 5pin Header or standard PCI-Express 1x slot.

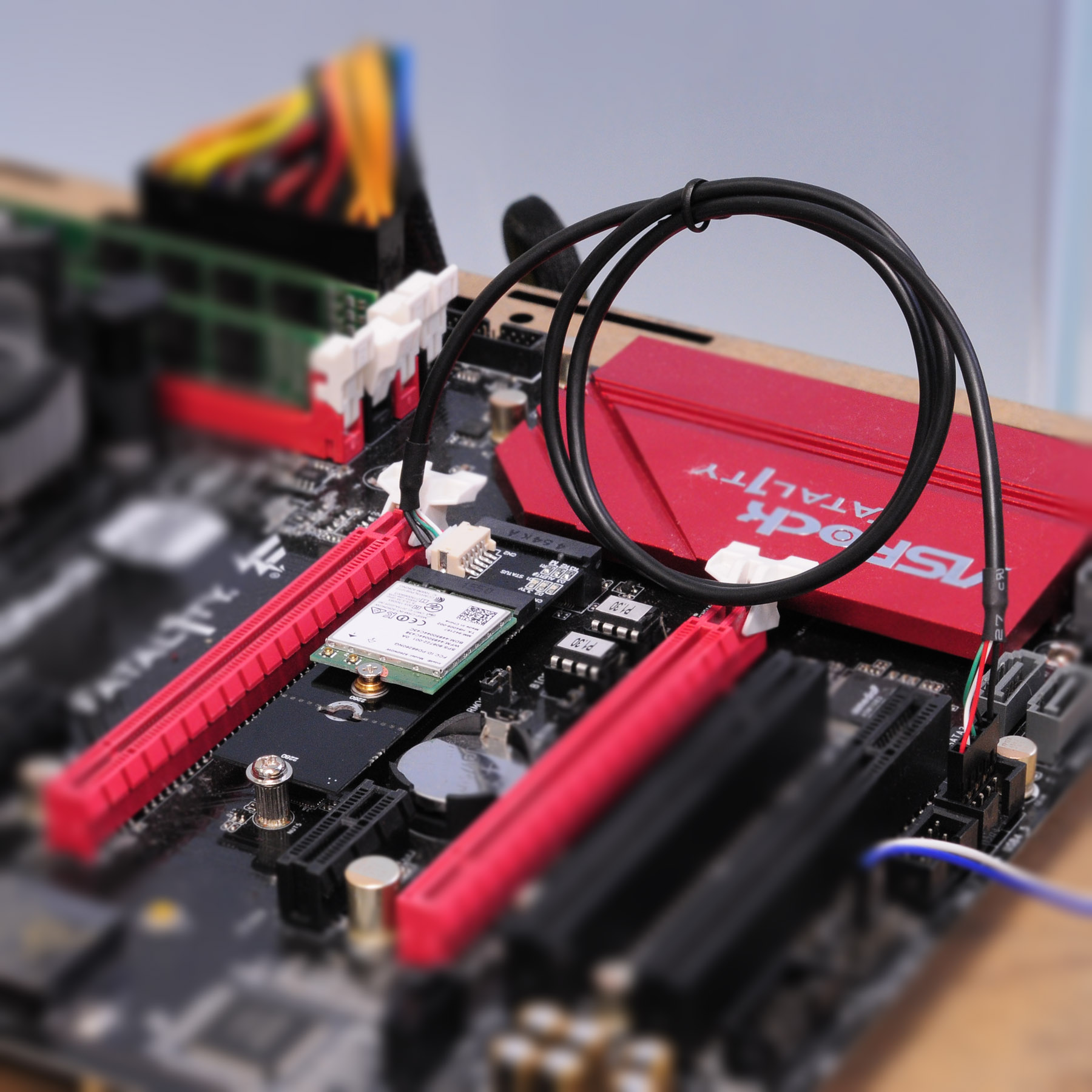

You can insert your USB type M.2 card to this adapter then plug to USB 5pin header port through USB cable.
Or insert your PCI-E type M.2 card into this adapter then insert to PCI-E 1x connector.

Also, Wireless & Bluetooth Combo card such as Intel® Dual Band Wireless-AC 8260 can be used for supporting both Wireless by PCIe and Bluetooth by USB at the same time.


      Specification


  • Supports system bus interface: PCIe & USB2.0
  • Support PCIe M.2 Card :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
  • Wireless Status,Alert, Power LED
  • operating systems and does not require any software drivers



      Notice


  • No driver CD accompanied.
  • Make sure you download and install the proper driver before you install the adapter

同梱品一覧


M2E

M2E
(M.2 Key A Wireless Card to M.2 Key M Adapter) x1
Y05-U02-060
(USB Dupont to 5PIN Cable) x1
G0030
(Flat-Head M2x1.9 Screw) x2

G0040
(Flat-Head M3x3 Screw) x1
