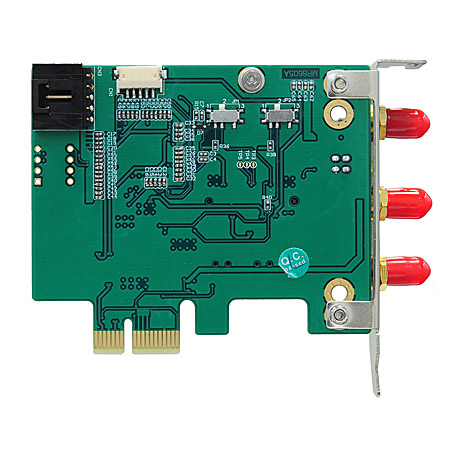

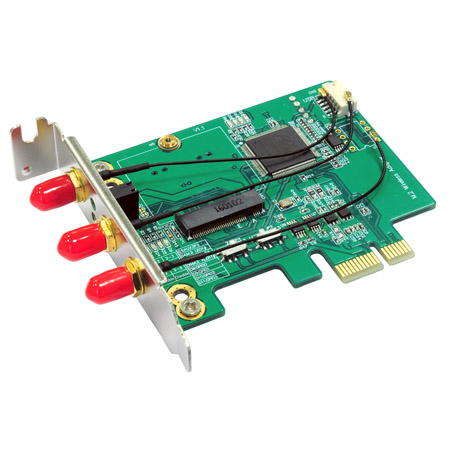

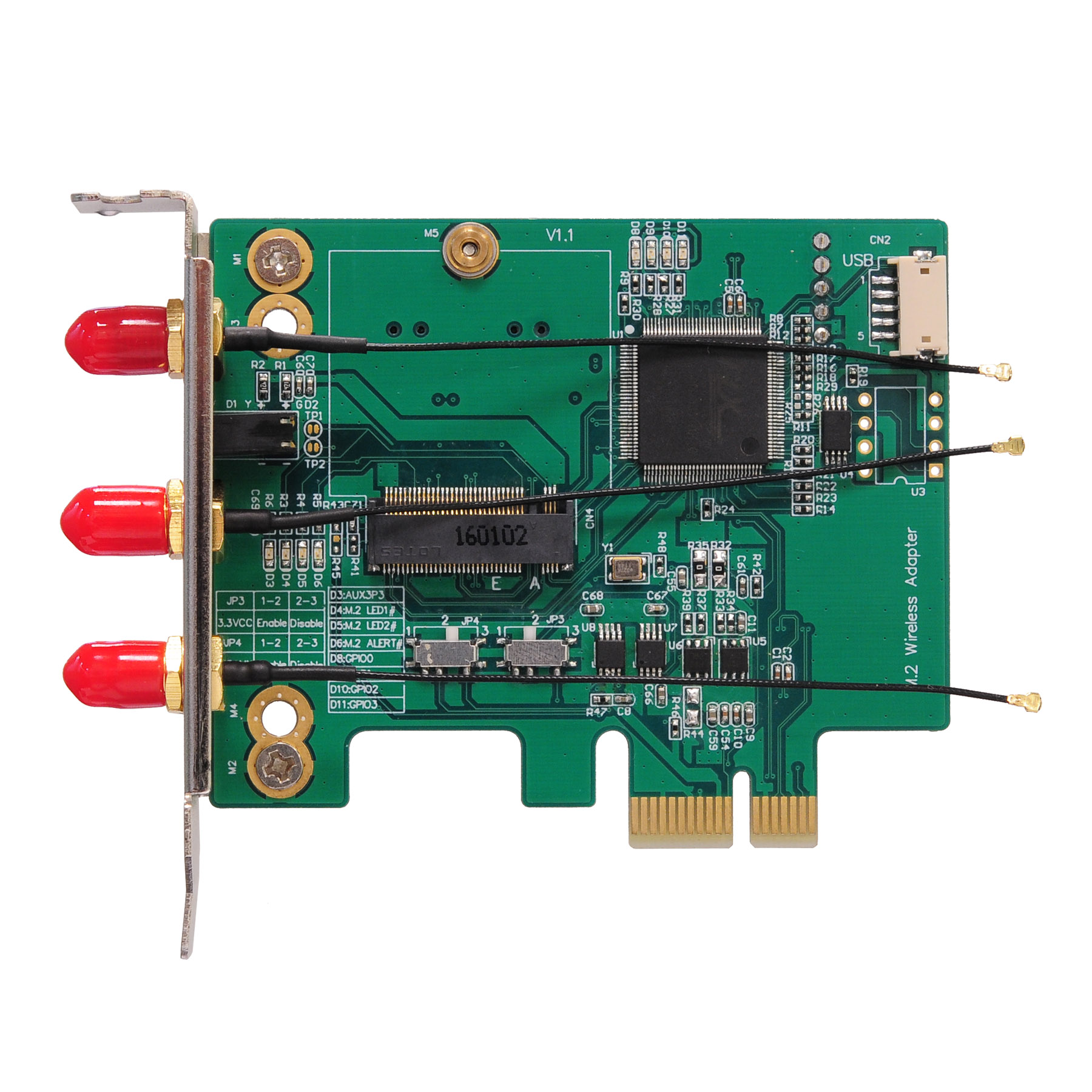

    MP8605A
M.2 Key A Wireless Cardアダプタ







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Buy It Now


First Impression

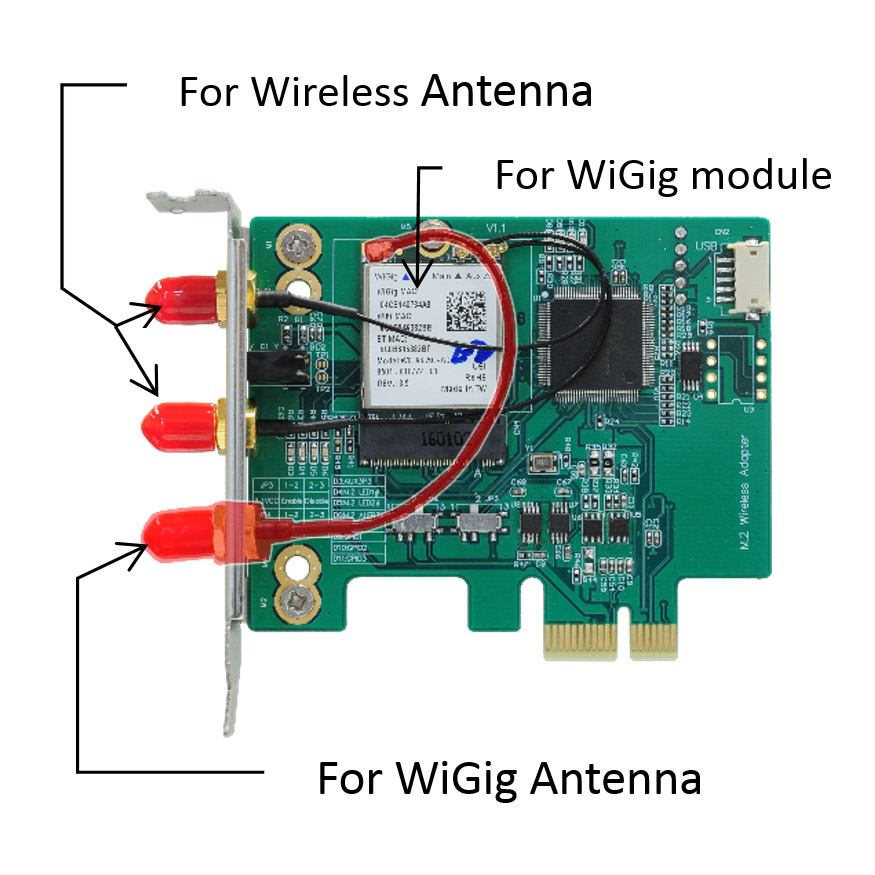

The M.2 adapter is designed for Tri-Band Wireless-AC delivers high-speed, 60GHz WiGig (802.11ad) Bluetooth application on desktop PCs that convert M.2 Wireless Card to standard PCI-Express 1x

Also, Wireless & Bluetooth Combo M.2 card such as Intel® Tri-Band Wireless-AC 18260 can be used for supporting both Wireless-AC, Wireless-AD by PCIe and Bluetooth by USB at the same time.


      Specification


  • PCB Dimension: 80 x 70 x 10 mm (L x W x H)
  • Weight: 80g
  • Operating temperature: 0º to +70° C
  • M.2 Key A or A+E Card to PCI Express adapter
  • Supports system bus interface: PCIe & USB2.0.
  • Support PCIe M.2 Card 2230 / 3030Key A / A+E:
    IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac, 802.11ad
  • LED: STATUS, POWER, and ALERT#
  • MHF4 to SMA / RP-SMA pigtail Wireless RF cable adapter
  • MP8605A: Transparent to operating systems and does not require any software drivers
  • Support M.2 Cards List
    Intel® 17265NGW, 18265NGW
    Qualcomm® Atheros W0096-AC+AD, Wilocity Wil6200



      Notice


  • No driver CD accompanied.
  • Make sure you download and install the Wireless module’s driver before you install the adapter.

Web-shop


MP8605A
販売価格: USD 90.

MP8605A
(M.2 Key A Wireless Cardアダプタ) x1
Y05-U09-060
(ノッチ付USB2.0用5ピン端子ヘッダーケーブル) x1
JP0593
(アンテナ固定穴x4付PCIe標準高プラケット x1

Gasket x2
G0030
(Flat-Head M2x1.9 Screw) x1

Buy Related Items


intel® 17265NGW
Antenna-M 10041R
RF6A008B
RFAA008B
