   MS2M
mSATA SSD to SATA RAID Adapter







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Web-shop




        Function


  • Allows user to use standard SATA-IO mSATA SSD to SATA hard drive in the Desktop.
  • Support Hi-Speed SATA3 / 6Gbps mass storage interface.
  • Support software RAID 0/1/5/10.
  • Support OS RAID and Mother-Board RAID 0/1/5/10.
  • PCB board can be stacking.

        Specifications


  • Serial ATA Spec. Reversion 3.2
  • Compatible with Full/Half card dimension size of MINI SATA SSD Module.





        System Requirements


  • Desktop PC with an available SATA slot.
  • Available PCIe slot/2.5” hard drive space/3.5”hard drive space.
  • Windows, Vista 32/64, Windows 7, Windows 8, Windows 10 Windows server 2008/2010/2012 or Linux.

        Certification


  • RoHs

        Operating Temperature


  • 0 ~ 70℃

    Web-shop

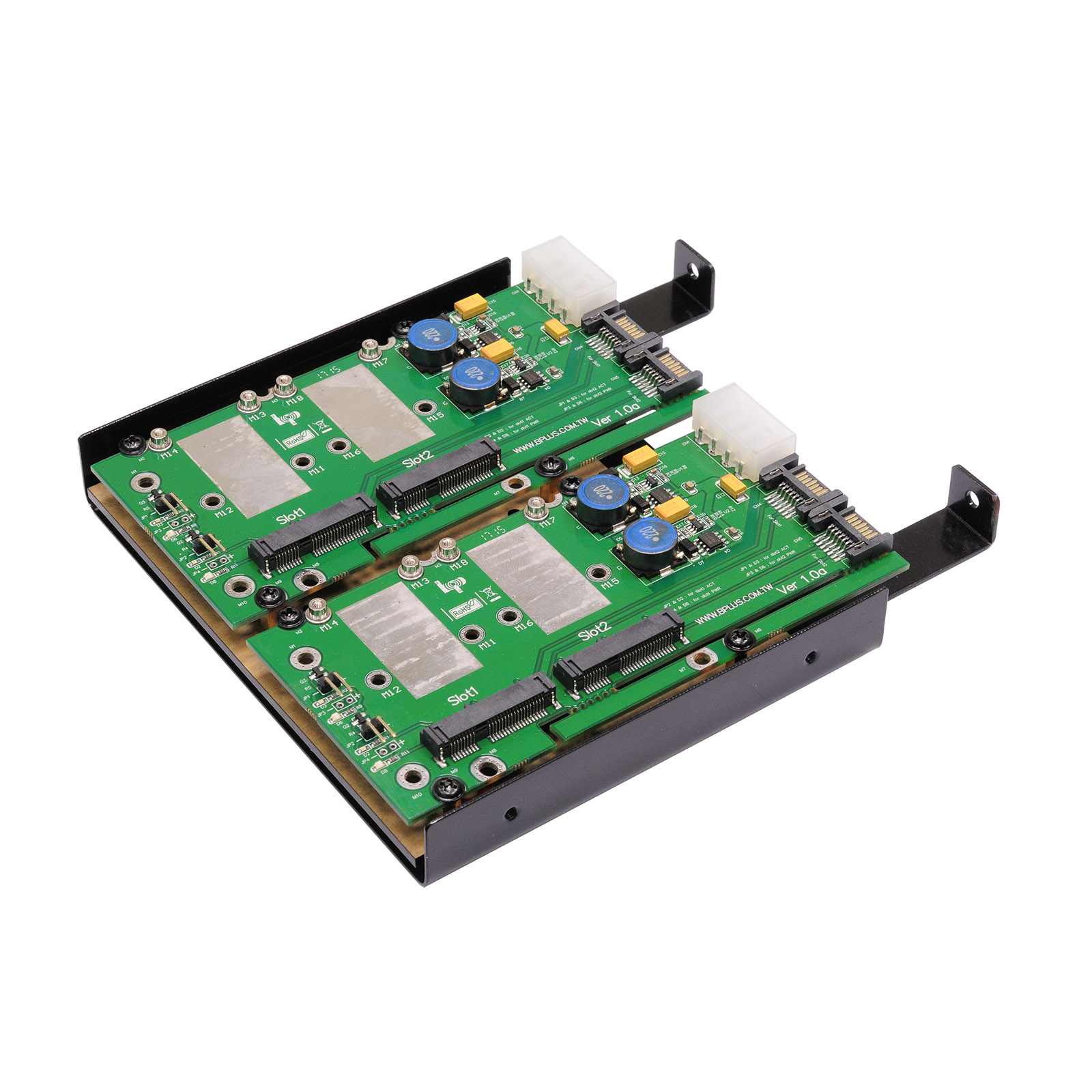

MS2M-CT45
Unit price: USD 55
MS2M-CT45
(Quad mSATA to SATA RAID Adapter) x1

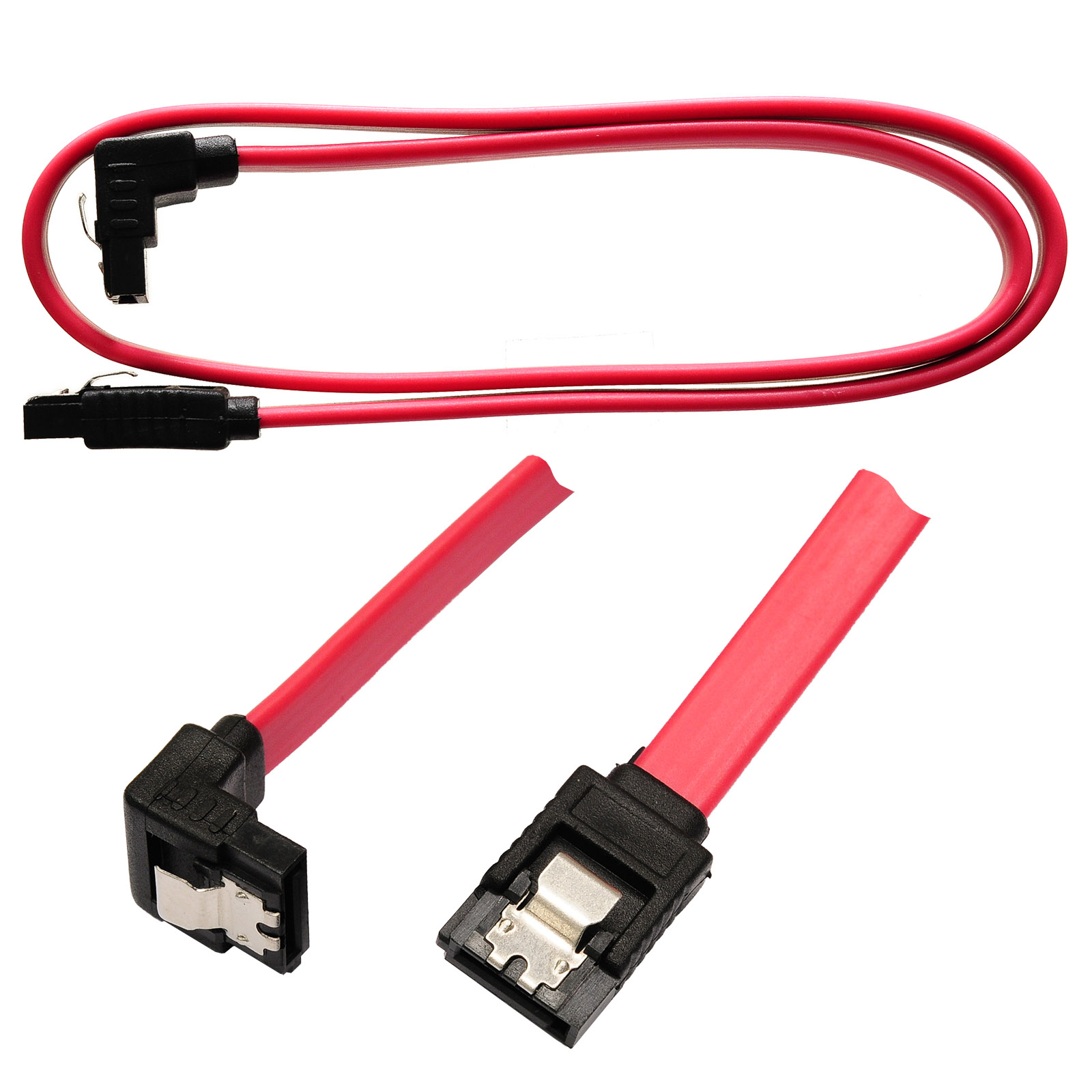

Y07-S04-040
(SATA3 cable 40cm) x4

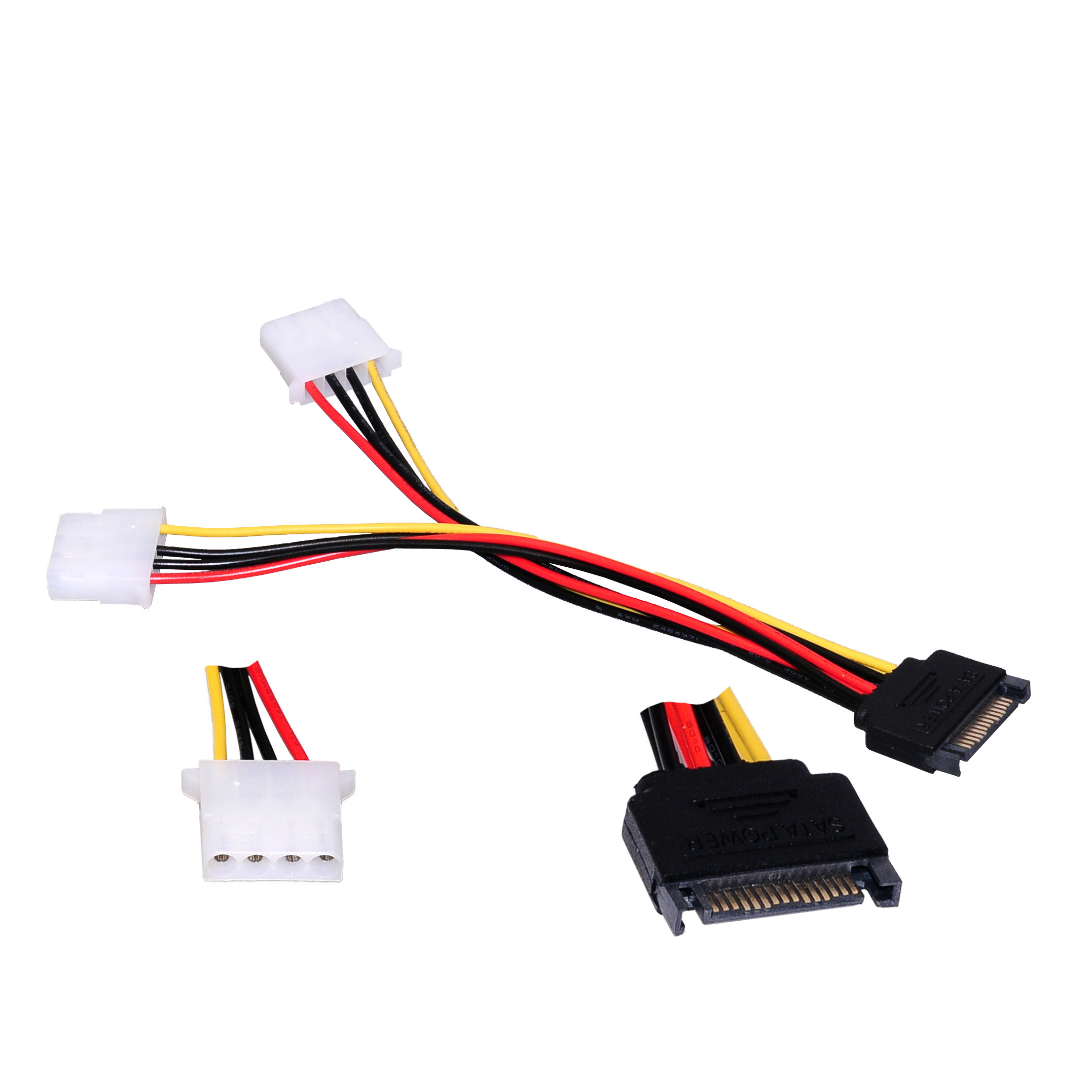

Y15-V03-015
(15 Pin SATA Male to 2 IDE Splitter Female Power Cable 15cm) x2
Screw x8

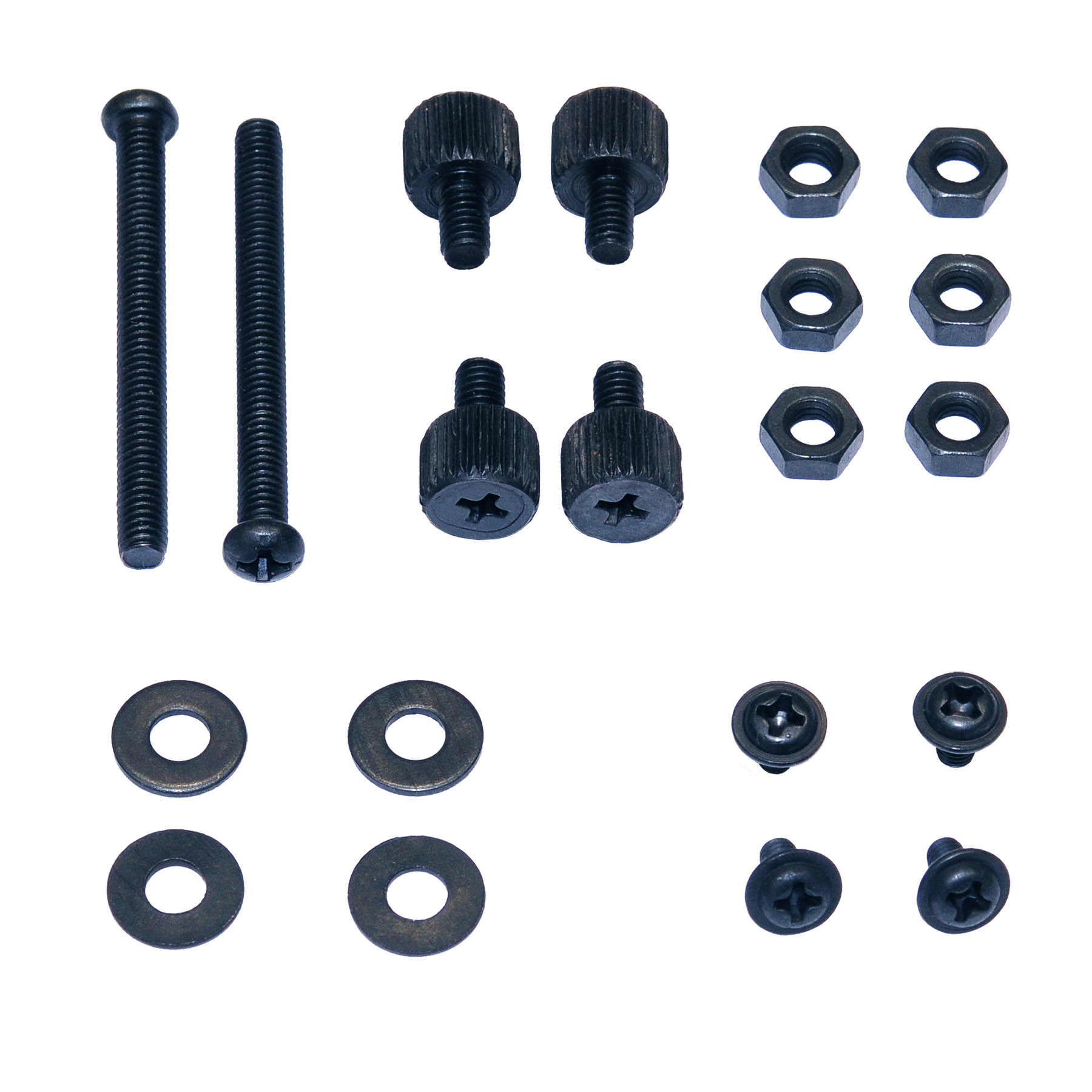

CT45 Accessory Screw Kit x1

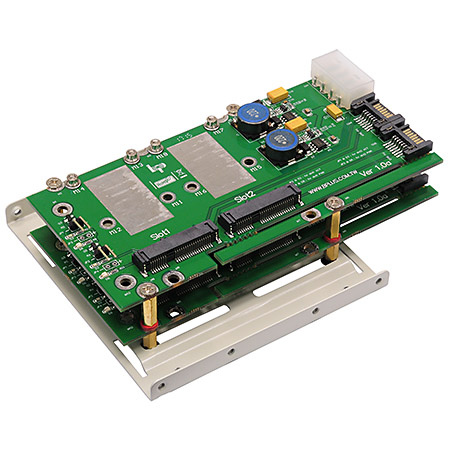

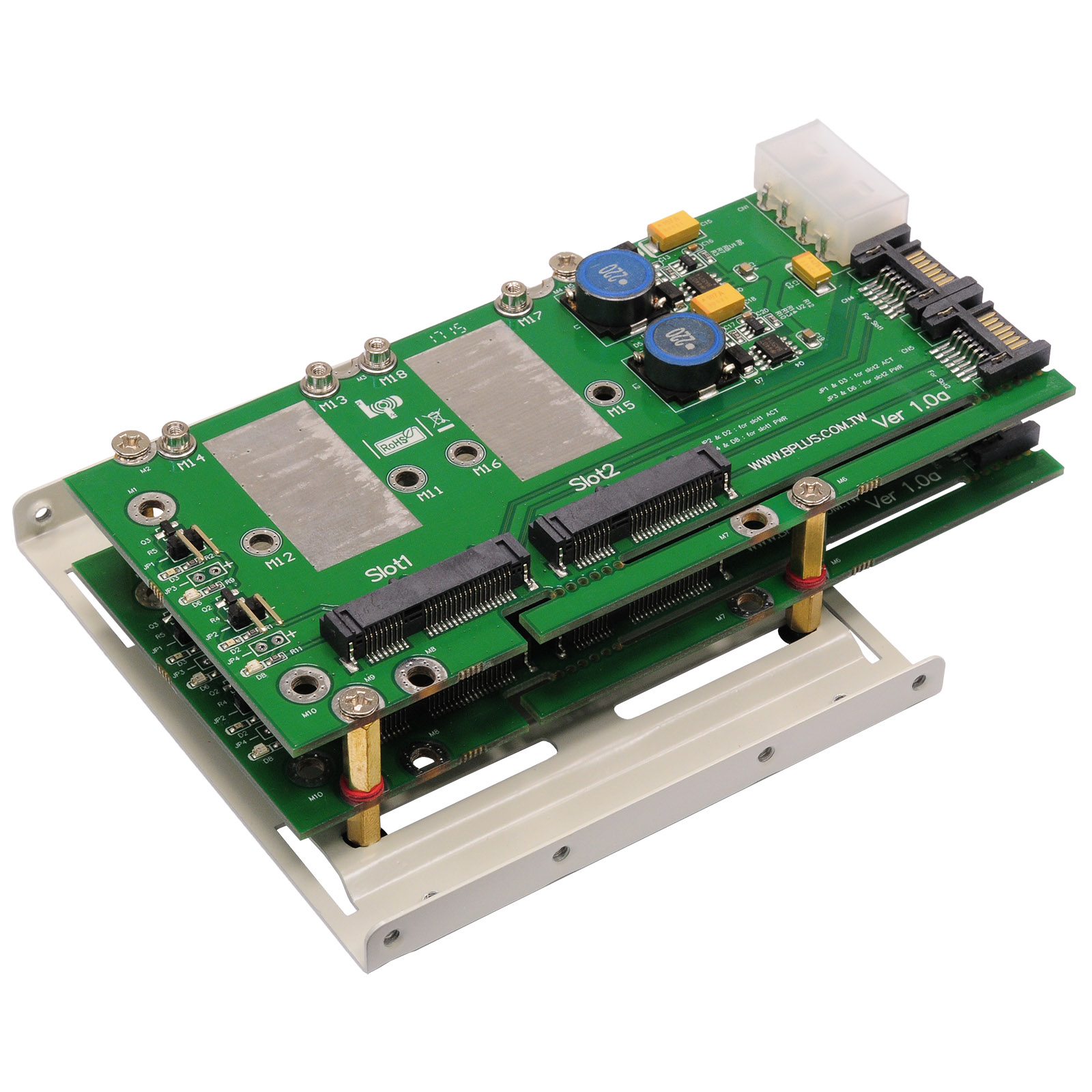

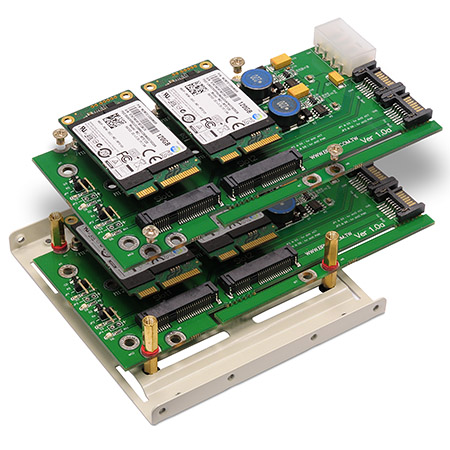

MS2M-CT43
Unit price: USD 55
MS2M-CT43
(Quad mSATA to SATA RAID Adapter) x1
Y07-S04-040
(SATA3 cable 40cm) x4
Y15-V03-015
(15 Pin SATA Male to 2 IDE Splitter Female Power Cable 15cm) x2
Screw x8
CT43 Screw x8

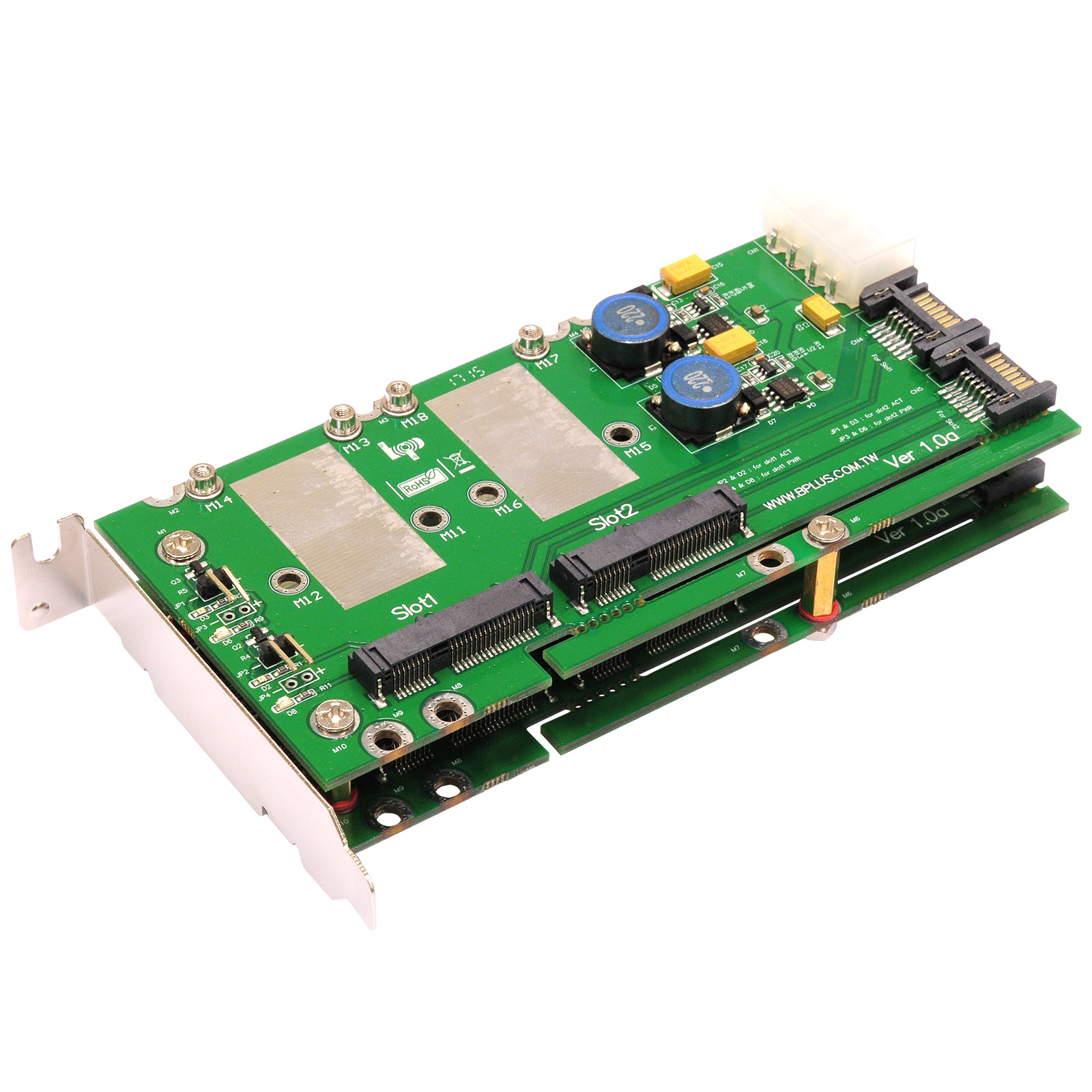

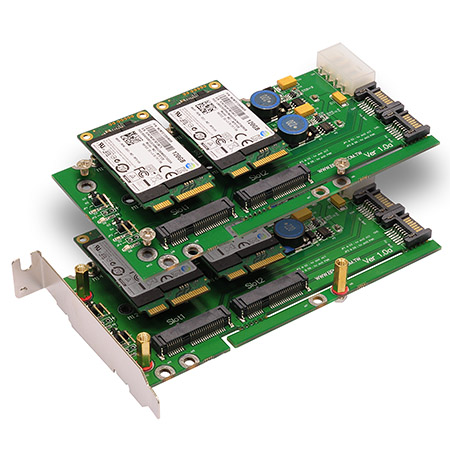

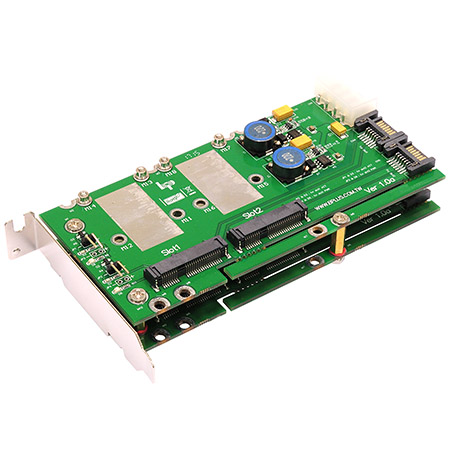

MS2M-4
Unit price: USD 45
MS2M-4
(Quad mSATA to SATA RAID Adapter) x1
Y07-S04-040
(SATA3 cable 40cm) x4
Y15-V03-015
(15 Pin SATA Male to 2 IDE Splitter Female Power Cable 15cm) x2
JP0155
(Standard Height PCI express bracket) x1
Screw x8

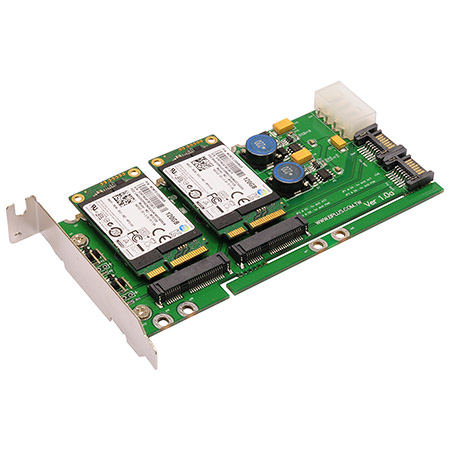

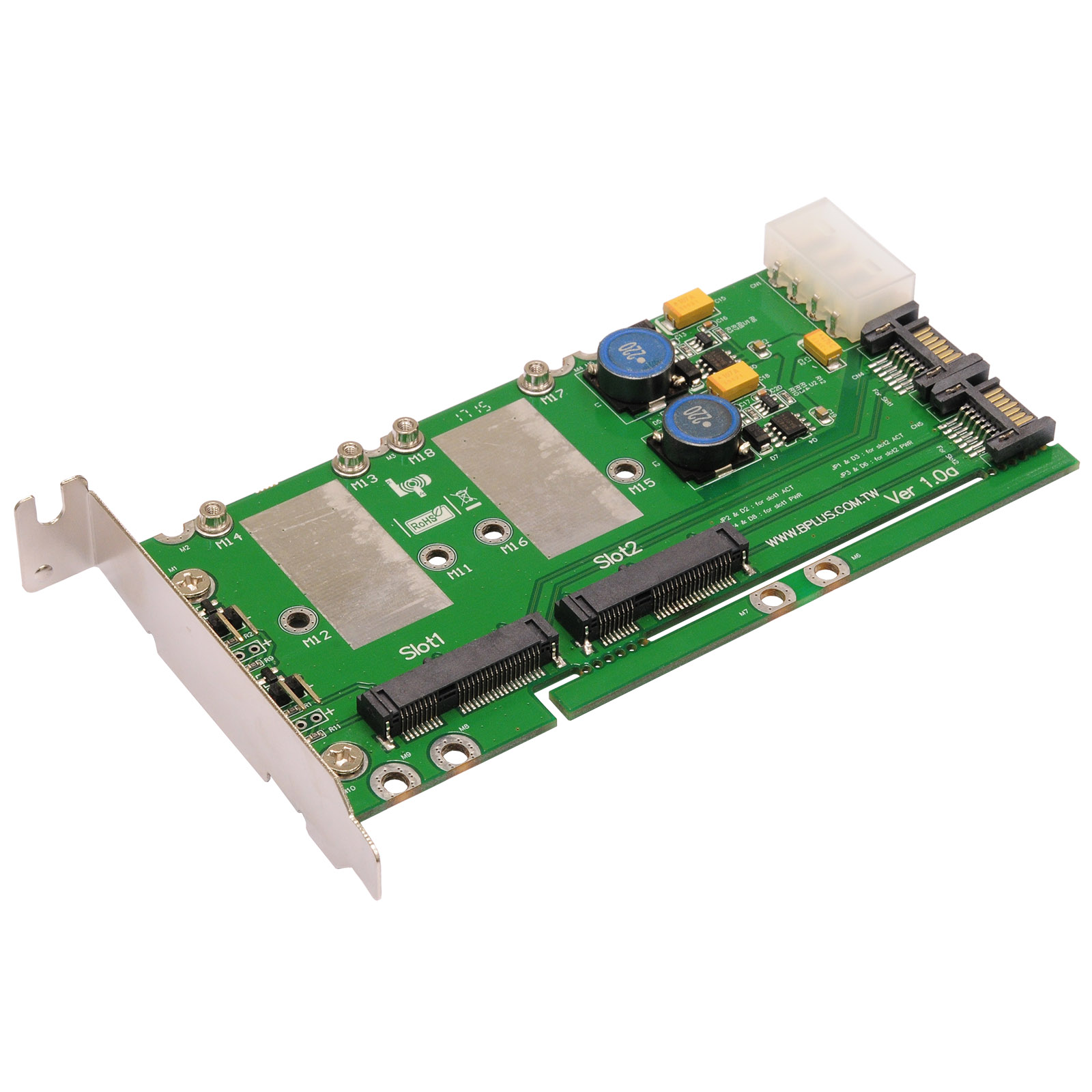

MS2M-2
Unit price: USD 30
MS2M-2
(Dual mSATA to SATA RAID Adapter) x1
Y07-S04-040
(SATA3 cable 40cm) x2
Y15-V03-015
(15 Pin SATA Male to 2 IDE Splitter Female Power Cable 15cm) x1
JP0155
(Standard Height PCI express bracket) x1
Screw x4
