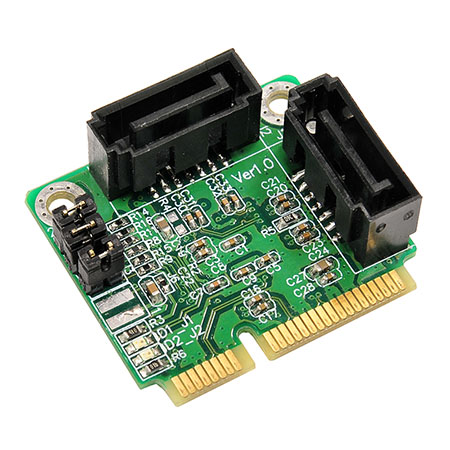

	PM1061R (RAID機能 PCIe Gen2接続MiniCard - SATA IIIアダプタ)

Brief	Taiwan 1	Taiwan 2	China
Dimension	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
User Guide	Taiwan 1	Taiwan 2	China
Buy It Now

概要

The SATA with Hardware RAID engine to mPCIe adapter is a converter tool for PCI-E interface.

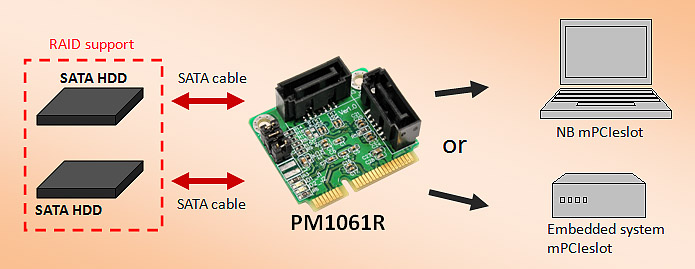

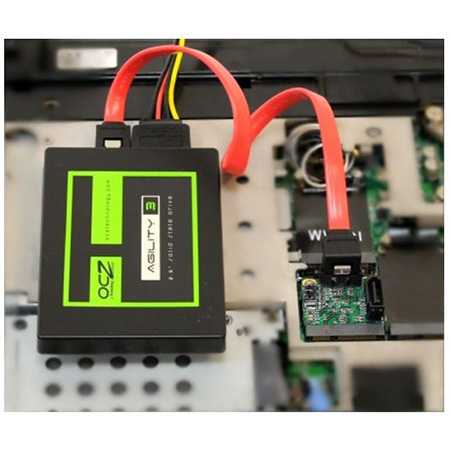

This module allows you connect any two of SATA III devices by RAID such as mirror or striping mode to the PCI Express Gen2 mini card slot through standard SATA cable.

Half size mPCIe module can be used in full size mPCIe slot with bundled metal baffle.

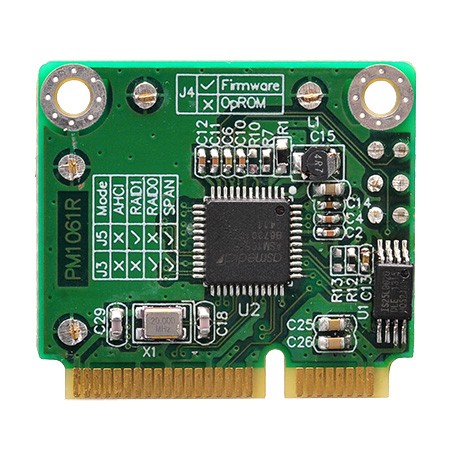

Strapping for RAID mode
J3	J5	RAID mode
0	0	AHCI
0	1	RAID1
1	0	RAID0
1	1	SPAN

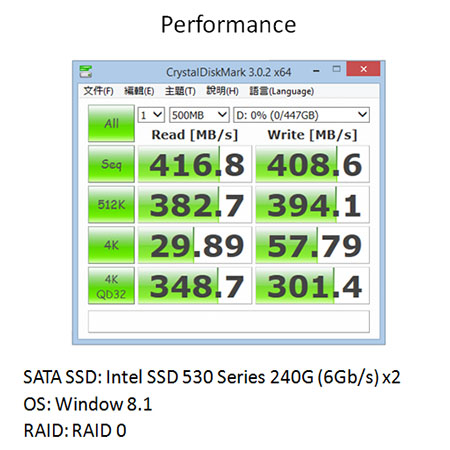

仕様一覧

RAID機能mPCIeスロットに2つのSATA3ポートを増設
ASM1061Rコントローラ: 高い互換性・高性能
1レーンPCI Express Gen2 (5Gbps)
2ポートSerial ATA III (6Gbps)
Native Command Queuing (NCQ)サポート
ポートマルチプライヤ対応
Dimension: DxWxH : 30 x 26.8 x 11.4 mm
Operating Temperature : 0 ~ 70℃
RAID mode :
AHCI/JBOD (Port Multiplier ),
RAID0 (Striping/Fast),
RAID1(Mirror/Safe), Span (Big)

サポートOS

標準AHCIドライバを同梱するすべてのOS (例. Windows, Linux OS)

Compliance

Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.3準拠
- AHCIドライバをサポートするすべてのOSで動作可能
PCI Express Base Spec. Revision 2.0準拠: 5.0Gbps・1レーンPCIeバス
Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i のSerial ATA III: Electrical Spec. Revision準拠
2ポートの 6.0Gbps SATA III
