    U2AM
(OLED USB detector voltmeter ammeter power capacity tester meter)







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Web-Shop

    Features

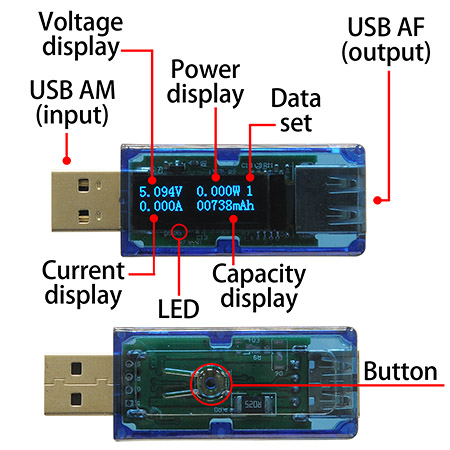

  • This is the mini USB meter. It can measure voltage, current, power and capacity.
  • It adopts the OLED screen, it can clearly display all the data. And it display two colors font, white and blue.
  • It has three functions:Screen rotation,Power-down storage andOver-voltage and Under-voltage reminding.

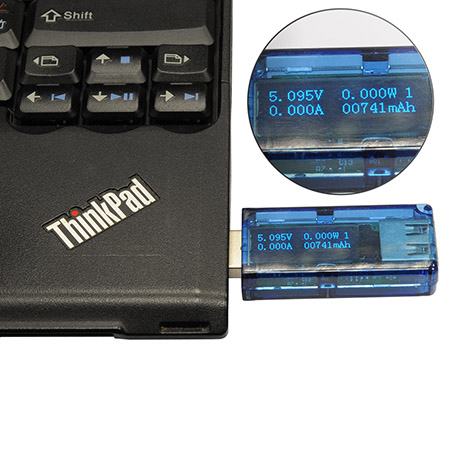

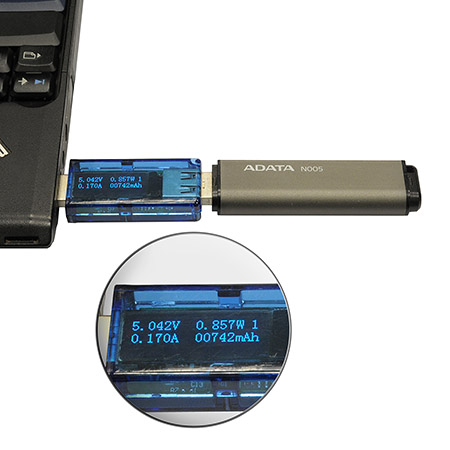

  • It forbid for being used for inductive load, eg: the load with motor and fan. it can be used digital products, eg: mobile phone,power bank,USB flash drive and etc..



    Technical Parameters


  • Voltage range:DC3.500 -7.000V
  • Voltage accuracy:± (0.2% + 3words)
  • Current range:DC0.000-3.000A
  • Current accuracy:± (0.8% + 3words)
  • Capacity accumulation:0-99999mA; 0-700Wh
  • Capacity resolution: 1mAh; 1mWh

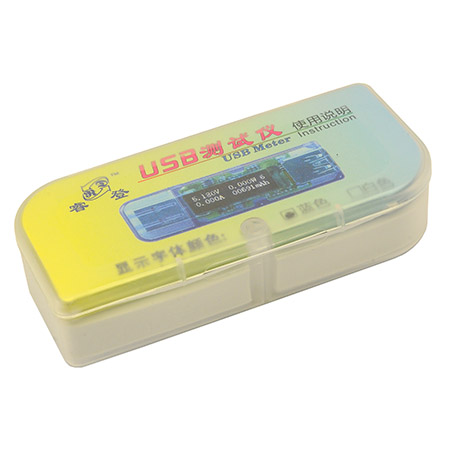

  • Product Weight:10g (package 30g)
  • Idle discharge: about 10mA
  • Display mode:0.91" OLED Screen
  • Physical size:57 x 20 x 10mm (L*W* H)
  • Update rate: 2 times/s

Voltage range

DC3.500-7.000V

Voltage accuracy

±(0.2%+3 digit)

Current range

DC0.000-3.000A

Current accuracy

±(0.8%+3 digit)

Capacity accumulation

0-99999mAh/
0-700Wh

Capacity resolution

1mAh/1mWh

Product Weight

10g (package 30g)

Product size

57mm*20mm*10mm

Update rate

2s /time

Display font color

Blue/White

Other function

  • Current zero calibration function
  • Over-voltage and Under-voltage reminding function
  • Capacity stored function
  • Capacity unit switch function
  • Screen rotation function
  • Shut-down screen function
  • Power-down storage
  • 0-9 groups data set Capacity stored function
  • Current zero calibration function
