   U2M2A
Dual CDMA/LTE module to USB outdoor adapter







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Web-shop


    概要

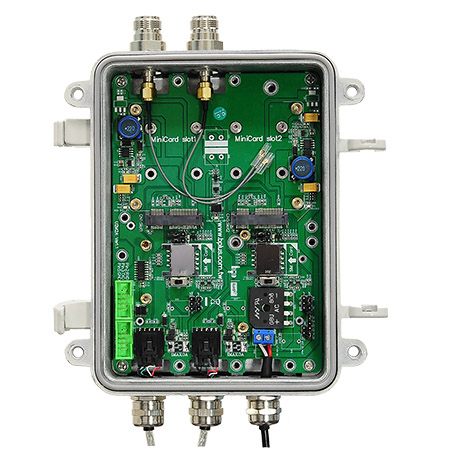

The U2M2A adapter is designed for desktop/Embedded system that convert 3G/4G wireless Mini-Card to USB port.

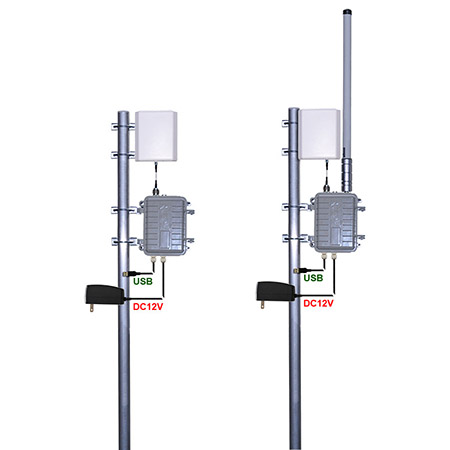

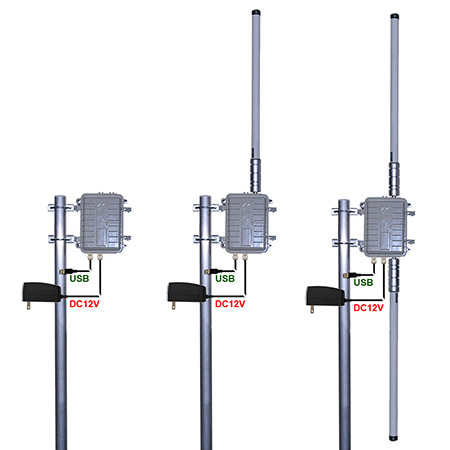

You can insert your USB type Mini card such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port through USB cable. It support dual CDMA/LTE module to USB interface, if the USB power is not enough, it also support 12V power input.

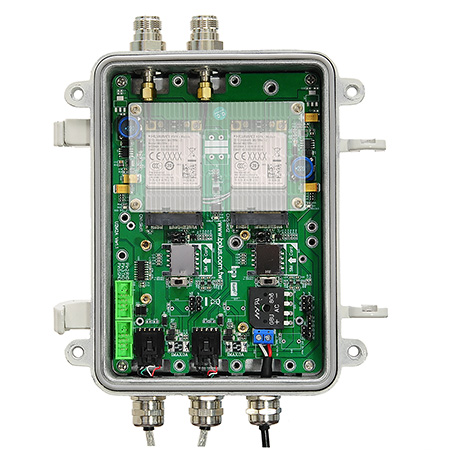

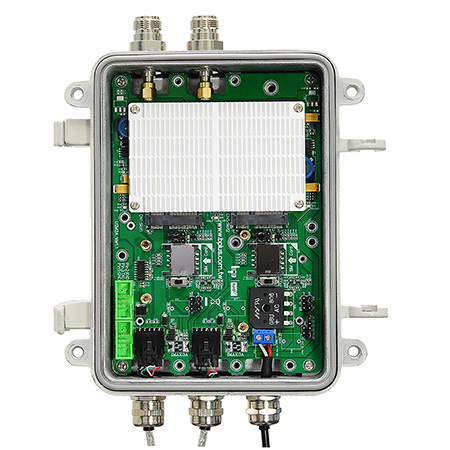

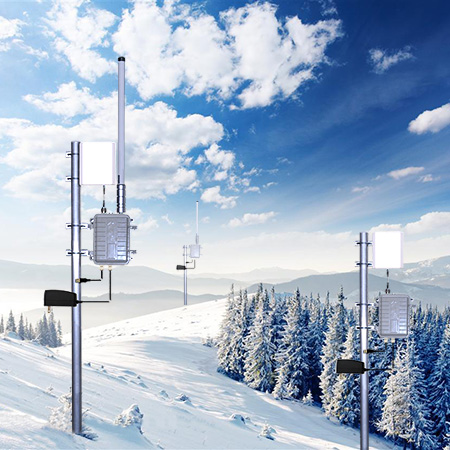

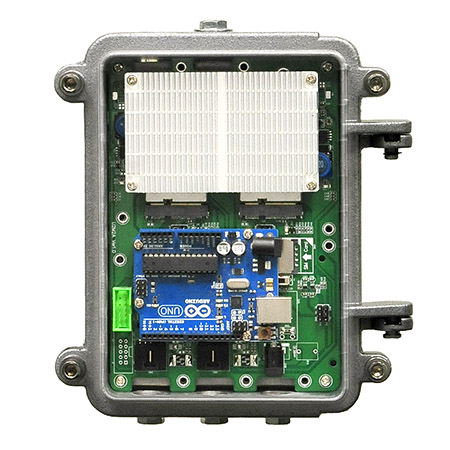

U2M2A is a Dual CDMA/LTE module to USB outdoor adapter, the cable of it can OEM(MAX 30M), there is a shield box to protect it. The shield box can make protect module in the rainy day, Because it uses the waterproof design. It can make sure U2M2A Adapter work normal in the outdoor.




        機能一覧


  • USB connection to desktop or notebook PC
  • Supports USB interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC.
  • Support SIM card connector.
  • Support U.FL/IPX to N (16M) RF cable adapter
  • Antenna Products (Click for Bplus Antenna Comparison link)
  • Linux S/W support
  • 3G/LTE module UART output support.
  • Arduino shield support.

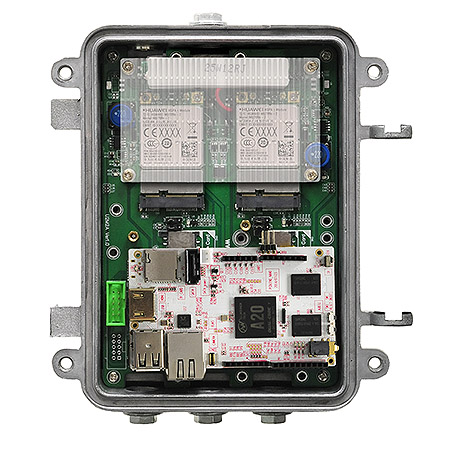

  • PCduino shield support.



        仕様一覧


  • Case Dimension: 180 x 130 x 70 mm (L x W x H)
  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • Universal Serial Bus Specification Revision 2.0
  • Full / Half -Mini Card dimension.
  • SIM Connector for CDMA HSDPA/HSUPA,UMTS, GSM, GPRS, EDGE
  • Operating temperature -40 ~ 85℃
  • USB cable length maximum of 30M.
  • Waterproof: IP66

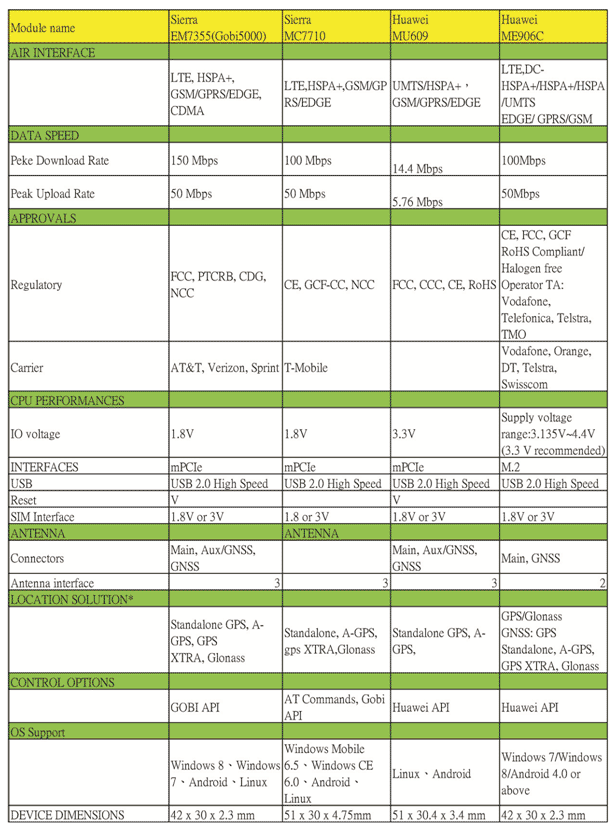

    Module Compatibility
