   U31MR
2個のmSATA SSD - USB3.1 Type Cアダプタ







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China
Test Report Taiwan 1 Taiwan 2 China
RAID SETTING SOP Taiwan 1 Taiwan 2 China
Buy It Now


    概要

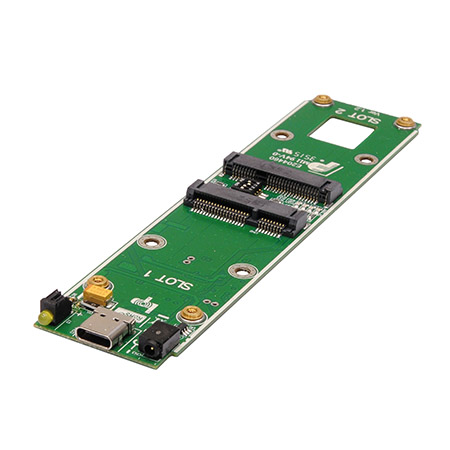

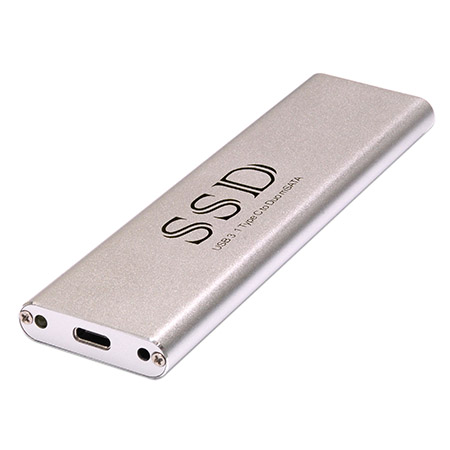

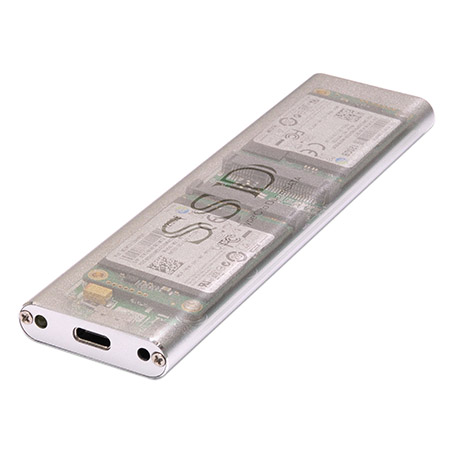

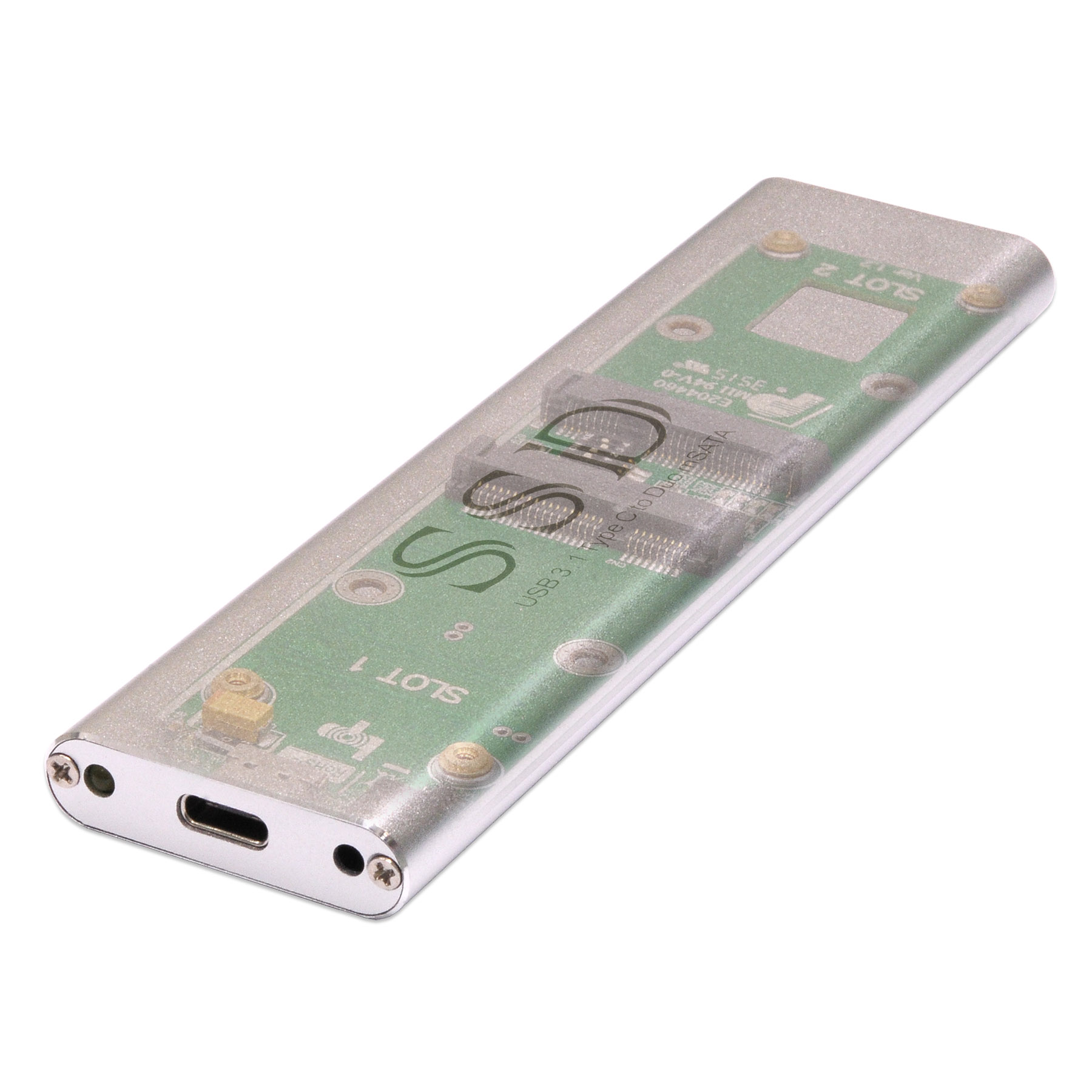

U31MR is Dual mSATA SSD to USB3.1 Type C adapter design for SATA-IO mSATA SSD mobile solution.

The adapter will allow you to use dual mSATA SSD module through USB 3.1 type C port on your desktop or laptop with RAID function.






        機能一覧


  • Allows user to use standard SATA3 mSATA SSD to USB type C port in the Desktop or Laptop
  • Compatible with Full/Half card dimension size of MINI SATA SSD Module
  • Active LED
  • Support Hi-Speed USB 3.1 (10Gbps), SATA3 (6Gbps) mass storage interface.
  • RAID mode :

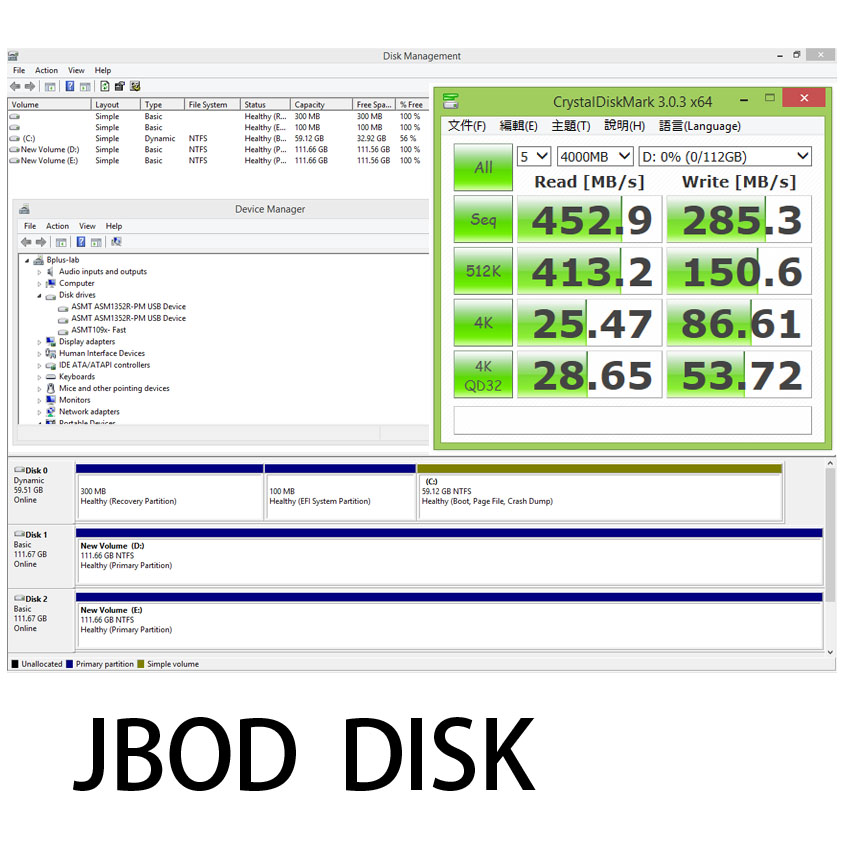

    JBOD (Port Multiplier),

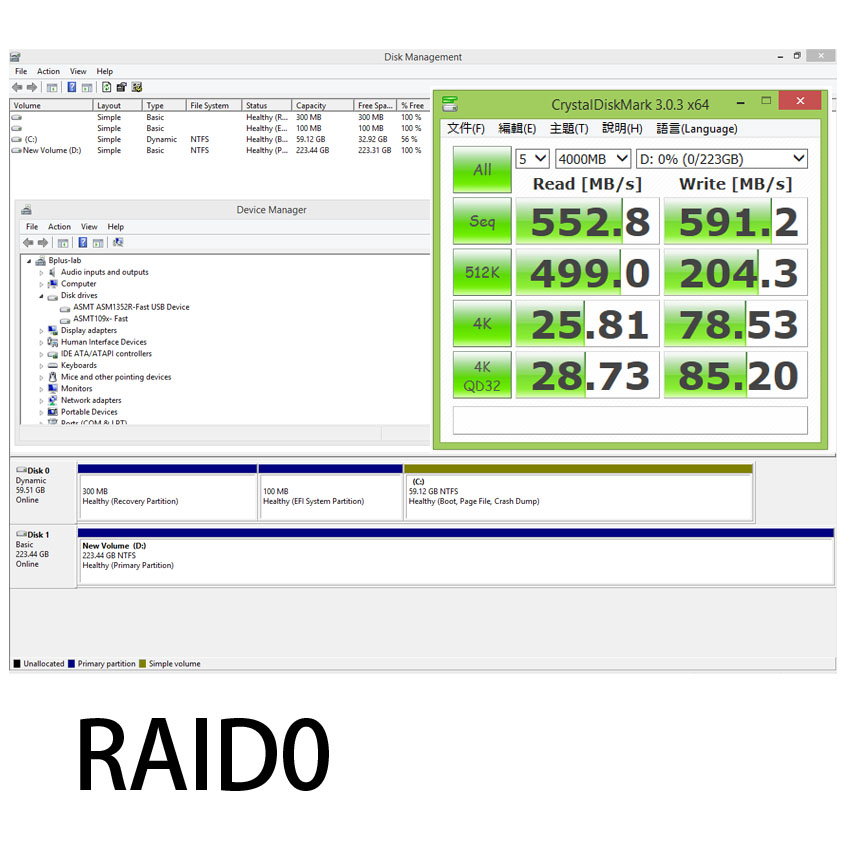

    RAID0 (Striping/Fast),

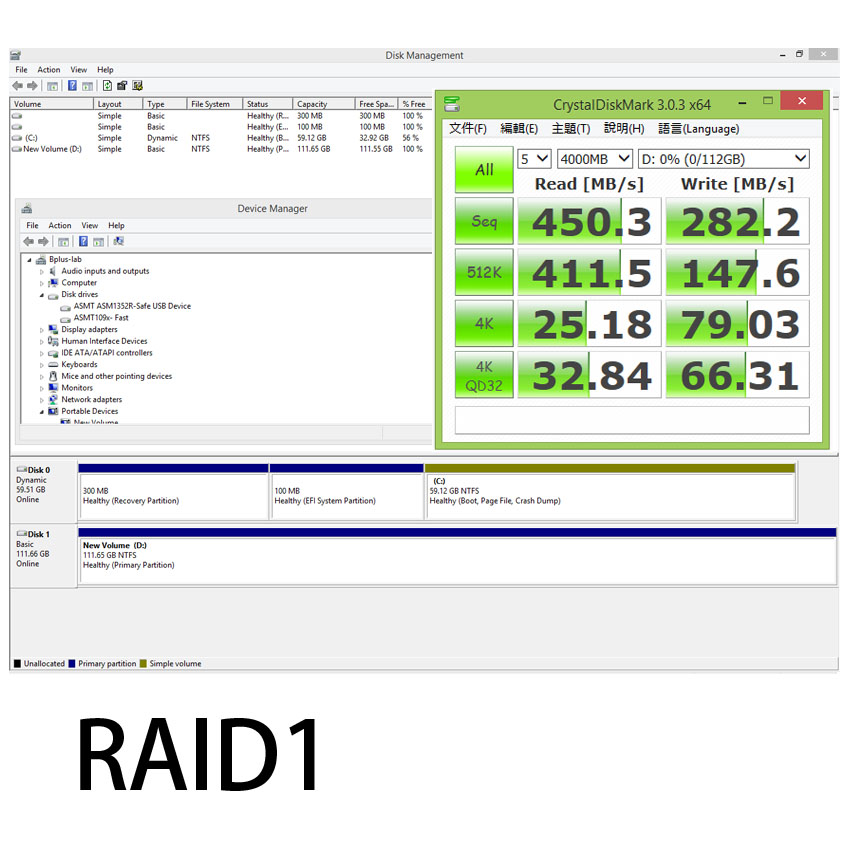

    RAID1(Mirror/Safe),

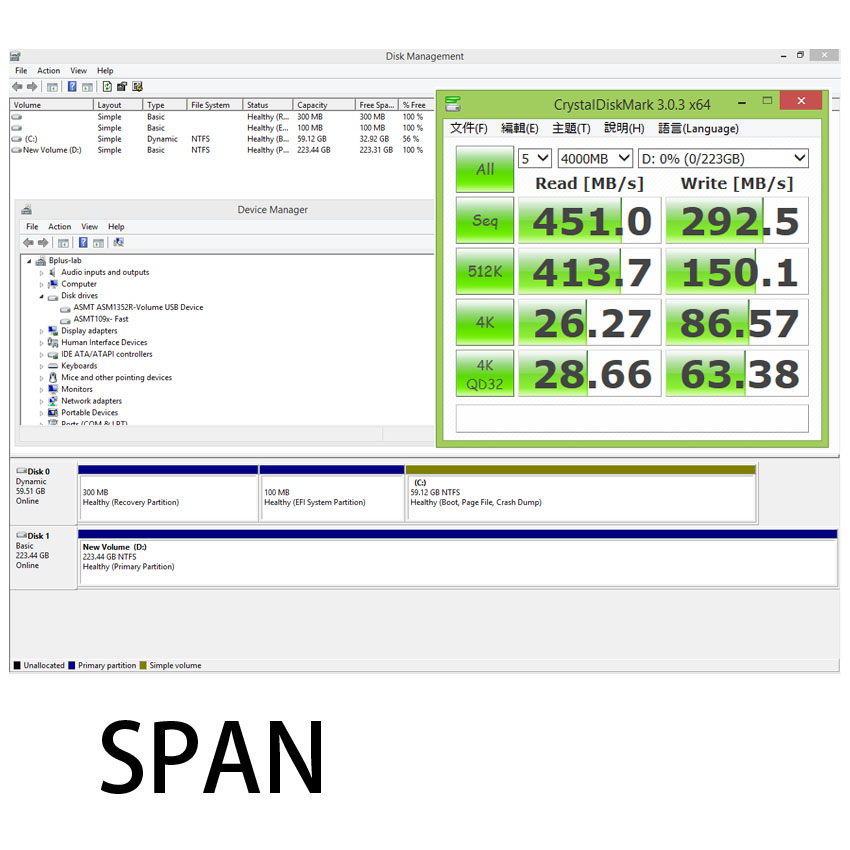

    Span (Big)

 SW1

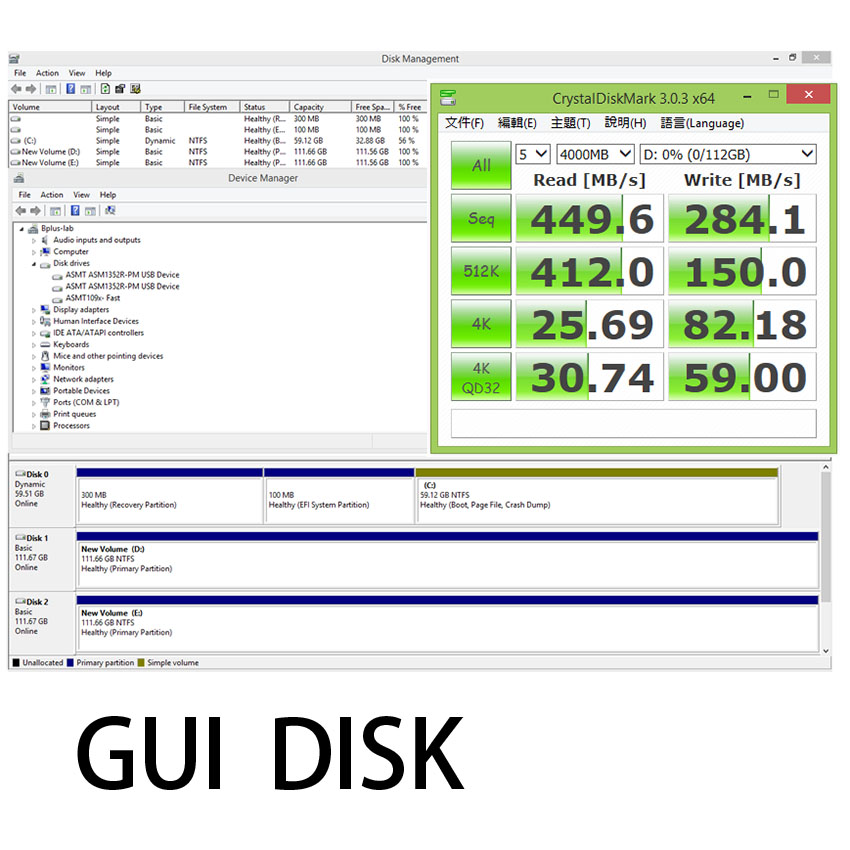

GUI

JBOD

RAID1

RAID0

Span

PIN 1

OFF

ON

ON

ON

ON

PIN 2

X

OFF

OFF

ON

ON

PIN 3

X

OFF

ON

OFF

ON




        外形寸法 & 重量


  • 143mm X37.79mm X 8.95mm / 52.8g (SSDなし)

        動作温度


  • 0 ~ 70℃

        システム要求


  • Windows XP, Vista, Windows 7, Windows 8, Window 10, Server 2008, Windows 8,Linux, Mac iOS



    Web-shop





U31MR

U31MR
(2個のmSATA SSD - USB3.1 Type Cアダプタ) x1

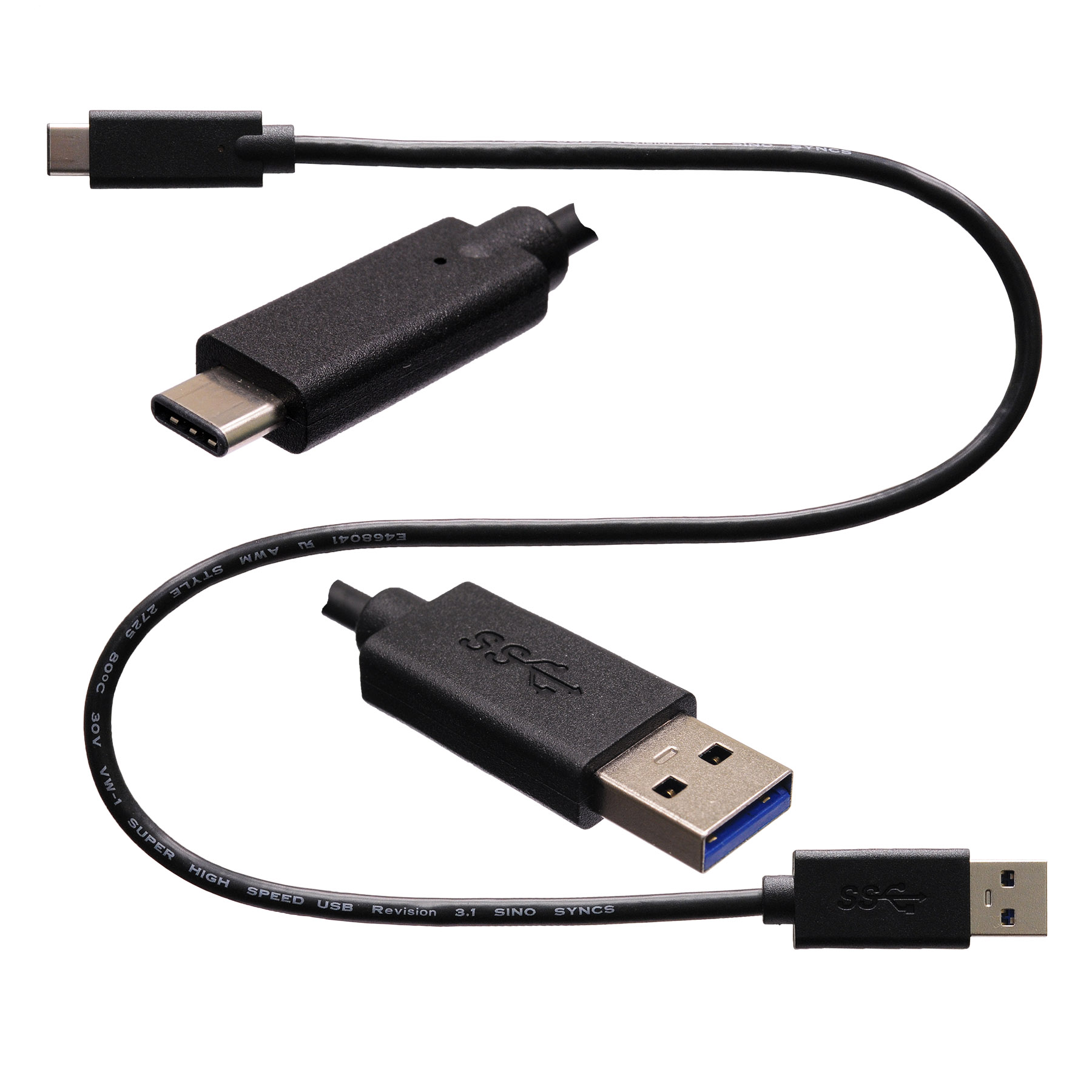

Y24-U01-050
(USB 3.1 C-type to USB3.0 A-type Cable 50cm) x1

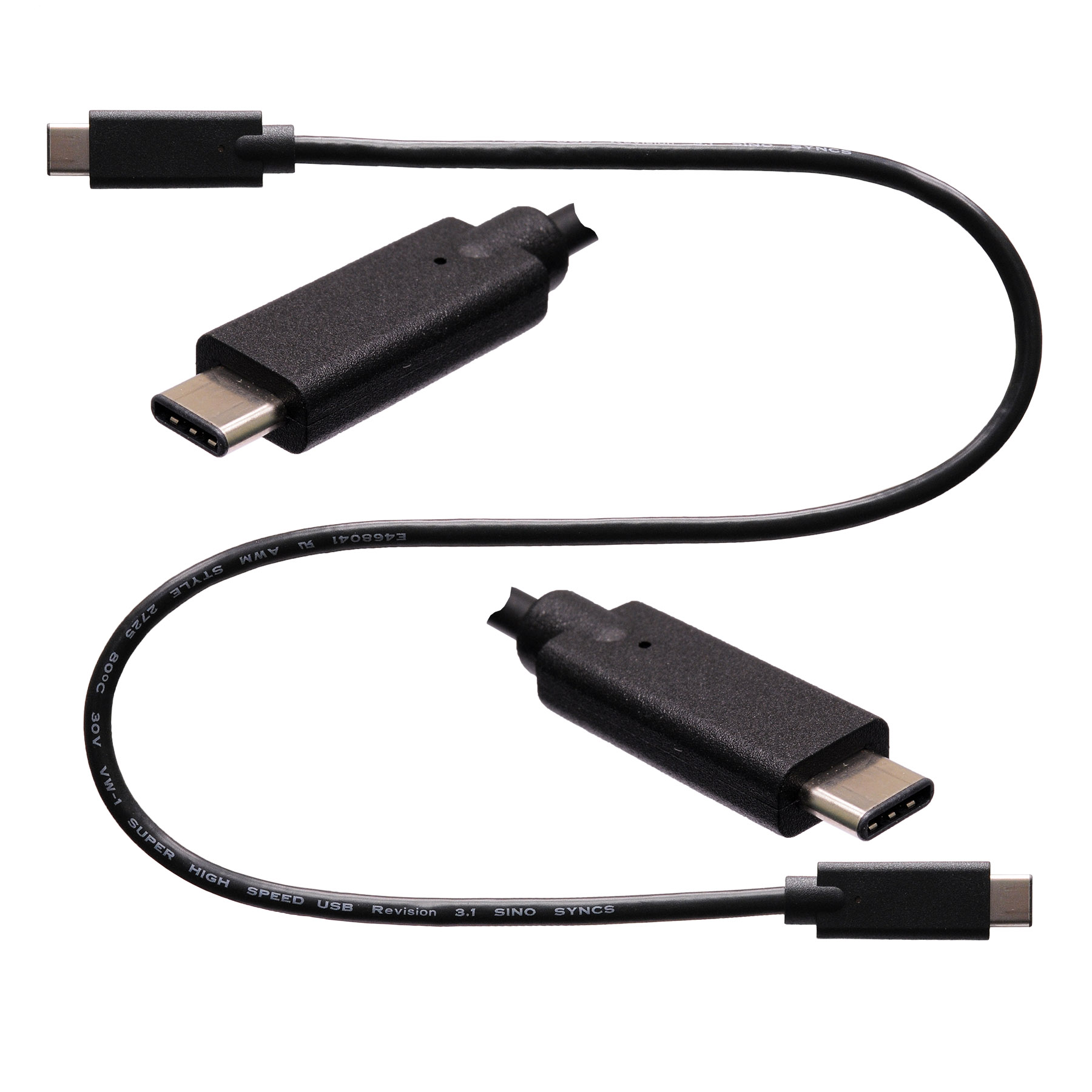

Y24-U02-050
(USB 3.1 C-type to USB3.1 C-type Cable 50cm) x1
Y05-U17-060
(USB-5VDC電源ケーブル) x1

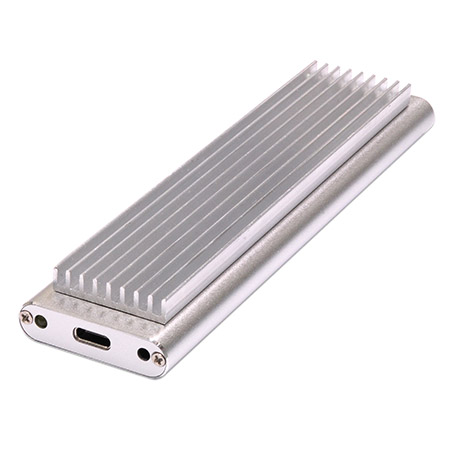

Heat Sink x1
Flat-Head Screw x4
