ホーム > 製品情報 > USB > USB2912A

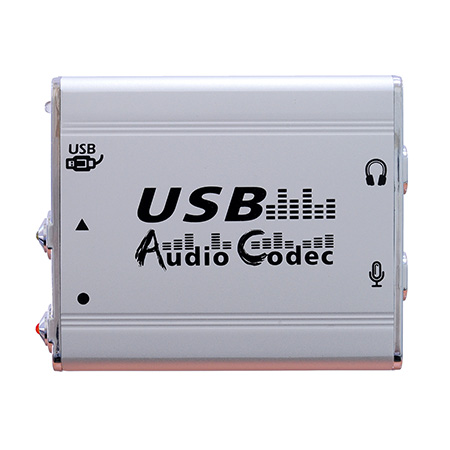

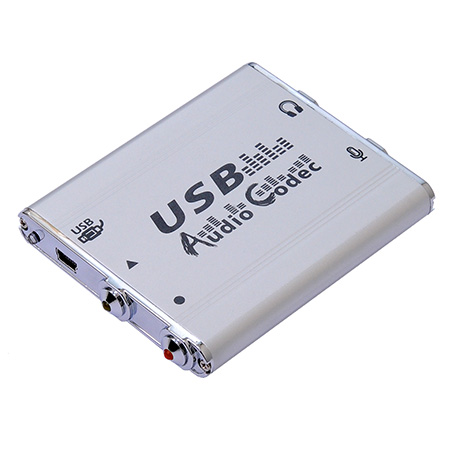

  USB2912A
(USB Audio Codec)







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Specification
Studying – Subtitle
Studying – Adachi San’s Classroom
Buy It Now


概要


The USB2912A is use the TI PCM2912A single-chip USB stereo audio codec with a USB 2.0-compaliant full-speed protocol controller and an analog front-end (AFE) function for headset applications, the USB protocol controller works with no software code. We can use it to listen to music and karaoke; Also, It design operational amplifier IC; it can make sound more powerful

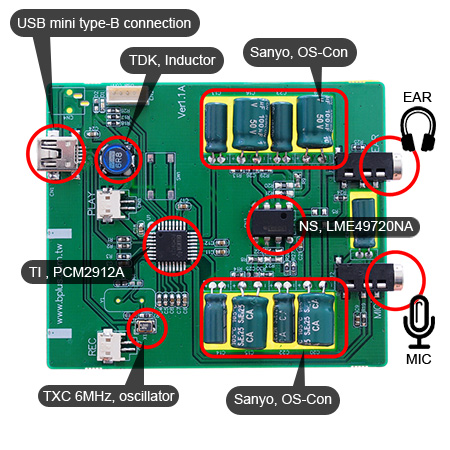

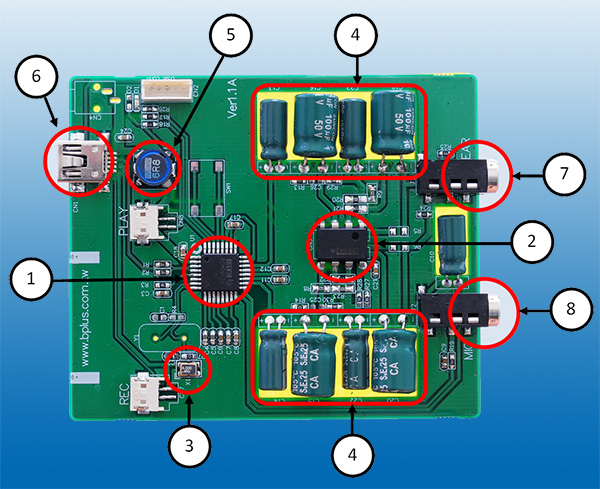

  1. TI , PCM2912A

  2. NS, LME49720NA

  3. TXC 6MHz, oscillator

  4. Sanyo, OS-Con

  5. TDK, Inductor

  6. USB mini type-B connection

  7. EAR: Earphone

  8. MIC: Microphone

    Pecification


  • Full-Speed Transceivers
  • Certified By USB-IF
  • Fully Compliant with USB 2.0 SPEC
  • 16-Bit Delta-Sigma ADC and DAC
  • Pop/Click Noise-Free
  • Single Power-Supply:5V from USB power
  • Stereo DAC with Headphone Output
  • Mono ADC with Microphone Input
  • Single 6-MHZ Clock Source from oscillator
  • With an operational amplifier IC
  • With PLAY,REC and Power LED



    PC System Requirements


  • USB port
  • Mac, Windows, Linux

    Mobile phone or Pad


  • USB OTG port
  • Android

    Notice:


  • If you device is OS of android and have USB OTG port, you can use it to listen music but MIC function maybe not enable with you device.

同梱品一覧


USB2912A
USB2912A
(USB Audio Codec) x1
Y05-U04-060
(USB 2.0 A Male to B Mini 5 Pin Cable 60cm) x1


Buy Related Items

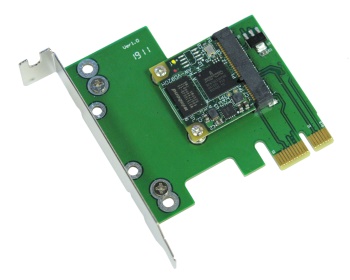

ADP-70015
