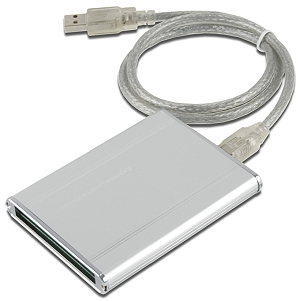

ECHUE-D02 (USB 2.0 Card Reader/Adapter for USB Mode ExpressCard 34/54)

Introduction:

Proudly presents you a perfect solution for accessing USB mode ExpressCard 34/54 on PC/Mac via USB 2.0 interface.

ECHUE-D02 supports USB 2.0 interface, and the data transfer rate reaches up to 480Mb/s.  It accepts both 34 mm and 54 mm USB ExpressCard.  It also allows the Hot-Plug and Hot-Swap features of the USB ExpressCard.  Whether I/O card or memory card, all the USB ExpressCard is acceptable for ECHUE-D02.

ECHUE-D02 is a very convenient device for any PC/Mac equipped with USB 2.0 interface to use USB ExpressCard.

Features

• Supports 34 mm and 54 mm USB 2.0 ExpressCard.
• Install in native USB 2.0 bus.
• Compliant with USB 2.0 and USB 1.1 specification.
• Supports 480Mb/s Hi-Speed USB data transfer rate.
• Supports Hot-Plug and Hot-Swap.
• Compatible with PC and Mac.
• Suitable for desktop/notebook equipped with USB interface.
• Equipped with 1 LED to show power and access indication.
• Push-Push card slot for easy insertion/extraction of ExpressCard.





Specifications

Input Socket	USB 2.0 ExpressCard 34 / 54
Output Interface	USB 2.0 (Hi-Speed)
Cable Interface	USB Mini-B to Type-A
Supporting Cards	USB Mode I/O or Memory ExpressCard 34/54
Data Transfer Rate	480 Mbps (Max.)
Supporting OS	Microsoft Windows 2000 / ME / XP / VISTA Mac OS 10.1.3 or above
Safety Approval	CE / FCC
Power Consumption	DC +5.0V directly from USB port
Dimensions	90.0 mm(L)* 67.8 mm(W)* 10.6 mm(H)

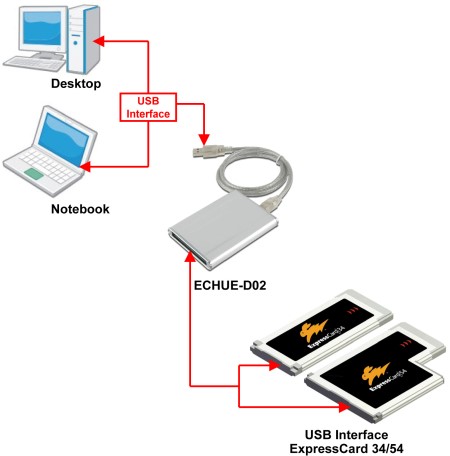

Application Diagram





Documents Download
Brief(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror







Package Contents:

CardBus/PCMCIA Reader to ExpressCard 34x1
ExpressCard34 Daughter Card x1
cable x1



Documents Download
AD (PDF):	ECCB-01
