ECSC (Smart Card Reader)



Introduction:

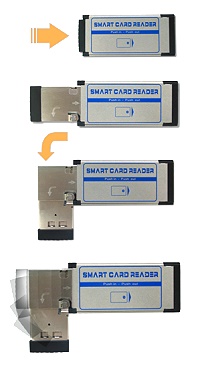

ECSC smart card readers are designed for securing network access, The reader is suitable for an ExpressCard 34mm slot; Using AU9520 chipset, handling all type of ISO7816 compatible smart cards.
As the rates of identity theft increases, more and more companies are turning to smart technology to secure their networks. E.g. home banking, network security, secure logon, email encryption, online gaming, infrastructure for logical access and protecting the privacy of on-line bank customers and web shoppers.

Installation Guide (PDF)



Features

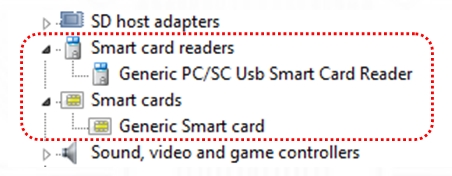

 Driver download

Functions

Description

Host Interface

Plug and Play ExpressCard/34, USB 1.1

SmartCard Interface

Supports ISO 7816 Class A, B and C cards (5.0 V, 3.0 V)
Reads from and writes to all ISO 7816-1,2,3,4 microprocessor cards, T=0 and T=1 protocols, I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442
Dedicated hardware block implementation for IC and memory card protocols for highest performance

Chipset Certifications

Based on ISO7816 implementation
Support EMV specification
Meet Microsoft WHQL USB Smart Card Reader requirements
Support PC Smart Card industry standard – PC/SC 1.0

Operating Systems

Windows 98, 98SE, Me, 2000, XP, Server 2003, x64 editions, Vista 32, 64 bits, Seven, Server 2008R2

Environmental

CE, FCC part 15 Class B , ROHS compliant ,
Operating: +0°C / +55°C
Storage: -20°C / +65°C

Weight and size

30(g) and 85x34x5(LWHmm)





Documents Download
Brief (PDF):  Taiwan  Taiwan 2 Mirror  China Mirror
Schematic (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Installation Guide (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Driver download   Taiwan   Taiwan 2 Mirror   China Mirror
