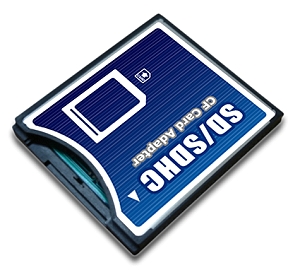

SDCFA-C01 (SDHC/SD/MMC to CF Type II Adapter)

Introduction:

Proudly presents you a perfect solution for converting the SDHC (Secure Digital High Capacity) / SD (Secure Digital) / MMC (Multi Media Card) to standard CF Card Type II.

This adapter supports converting SD, SDHC all capacities, miniSD (with adapter), microSD (with adapter), microSDHC (with adapter), MMC, MMC 4.0, RS-MMC (with adapter), and RS-MMC 4.0 (with adapter) to CF Type II.

SDCFA-C01 is very convenient for any digital device equipped with CF Type II socket, like Digital Camera, PDA, Digital Photo Frame, Card Reader, Notebook, etc.

Features

• Fully compatible with SDHC (SD system Spec 2.0).
• Fully compatible with SD system Spec 1.0
• Fully compatible with MMC system Spec 2.0
• Standard MMC Mode Interface supports.
• Standard SPI Interface for MMC Card.
• Programmable Clock Rate (62.5KHZ~24MHZ).
• Auto Command/ Response CRC generation/ check.
• Auto Data CRC generation/ check.
• 2 Clock Lines support for twin-card operation.
• Microprocessor I/O transfer mode (High flexibility) or Automatic transfer mode (High speed) supports.



Specifications
Input Socket	SDHC / SD (SD Specification 2.0)
	SD system Spec 1.0
	MMC system Spec 2.0
Output Interface	Standard CompactFlash Type II
Supporting Card	SDHC 4GB~32GB
	SD 8MB~2GB
	miniSD 8MB~2GB (Adapter Required)
	microSDHC 4GB~32GB (Adapter Required)
	microSD 8MB~2GB (Adapter Required)
Data Transfer Rate (Speed changes with the media which is used)
	SDHC Read: 7.8Mb/sec
	SDHC Write: 3.7Mb/sec
Controller	PHISON PS3006
Supporting OS	Windows 98SE / 2000 / ME / XP / VISTA
	Mac OS 10.1.3 or above
Safety Approval	CE / FCC / BSMI
Dimensions	85.0 mm(L)* 54.0 mm(W)* 5.0 mm(H)
Weight	≒15g





Application Diagram





Documents Download
Brief(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
