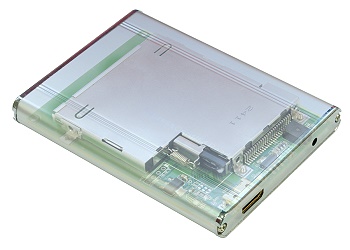

Introduction: The MR13-D is Expresscard 34/54 reader This reader allows you to use your Expresscard 34/45 card to Expresscard34 or mini-PCIe or PCIe add-in card  |
 |
|||||||||
| MR13-D |

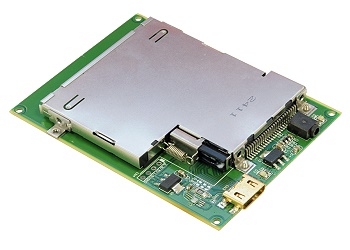

MR13-D PCBA |
|||||||||
|
||||||||||

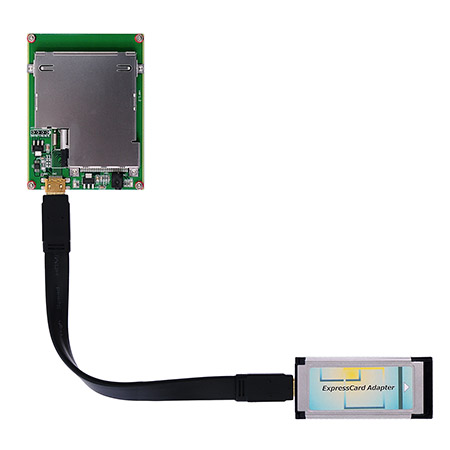

- MR13-D-EC2C & MR13-D-EC2C-module Expresscard 34 extend to Expresscard 54 reader.

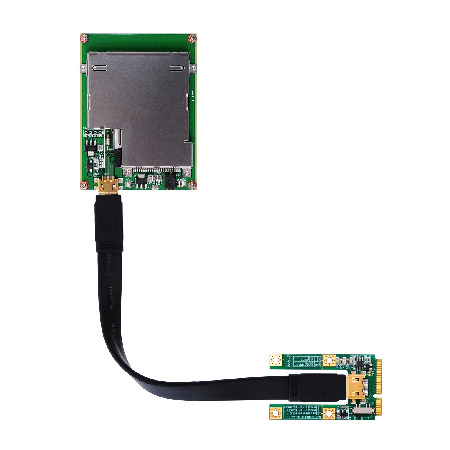

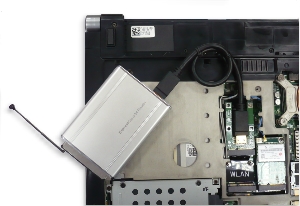

- MR13-D-PM3N & MR13-D-PM3N-module allows user use Expresscard 34/54 on the mini PCI express slot.

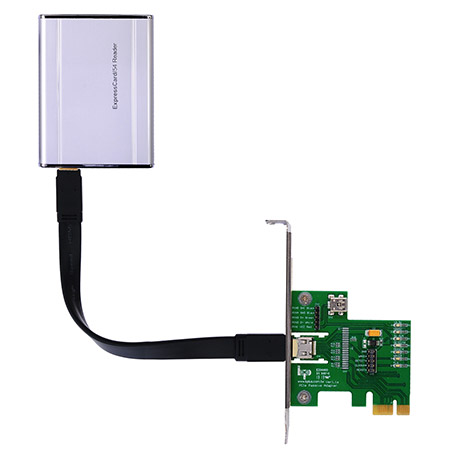

- MR13-D-HP1A & MR13-D-HP1A-module allows user use Expresscard 34/54 on the PCIe 1x slot.
Features
- Microsoft Windows XP / VISTA / Windows 7 / Server 2008
- Linux
Support OS:

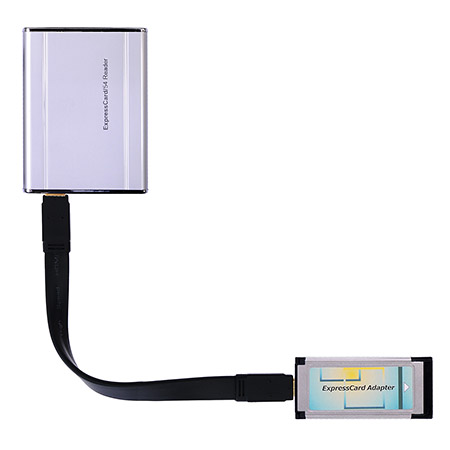

- MR13-D-EC2C
- MR13-D-EC2C module
- MR13-D-PM3N
- MR13-D-PM3N module
- MR13-D-HP1A
- MR13-D-HP1A module
MR13-D-EC2C Package Contentsダプタ)
|
|
MR13-D x1 |
EC2C ( Express card to the converted port adapter) x1  |
| Y19-H02-060 (PCIe Male to Male cable 60cm) x1  |
Y05-U17-060 (USB A Male to DC Power Cable) x1  |
| MR13-D-EC2C module Package Contents
|
|
MR13-D PCBA x1 |
EC2C ( Express card to the converted port adapter) x1 |
| Y19-H02-060 (PCIe Male to Male cable 60cm) x1 |
Y05-U17-060 (USB A Male to DC Power Cable) x1 |

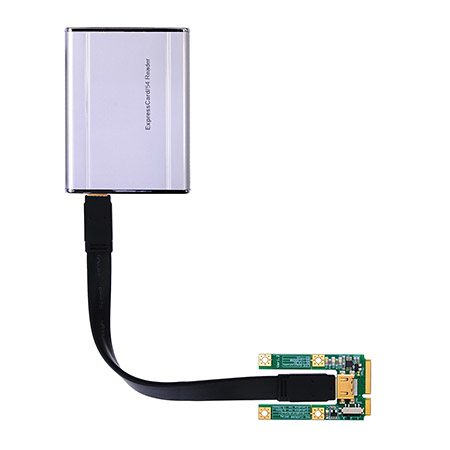

| MR13-D-PM3N Package Contents | |
| MR13-D x1 |
PM3N (mini PCIe card to the converted port adapter) x1  |
| Y19-H02-060 (PCIe Male to Male cable 60cm) x1 |
Y05-U17-060 (USB A Male to DC Power Cable) x1 |
Screw x2 |
|
| MR13-D-PM3N-module Package Contents | |
| MR13-D PCBA x1 |
PM3N (mini PCIe card to the converted port adapter) x1  |
| Y19-H02-060 (PCIe Male to Male cable 60cm) x1 |
Y05-U17-060 (USB A Male to DC Power Cable) x1 |
| Screw x2 |
|
| MR13-D-HP1A Package Contents | |
| MR13-D x1 |
HP1A (PCIe 1X passive adapter) x1  |
| Y19-H02-060 (PCIe Male to Male cable 60cm) x1 |
Y05-U08-060 (Dupont 5PIN to dupont 5PIN USB cable) x1  |
| JP0876 (ローPCIブラケット) x1  |
Y05-U17-060 (USB A Male to DC Power Cable) x1 |

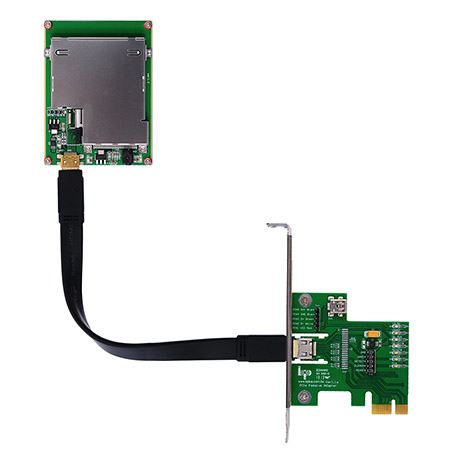

| MR13-D-HP1A-module Package Contents | |
| MR13-D PCBA x1 |
HP1A (PCIe 1X passive adapter) x1 |
| Y19-H02-060 (PCIe Male to Male cable 60cm) x1 |
Y05-U17-060 (USB A Male to DC Power Cable) x1 |
| JP0876 (ローPCIブラケット) x1 |
Y05-U08-060 (Dupont 5PIN to dupont 5PIN USB cable) x1 |
- EC2C
- PM3N
- HP1A
- SWEX
| EC2C |
| EC2C (ExpressCard-変換ポートコネクタ用ア |
| SPB087 |
| SPB087 (ExpressCard34用54スロット補助アダプタ) x1  |
| SWEX
|
SWEX (ATX電源用スイッチ) |
- Y19-H02-030
PCIEMM-030A - Y19-H02-060
PCIEMM-060A - Y19-H02-100
PCIEMM-100A - Y19-H02-150
PCIEMM-150A - Y19-H02-200
PCIEMM-200A - Y19-H02-300
PCIEMM-300A - Y19-H02-400
PCIEMM-400A - Y19-H02-500
PCIEMM-500A
| Y19-H02-030 |
| Y19-H02-030 (専用PCIeオス-オス30cmケーブル) x1  |
| Y19-H02-150 |
|
| Y19-H02-200 |
|
| Y19-H02-300 |
|
| Y19-H02-400 |
|
| Y19-H02-500 |
|
