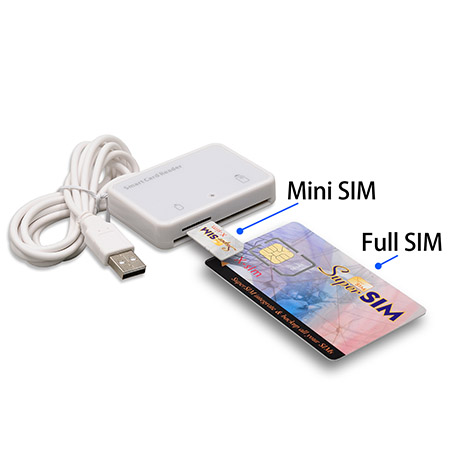

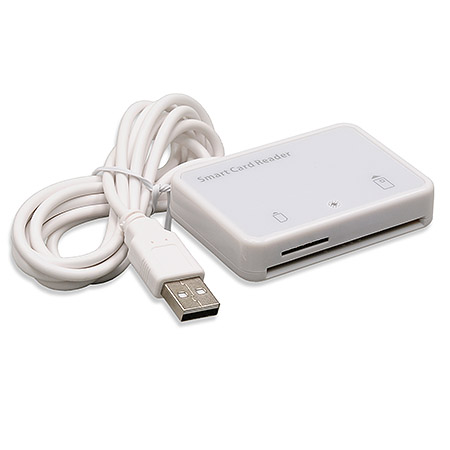

  USB-MCR3512
スマートカードリーダ用モジュール







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Software Taiwan 1 Taiwan 2 China
Web-Shop

        Features


Ergonomic and cost efficient design
Software and functionality compatible with SCM SCR33xx readers family
EMV Level 1 certified
Compliant with major smart cards and relevant industry standards



        Typical Applications


The MCR3512 are suitable for a wide range of applications for government
as well as for enterprise and home useage.

Due to its design, the readers are also ideally suited to be bundeled with
smart cards and software to support large scale projects roll outs.

Typical applications areas of the MCR3512 are electronic ID, social security and loyalty programs,
e-Couponing, secure network log on, e-Banking as well as online shopping
and gaming activities.



Technical Data

Interfaces Full speed USB 2.0 (12 Mbps)
USB Bus powered device
CCID compliant
Smart Card / PSAM Card
(contact)
T=0, T=1 protocol support
Memory card support through SCM MCARD API
Communication speed up to 420 kbps (PPS, Fl parameter)
Frequency up to 8 MHz (PPS, Dl parameter)
Support ISO 7816 Class A and AB smart card
8 contacts - ISO 7816 location
Friction contact, 100,000 insertions
Optical One green LED
API Software PC/SC
CT-API (thru wrapper on top of PC/SC)
Operating Systems Windows Vista, XP, Win7、Server 2003, 2000, ME, 98
Windows Vista, XP,Win7,Server2003 (AMD64/EMT64)
Windows CE 3.0, 4.1, 4.2, 5.0, 6.0
MacOS, Solaris, Linux 32-bit (2.4.x, 2.6.x)/64-bit
Cable Cable: 1.5m long with USB type A connector
Dimensions LWH 68 x 48 x 15 mm
Weight 86g
Operating Conditions Temperature : 0 to 50°C
Humidity : 90% (non-condensing)
Approvals FCC Class B part 15, cULus, CE, VCCI
ICES-003 Issue4
ICES-003 Issue4, ClassB
USB-IF
Microsoft WHQL 2000, XP, Server2003
EMV 2000 Level 1
RoHS, WEEE
REACH compliance

同梱品一覧



USB-MCR3512
(スマートカードリーダ用モジュール) x1
