RFケーブル製品(OEM) |
|
- For example

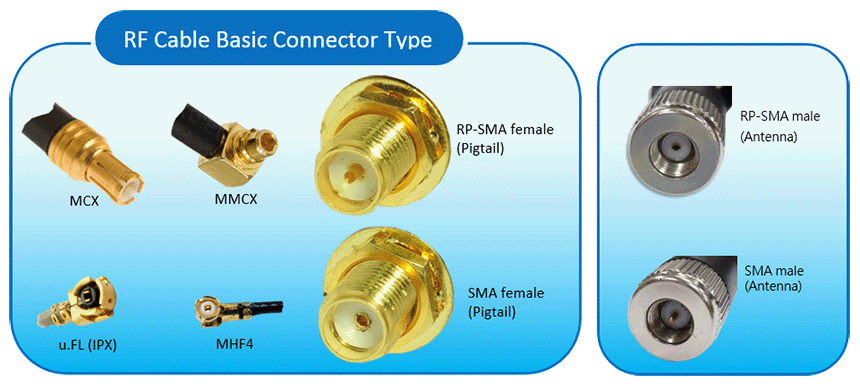

- Basic Cable / Connector Type

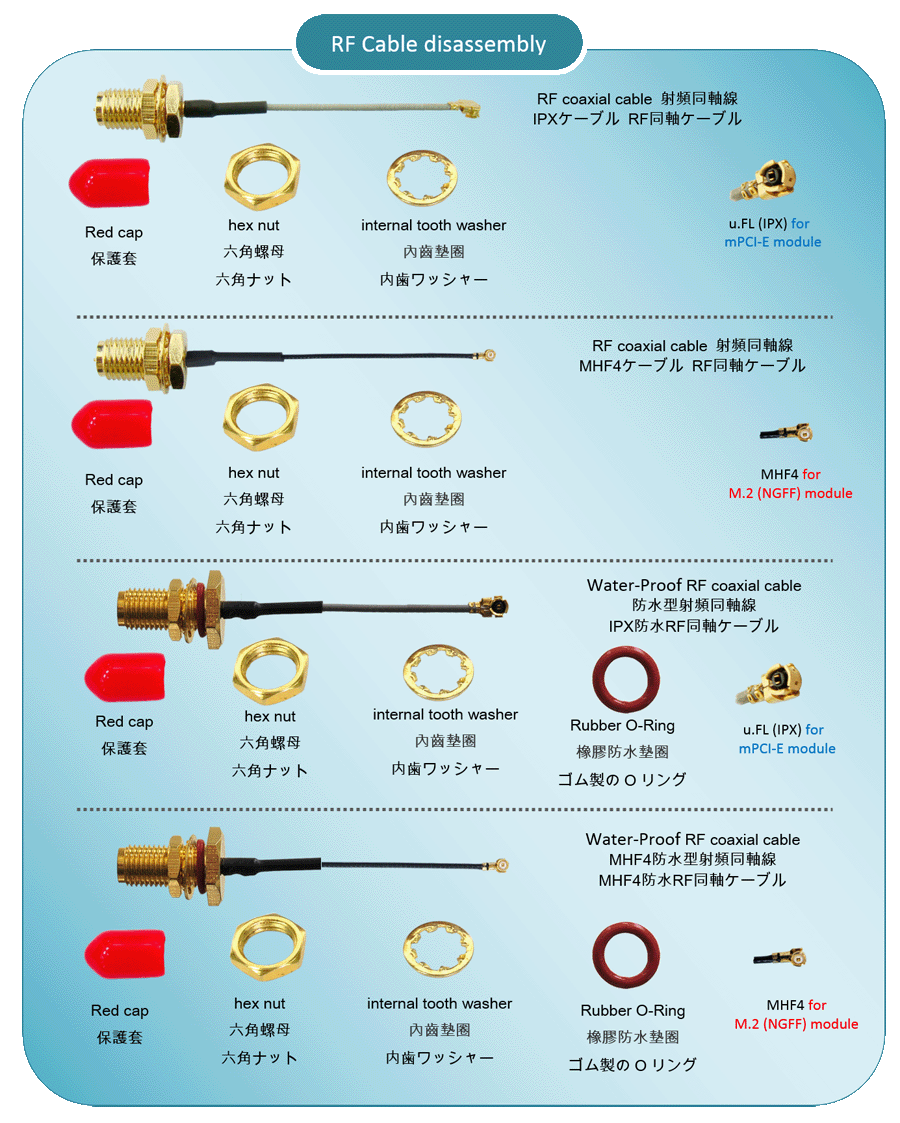

- RF Cable disassembly
- RF Connector
- Cable Components
- Application
| Part-Number |

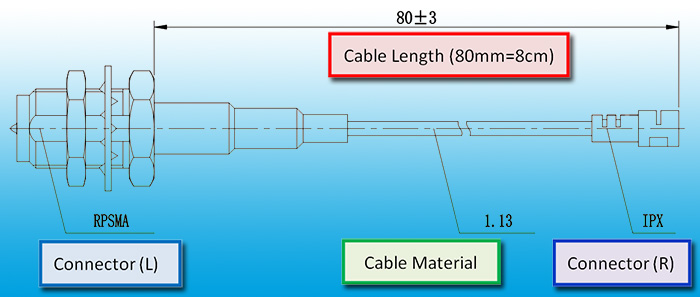

RPSMA female-IPX plug-8CM-1.13 cable Dimension |
RPSMA-IPX-8CM
RPSMA-1.13-IPX-8CM
RF21008A |
 |
 |

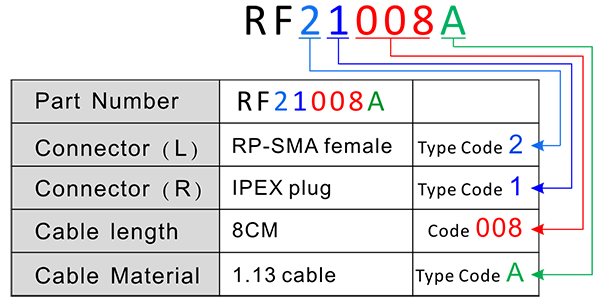

| RF-Cable Adapter part-number and product name example: |
| RF21008A RPSMA female-IPX plug-8CM-1.13 cable |
| RF11150D SMA female-IPX plug-150CM-RG178 cable-Water-Proof |
| RF33150C SMA-Extension-150CM-RG174 cable-Magnet-Seat |
| RF28200A-FC RPSMA female-MMCX plug-200CM-1.13 cable with Ferrite-Core |
| RFXX008B-YY OEM project. –XX (Conn Code), –YY (OEM Code) |
|
|
Part-Number descriptions |
| Type Code / Connector(L) |
»» »» |
Type Code / Connector(R) |
»» »» |
Length
(cm) |
»» »» |
Type Code / Material |
|
3 SMA female / Magnet-Seat
4 RPSMA female / Magnet-Seat
|
005
008
012
015
020
050
100
300
Other |
-WP Water-Proof
-XX Other (OEM)
|
[Manufactory]
SMA Cable assembly, RF coaxial pigtail cable IPX / U.FL to RP-SMA female Pigtail, 50 Ohm,1.13 cable
If you are interested in RF coaxial cables, please Contact Us anytime.
Please choose spectfications for the customized products you need , we'll get back to you soon for your request within 24 hours.
- Custom cables for quantities up to 50 have a lead time within 2 weeks.
- Custom Cables ordered are non-refundable
- A sample price for $3, Shipping and handling for $30
- RoHS certification
Notice:
RF cable compliance with Rohs Exemption 6: "Lead as an alloying element in steel containing up to 0,35% lead by weight, aluminium containing up to 0,4% lead by weight and as a copper alloy containing up to 4% lead by weight"
 RF cable selection guide
|
| RF Cable Basic Cable Type |
| Type |
Conductor |
Insula-tion |
Braid I |
Braid II |
Jacket |
O.D |
UL STYLE |
Impe-dance |
Conne-ctor |
Frequ-ency |
| RG-178 |
SCCS |
FEP |
SP/TD |
/ |
FEP |
1.8mm |
AWM1979 |
50Ω |
MMCX |
6GHZ |
| RG-174 |
PE |
SP/TD |
/ |
PVC |
2.8mm |
AWM1979 |
50Ω |
SMA |
6GHZ |
| 1.13 |
SCCS |
FEP |
SP/TD |
/ |
FEP |
1.13mm |
AWM1979 |
50Ω |
U.fl/IPX |
6GHZ |
| 0.81 |
FEP |
SP/TD |
/ |
FEP |
0.81mm |
AWM1979 |
50Ω |
MHF4 |
6GHZ |
|
 |
RF Connector |

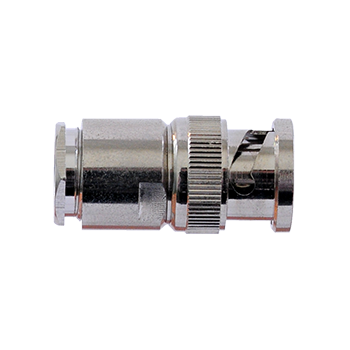

 BNC-J5 |

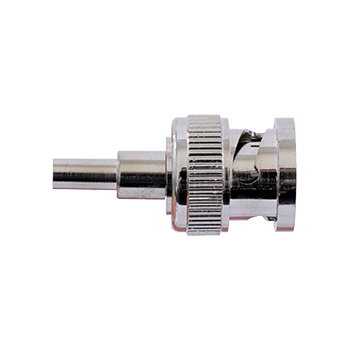

 BNC-JC-1.5 |

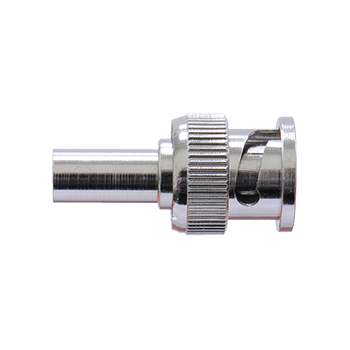

 BNC-JC-3 |

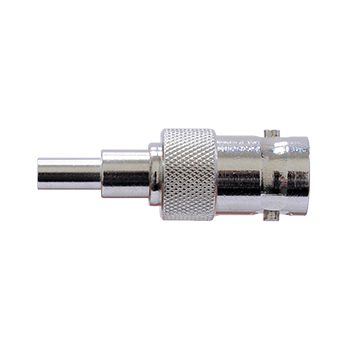

 BNC-KC1.5 |
|

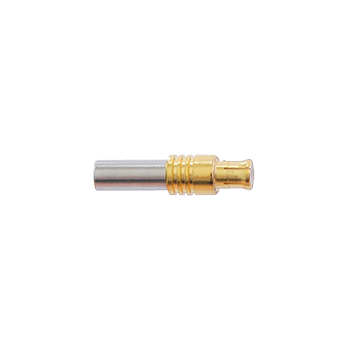

 MCX-JC316 |

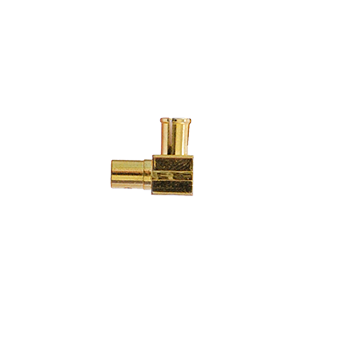

 MCX-JWB2 |

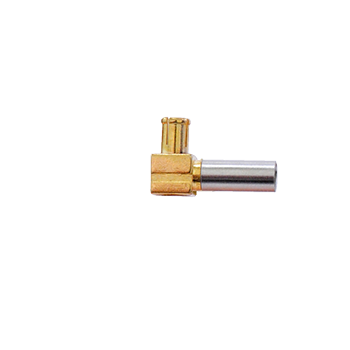

 MCX-JWC1.5 |

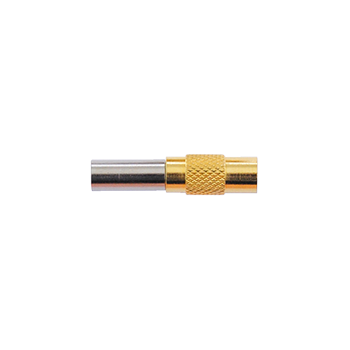

 MCX-KC1.5 |
|

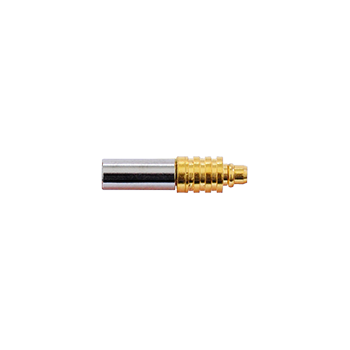

 MMCX-JC-1.5 |
 MMCX-JWC1.5 |

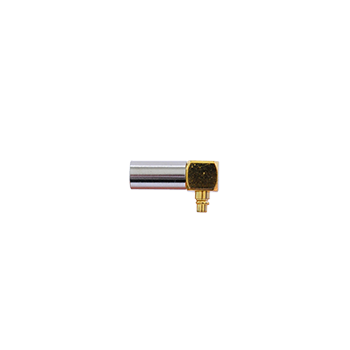

 MMCX-JWC-3 |
|
|

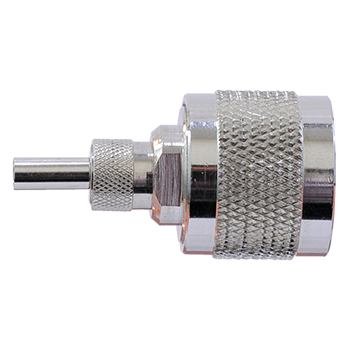

 N-J3Y |

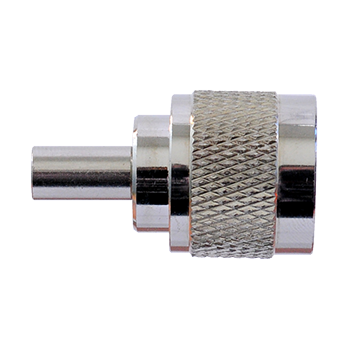

 N-JC-3 |

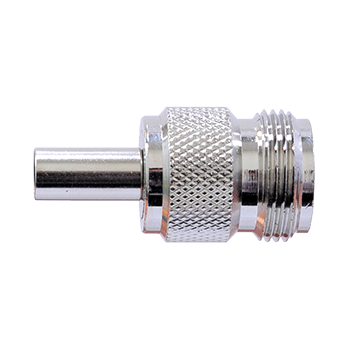

 N-KC-3 |

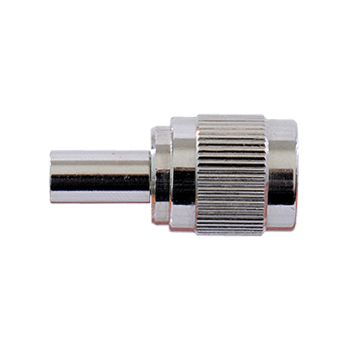

 RPTNC-JC-3 |

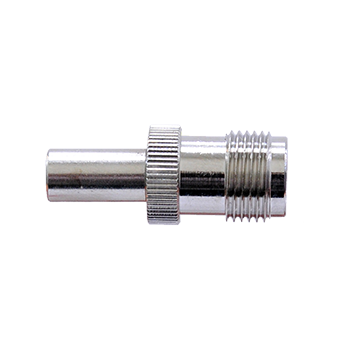

 RPTNC-KC-3 |

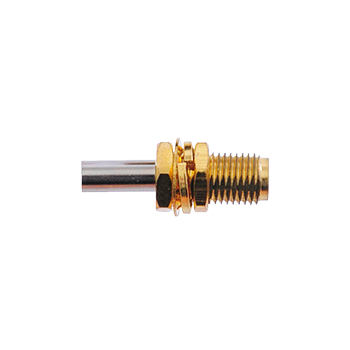

 SMA-C-KY1.5 |

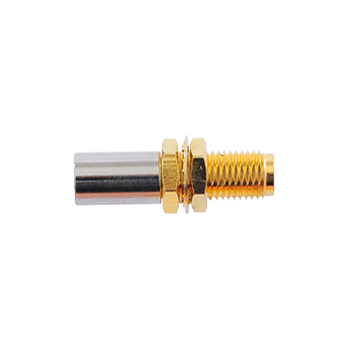

 SMA-C-KY3 |

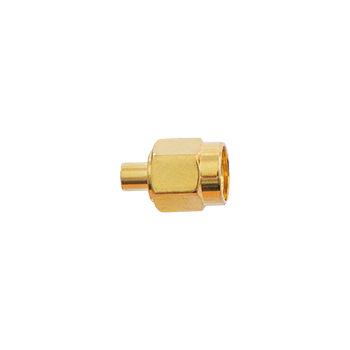

 SMA-JB2 |

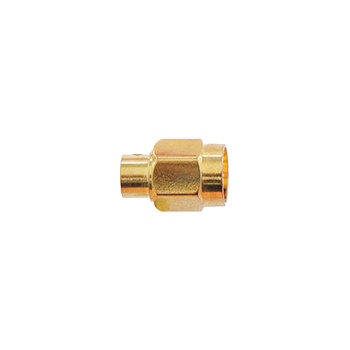

 SMA-JB3 |

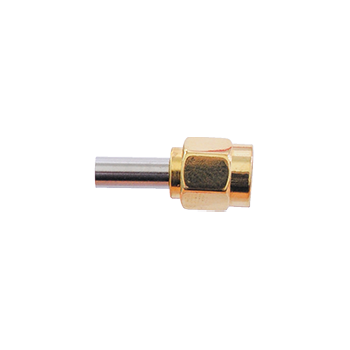

 SMA-JC1.5 |

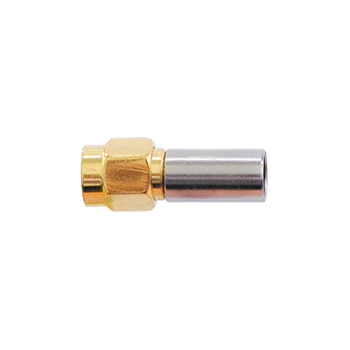

 SMA-JC-3 |

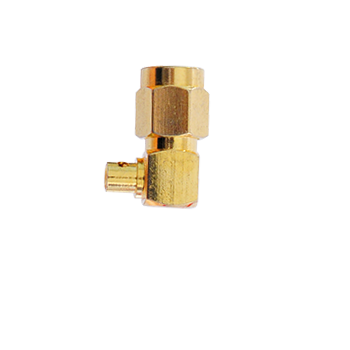

 SMA-JWB2 |

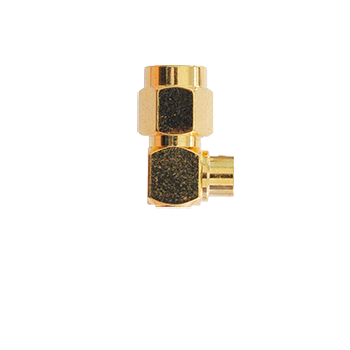

 SMA-JWB3 |

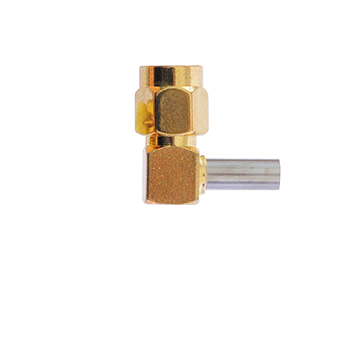

 SMA-JWC1.5 |

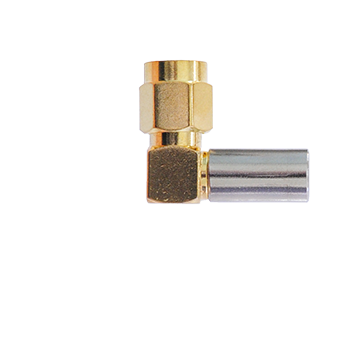

 SMA-JWC-3 |

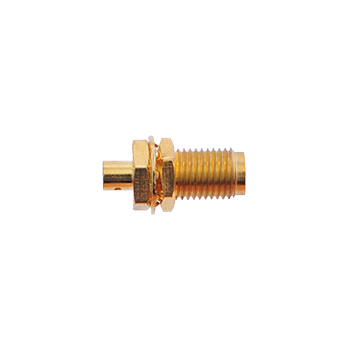

 SMA-KYB2 |

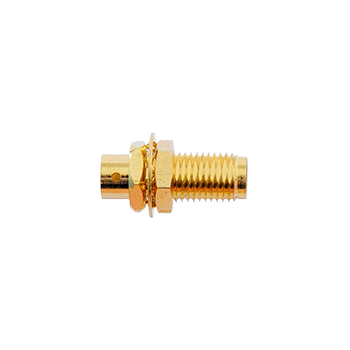

 SMA-KYB3 |

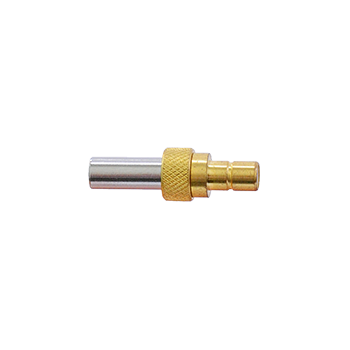

 SMB-JC-1.5 |

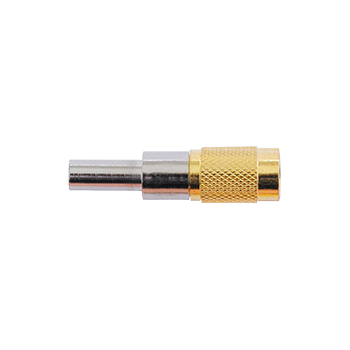

 SMB-KC316 |
|

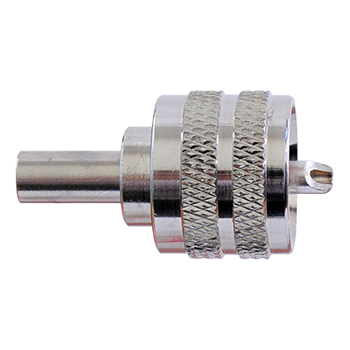

 SU6-JC-3 |

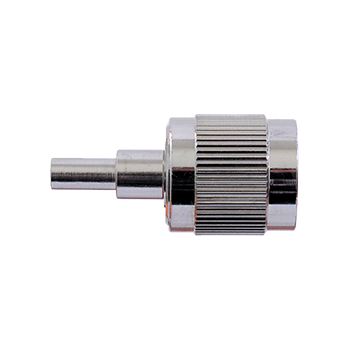

 TNC-J3Y |

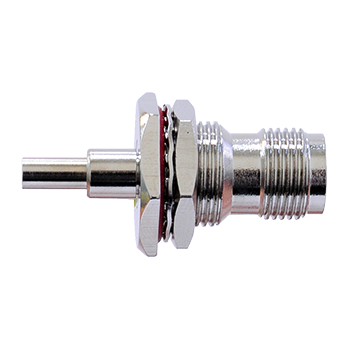

 TNC-KYC1.5 |

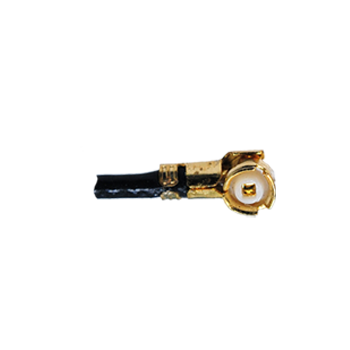

 MHF4 |

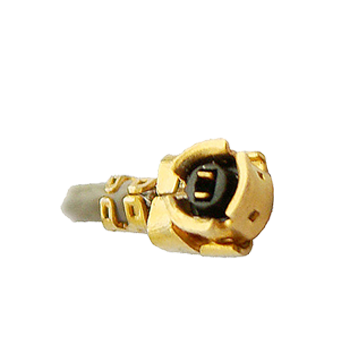

 U.fl_IPX |
Cable Components |
 |
1. The connector sma his head on his head even sma |
cable RG58U |
 |
2. The connector sma his head even the sma head |
cable RG174 |
 |
3. The connector sma his head even it the first mmcx |
cable RG174 |
 |
4. The connector his head even mmcx the sma |
cable RG178 |
 |
5. The connector sma his head his head even ipex |
cable RG316 |
 |
6. The connector sma his head without welds |
cable RG316 |
 |
7. The connector sma his head on his head even ipex |
cable 1.13 |
 |
8. The connector SMA his head on his head even MHF4 |
cable 0.81 |
- MMCX / MCX
- RPSMA/SMA
- U.FL/IPX/IPEX/MHF,MHF4
RF Cable Application
(SMA, RPSMA, MCX, MMCX, IPX, MHF4) |
MMCX
微小型射頻同軸連接器 (MINIATURE MICROAX RF COAXIAL CONNECTORS)
MMCX系列射頻連接器是一種比MCX更小的微型產品。它體積小、重量輕、連接方便可靠。廣泛用於對系統體積、重量都有要求的小型通訊、網路設備中連接射頻同軸電纜。
The series of MMCX radio frequency joining device is a kind of microminiaturized product smaller than MCX. It is small, light, joins convenient and reliable.
Use for to system volume, serious to have small-scale communication, Network equipment that require join the coaxial cable of the radio frequency extensively.
MCX
微型射頻同軸連接器 (MICROAX RF COAXIAL CONNECTORS)
MCX 系列射頻連接器是一種小型推入自鎖式連接器，它具有體積小、重量輕、結構緊湊的特點。可用於對體積、重量及安裝方式有要求的小型電子設備或網路系統。
The series of MCX radio frequency joining device is that one kind is since pushed the lock type joining device small-scaly, it has a small, light, characteristic with compact structure. Small- scale electronic equipment or network system that can be used for requiring to volume, weight and installation way.

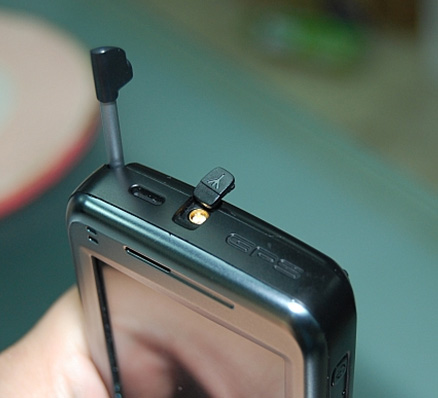

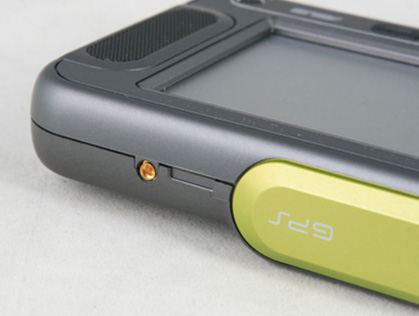

| MMCX connector in Mobile GPS, Smart Phone |
 |
 |
|

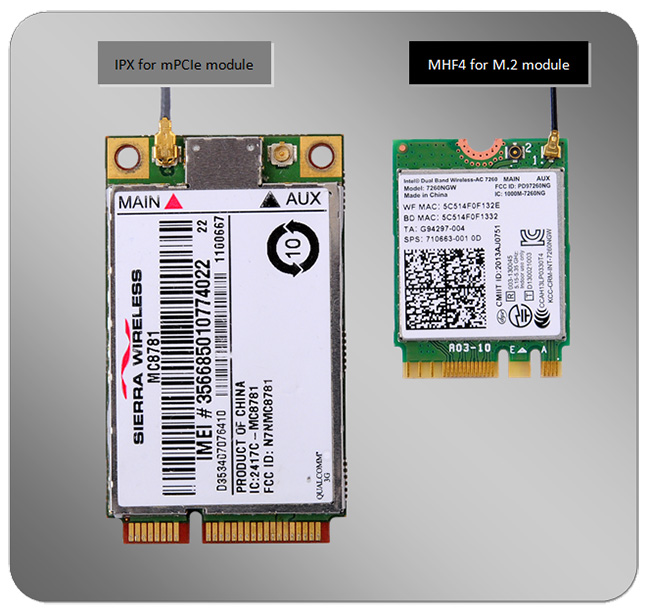

U.FL/IPX/IPEX/MHF,MHF4 |
U.FL/IPX/IPEX/MHF,MHF4
U.FL/IPX/IPEX/MHF is a miniature RF connector for high-frequency signals up to 6 GHzfor mini PCI Express Module
MHF4 is a kind of microminiaturized product smaller than MHF. For M.2 (NGFF) Module
|

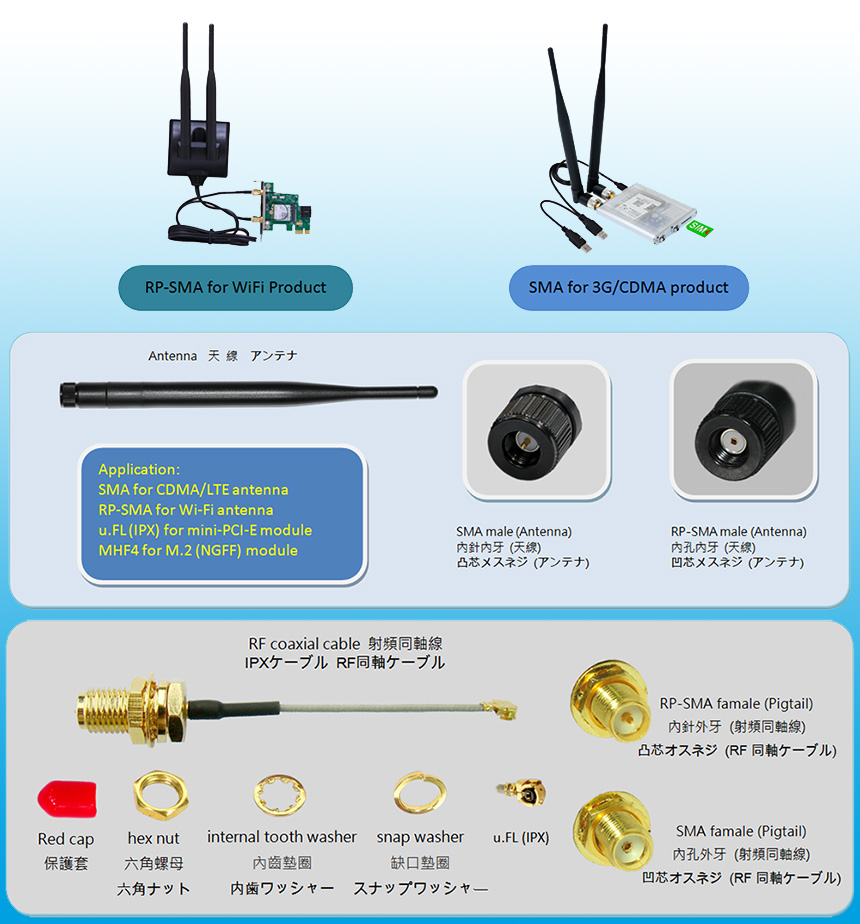

RF Cable Application |
RPSMA / SMA
反極接頭一般用在2.4G/5.0G無線網卡、無線路由器、橋接器AP和WiFi天線上；
標準接頭用在除以上以外的其它領域，2G/3G/4G無線模組、GPS對講機、GSM設備、CDMA，Lte等。
SMA系列產品是一種應用廣泛的小型螺紋連接的同軸連接器，它具有頻帶寬、性能優、高可靠、壽命長的特點。適用於微波設備和數位通信系統的射頻回路中連接射頻電纜或微型線。
Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently.
Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.
|
|
|
|
|
