ホーム > 製品情報 > エクステンダ系製品 > B17 Series

B17 Series
(SIM Card Extender)

Introduction:

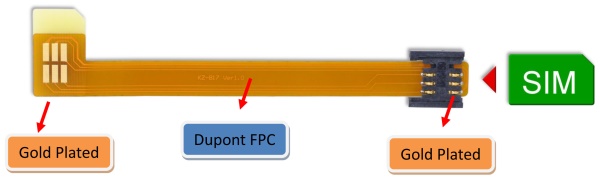

B17 SIM card Extender is a debug and test tool. Design the FPC cable for flexible use.
It allows a SIM Card to be extended from the host slot for SIM interface.
It’s especially designed to save valuable labor and time in the production environment. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.

It’s also a powerful tool for engineers, or use for mobile phone SIM test protection.

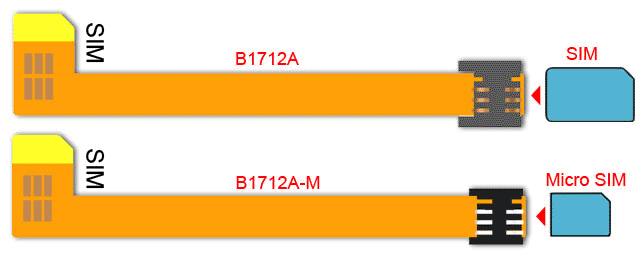

B1712A Package Contents
B1712A
(SIM Card Extender) x1


Documents Download
Brief   Taiwan   Taiwan 2 Mirror   China Mirror

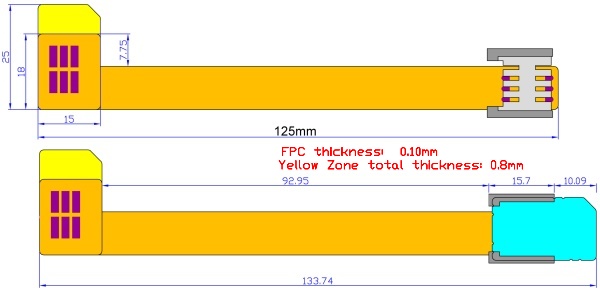

Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic   Tawan   Taiwan 2 Mirror   China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
