ホーム > 製品情報 > エクステンダ系製品 > B18 Series

  B18
(microSDカード用延長フレキケーブル)


Introduction:

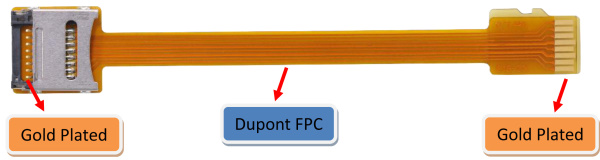

B18 Series Micro SD card Extender is a debug and test tool. Design the FPC cable for flexible use.
It allows a Micro SD Card to be extended from the host slot for SD interface.
It’s especially designed to save valuable labor and time in the production environment. The MicroSD extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers, or use for mobile phone micro SD test protection.

B1810C


B1809A

B1816B

B1816B-AP



B1810C 同梱品一覧

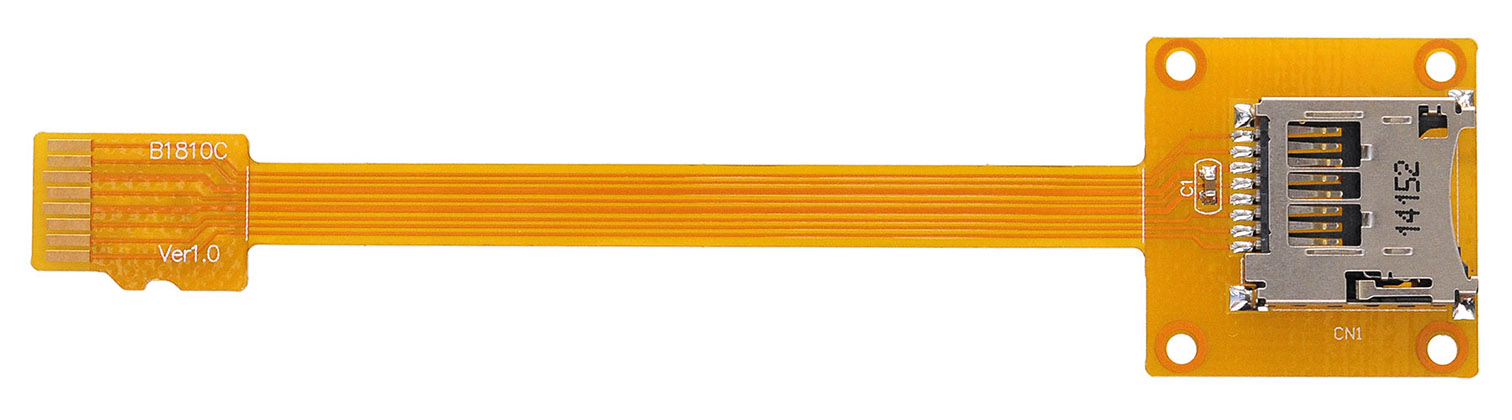

B1810C
(microSDカード用延長フレキケーブル) Length:10cm


B1809A 同梱品一覧

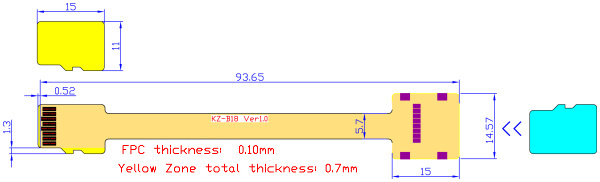

B1809A
(microSDカード用延長フレキケーブル) Length:9.4cm


B1816B 同梱品一覧

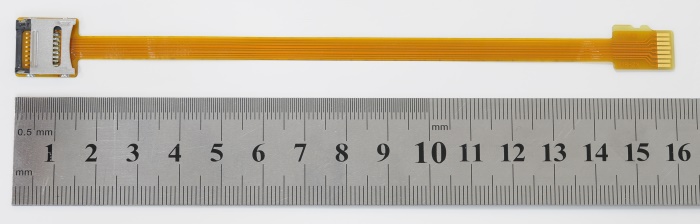

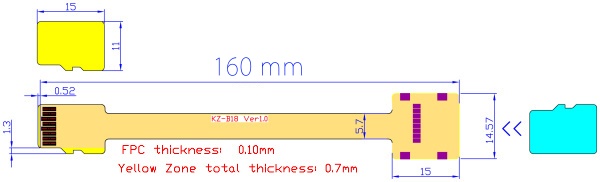

B1816B
(microSDカード用延長フレキケーブル) Length:16cm


B1816B-AP 同梱品一覧

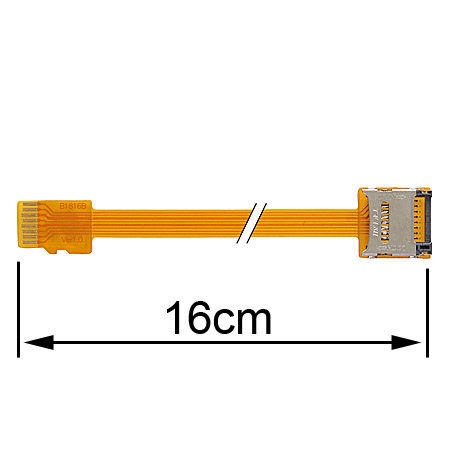

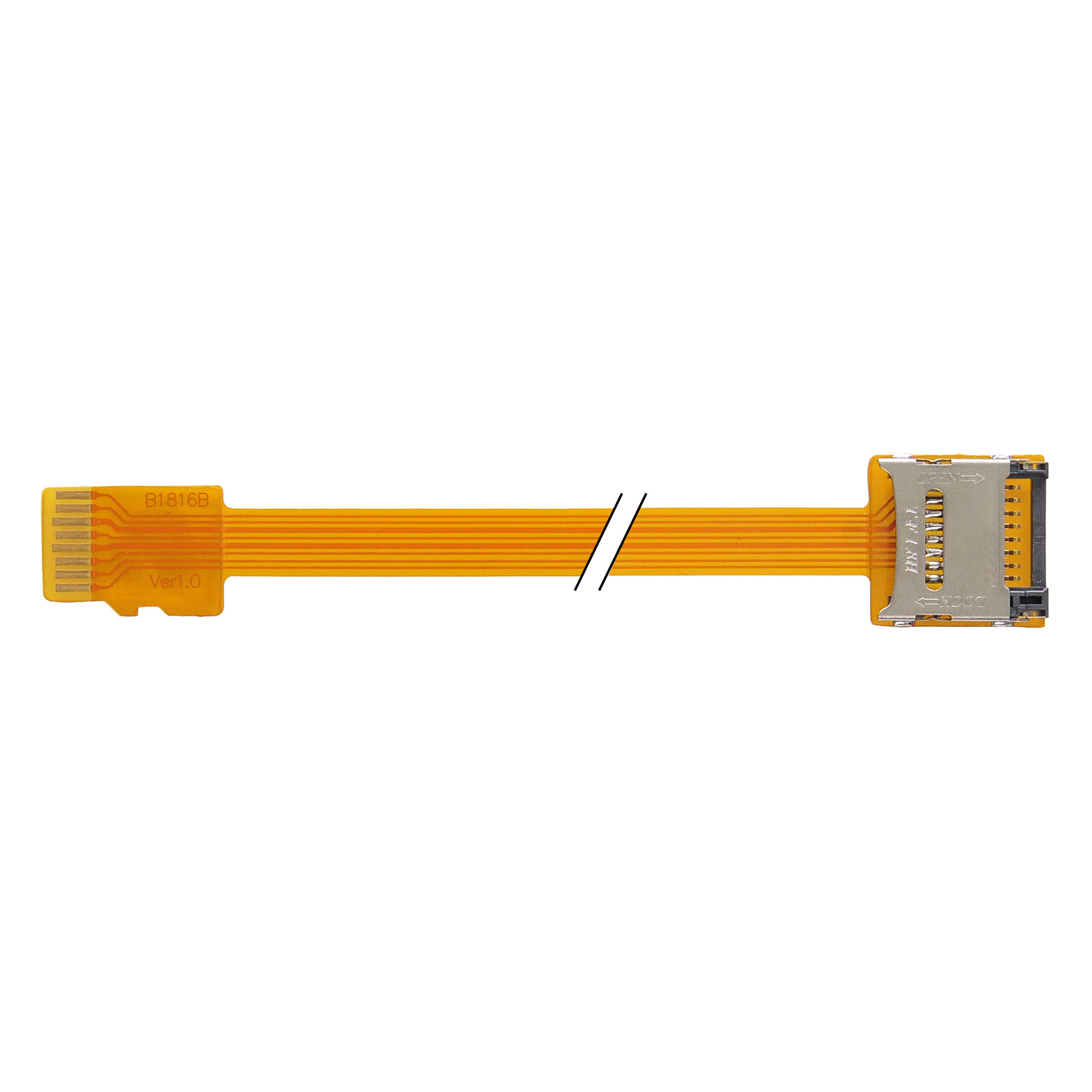

B1816B-AP
(microSDカード用延長フレキケーブル) Length:16cm


ドキュメントダウンロード
Brief   Taiwan   Taiwan 2 Mirror   China Mirror
B1809A Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
B1810C Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
B1809A 3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
B1816B 3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic   Tawan   Taiwan 2 Mirror   China Mirror
SD Extender comparison  Taiwan  Taiwan 2 Mirror  China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
