    M2EX
(M2用エクステンダ)


Introduction:

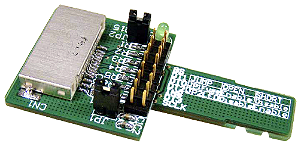

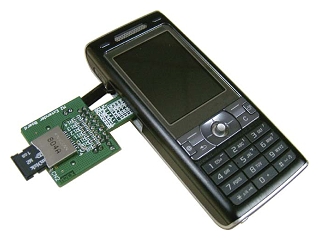

The M2 Extender 1.0 is a debug and signal detection tool for Memory Stick Micro Card. It allows a M2 card to be extended from the host slot for full access to the all of signal pins. It also allows application of other Memory Stick Memory Card on the equipment which has M2 card interface.

It is especially designed to save valuable labor and time in the production environment. The M2 extender 1.0 is designed to minimize the signal degradation effects of the extender by proven design techniques. Separate Vcc and ground planes provide a low inductance path to the host’s power supply.

The tool has been designed with the engineer in mind. Capable of power (voltage and current) measurement and logic analyzer integration “in-line” for fast development cycles. A clearly marked jumper header allows probing of all of pins. The M2 extender has the function of overcurrent protection with PTC fuse. It’s also a powerful tool for engineers, or use for factory test protection.

The M2 extender is constructed of high quality components for years of trouble free service.

        Features


  • Application of Memory Stick Memory Card on the equipment which has M2 card interface.
  • All signal pins are clearly marked.
  • Power and ground can be isolated for power measurements.
  • LED indicates powers status.
  • Adds dumping resisters for all of signals.
  • Vcc bypassed for clean power.
  • Supports both MS & M2 Cards
  • High quality connectors for long service life.
  • Over-current protection with PTC fuse.
  • Passive adapter unnecessary.

         Support Card Type:


  • MS Card , MS Pro Card , MS Duo Card , MS Pro Duo Card , MS Pro-HG , M2 Card

        Dimension


  • Width: 32.00mm
  • Length: 60.00mm
  • PCB Thickness :1.20mm



M2EX Package Contents
M2EX (M2 Extender Board) x1


Documents Download
Brief (PDF):  Taiwan  Taiwan 2 Mirror  China Mirror
Dimension (PDF):  Taiwan  Taiwan 2 Mirror   China Mirror
Schematic (PFD):  Taiwan  Taiwan 2 Mirror  China Mirror
