    MSEX
( MS-HG/M2用エクステンダ)


Introduction:

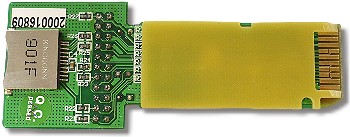

The MS Extender 1.0 is a debug and signal detection tool for Memory Stick and M2 card. It allows a Memory Stick card to be extended from the host slot for full access to the 14-pin interface.
It’s especially designed to save valuable labor and time in the production environment. The MS extender 1.0 is designed to minimize the signal degradation effects of the extender by proven design techniques. Separate Vcc and ground planes provide a low inductance path to the host’s power supply.

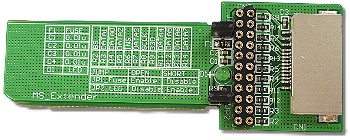

The MS extender has the function of over-current protection with PTC fuse. A clearly marked jumper header allows

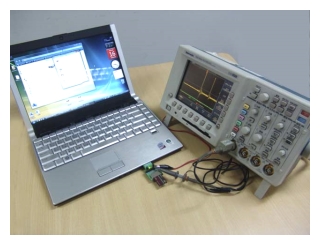

probing of all 14 signal and power pins. It’s also a powerful tool for engineers,or use for factory test protection.
MS extender is constructed of high quality components for years of trouble free service.

        Features


  • Test connector for all of signal and power pins
  • Any signal can be isolated with jumper block
  • Power and ground can be isolated for power measurements
  • LED indicates power status
  • Adds dumping resisters for all of signals
  • Vcc bypassed for clean power
  • Supports both MS/HG and M2 cards
  • High quality connectors for long service life
  • Over-current protection with PTC fuse
  • Passive adapter unnecessary

         Support Card Type:


  • MS , MS Duo , MS PRO , MS PRO Duo , MagicGate MS Duo , MS I/O Expansion , MS-Rom , MS Duo-Rom , MagicGate MS , MS PRO-HG Duo , M2

        Dimension


  • Width: 32.00mm
  • Length: 83.17mm
  • PCB Thickness :1.3mm Max


MSEX 同梱品一覧
MSEX (MS Extender Board) x1


Documents Download
Brief(PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
