    DGF108A
(802.11ac WiFi with BT4.0 Combo NGFF Card)


            Complete Solution for WiFi and Bluetooth.

    Introduction of Products


Bointec DGF108A is an dual band 802.11ac/b/g/n Dual- Band WiFi + Bluetooth NGFF adapter. It is a 2T2R (WiFi/BT co-existence supported) technology, with 20/40/80MHz and 256-QAM to maximize bandwidth.
Bointec DGF108A lets you move at the speed of life with faster speeds (up to 867 Mbps, 1~3Mbps EDR for Bluetooth), higher capacity, broader coverage and longer battery life. Dramatically reshapes your connected
experience.

Higher throughput wireless networking-- adopting the latest 802.11ac solution, Bointec DGF108A is ideal for next-generation high throughput enterprise networking solution.

As usual DGF108A incorporated with advanced security encryption, such as WEP, WPA, WPA2, and 802.1x for secure wireless connection.

        Product Highlight



    BT Feature:
  • Bluetooth V4.1, V4.0 LE, V3.0+HS, V2.1+EDR system, backwards compatible
  • Support Class I
  • BT transmission speed including 1M, 2M and 3Mbps EDR operations
  • Support for Simple Pairing (SP) and Enhanced Inquiry Response
    (EIR)function
  • Support for SCATTERNETandPICONET
  • HCI USB interfaceto work with Windows upper layer stack
    Wi-Fi Feature:
  • Operate at ISM frequency Band(2.4/ 5 GHz)
  • IEEE Standards Support802.11ac, 802.11a, 802.11b, 802.11gand 802.11n
  • Wi-Fi using mini PCIe interface
  • Enterprise levelsecurity supporting: WPA, WPA2
  • Support 2transmission and 2receiving,up to 867Mbps(Physical
    Rate)in downstream and upstream



Product Name 802.11ac WiFi with BT4.0 Combo NGFF Card
Model Name DGF108A

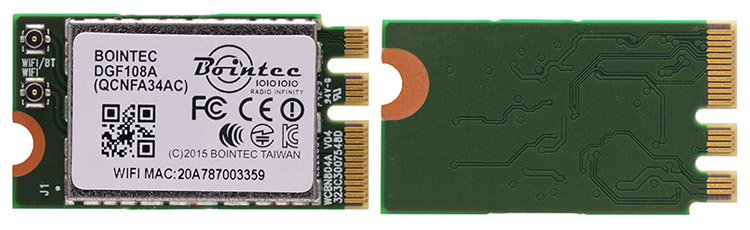

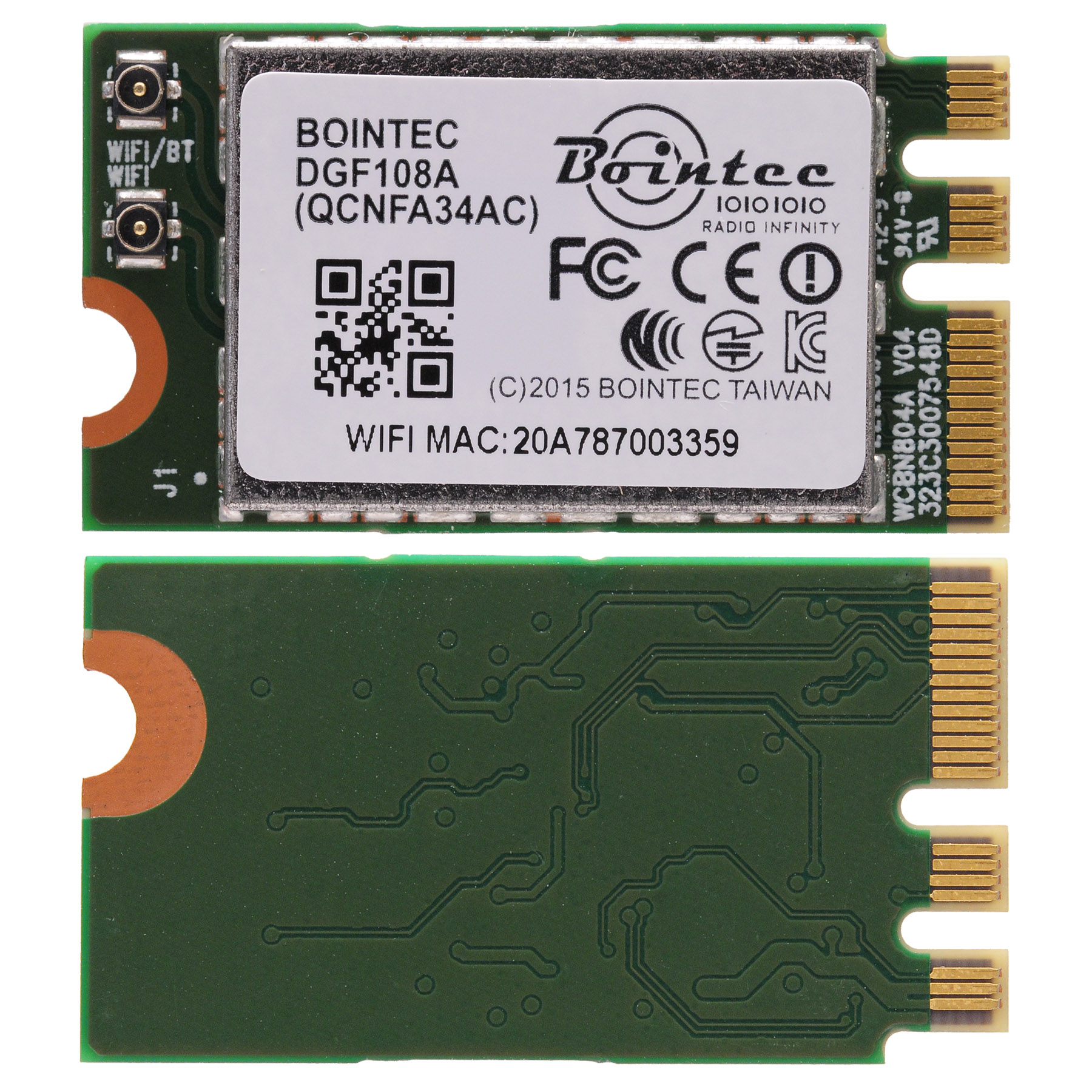

Product Picture
產品圖像
製品画像


Bluetooth

Standard Bluetooth V4.1, V4.0LE, V3.0+HS, V2.1+EDR,
Bus Interface USB2.0
Data Rate 1 Mbps, 2Mbps and Up to 3Mbps
Modulation Scheme GFSK, ð/4-DQPSK and 8-DPSK
Frequency Range 2.402~2.480 GHz
Transmit Output Power 0? Output Power ? +10; Class 1Device
Receiver Sensitivity < 0.1% BER at -70dBm
Software BluetoothSuite

WiFi

Standard IEEE802.11ac,IEEE802.11a , IEEE802.11b , IEEE 802.11g , IEEE 802.11n
Bus Interface PCI Express
Data Rate 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: MCS 0 to 15
802.11ac: MCS 0 to 9
Media Access Control CSMA/CA with ACK
Modulation Techniques 802.11ac: 256QAM, 64QAM, 16QAM, QPSK, BPSK
802.11a: 64QAM, 16QAM, QPSK, BPSK
802.11b: CCK, DQPSK, DBPSK
802.11g: 64QAM, 16QAM, QPSK, BPSK
802.11n: BPSK, QPSK, 16QAM, 64QAM



Network Architecture Ad-hoc mode (Peer-to-Peer )
Infrastructure mode
Operation Channel 5GHz
12: – United States
19: – Europe
8: – Japan
2.4GHz
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Frequency Range 802.11a / ac: 5.15~5.85 GHz
802.11bg :2.412 ~ 2.4835 GHz

Electronics characteristics

Operating Voltage 3.3 V ±9% I/O supply voltage
OS Supported

Microsoft Windows

Antenna Type Dual MHF4 Antenna Connectors



Operating Temperature -10° ~ +70°C
Storage Temperature

-40° ~ +80°C

Operating Humidity 15%~95%, non-condensing
Storage Humidity

Max.95%, non-condensing
