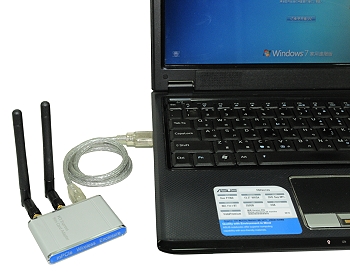

USBMA-8191 (802.11b/g/n USB Wireless Adapter)
Overview:
The USBMA-8191 is a high speed USB 2.0 wireless adapter supporting 802.11n, 802.11b and 802.11g with two detachable antennas that can be installed easily onto any desktop or laptop with an available USB port.
High value, rock solid support, and stylish form factor make the USBMA-8191 the perfect choice for those who want the ease of using the USB form factor to reach 802.11n 300M speeds.

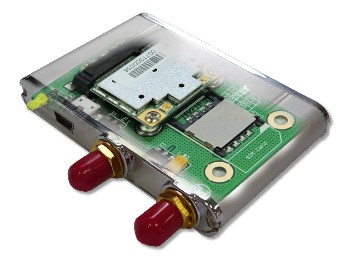

USBMA-8191 with AW-NU119H Wireless USB Mini Card(half size) |
RTL8191SU (AW-NU119H Wireless USB Mini Card) half size  |
IPX to RP-SMA cable |
 |
Function
- High speed wireless connection up to 300Mbps
- Low power consumption and high performance
- Enhanced wireless security
- Compliant with IEEE802.11n Draft 3.0 standard, uses DSSS, OFDM, BPSK, QPSK, CCK and QAM baseband modulation technologies.
- 2 RP-SMA antennas to support 1(Transmit) x 2(Receive) Diversity technology
- WEP 64-bit and 128bit encryption, WPA, WPA2 security
Specification
- Model Name: USBMA-8191
- Host Interface: USB interface
- Frequency Range: 2.4GHz ISM Bands 2.412-2.472, 2.484GHz
- Data Rate 802.11b: 11,5,5,2,1 Mbps
- Data Rate 802.11g: 54,48,36,24,18,12,9,6 Mbps
- Data Rate 802.11n: up to 300Mbps
- Major Chipset: Realtek RTL8191SU
- Regulatory: CE/FCC/RoHS compliant
Notice
- No driver CD accompanied.
- RTL8191SU Driver download
System Requirements:
- Desktop or NOTEBOOK with USB port
- Windows 2000, XP, Vista 32/64 Windows 7 or Linux
| USBMA-8191 Package Contents | |
| Unit price: US$ 42 | |
| USBMA (Wireless USB Mini Card Adapter) x1 with IPX to RP-SMA cable x2  |
RTL8191SU (AW-NU119H Wireless USB Mini Card) half size x1 |
U2AMTB60 (USB 2.0 A Male to B Mini 5 Pin Cable) x1 |
ANT2400Q2P3 (2.4GHz 2.15dBi Rubber duck antenna) x2  |
Screwdriver x1 |
Screw x2 |
| Documents Download | |||
| USBMA-8191 Brief (PDF): |  Taiwan 1 |
 Taiwan 2 Mirror |
 China Mirror |
| RTL8191SU Driver download | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| IPX cable brief (PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| ANT2400Q2P3 (2.4GHz Antenna) brief | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| Compatibility List(PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| USBMx functions comparison: | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
