概要
M2P4A はデスクトップにPCIeタイプのM.2(NGFF) SSDモジュールをHDDカードとして利用するためのアダプタです。
M.2スロットはKeyMで最大2280サイズ/22mm幅80mm長のモジュールの取り付けが可能で、PCIe Gen3 / 8Gpbsに対応しており最大32Gbpsでのデータ伝送が可能です。

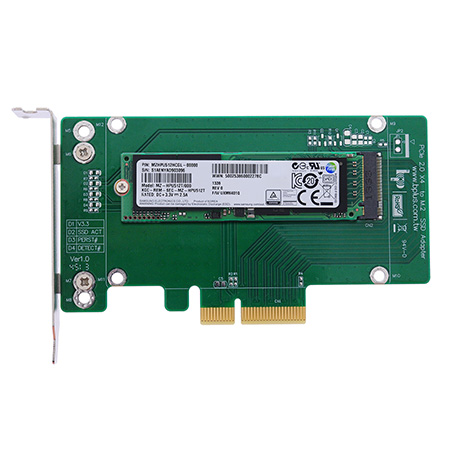

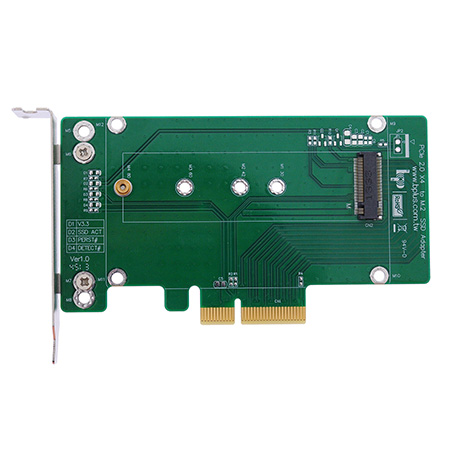

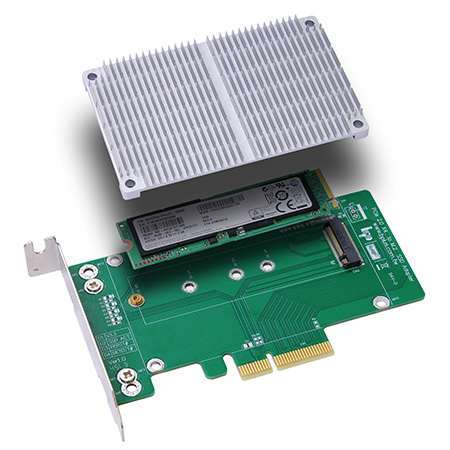

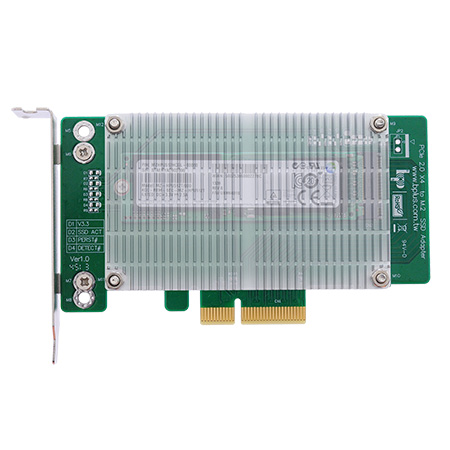

ヒートシンクを取り付けることでSSDモジュールへの熱負担を低減しています。
Samsung XP941など、高速M.2 SSDモジュールの利用に最適です。
|
機能一覧
- デスクトップとノートPCにPCIe M.2 SSD をPCIe x4に変換
- 専用デバイスドライバ不要
* 一般的にM.2 PCIe SSDは、標準SATA AHCIコントローラおよびそれに接続されたドライブとして認識されます。
|
|
仕様一覧
- M.2 SSDをPCIe X4に変換するアダプタ
- M.2 Specification Revision 1.0準拠
- M．2カードサイズ： 最大2280 (80mm長)
2230/2242/2260/2280
- M.2 Socket 3 PCI-e SSDモジュールサポート
PCIe Gen3 X4接続
- M.2モジュール：Key M
ヒートシンク付属：92x57x8 mm
* SSDモジュールに取り付け
|
|

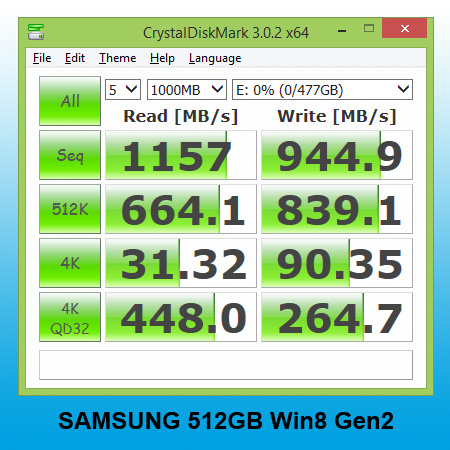

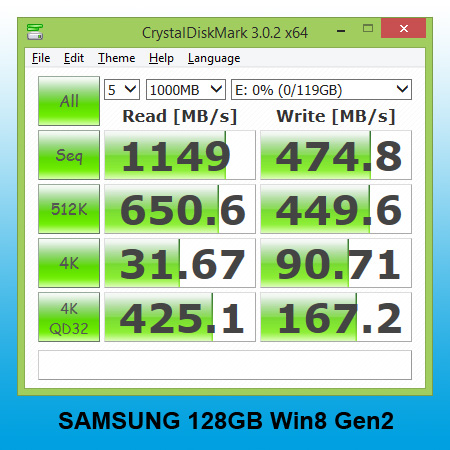

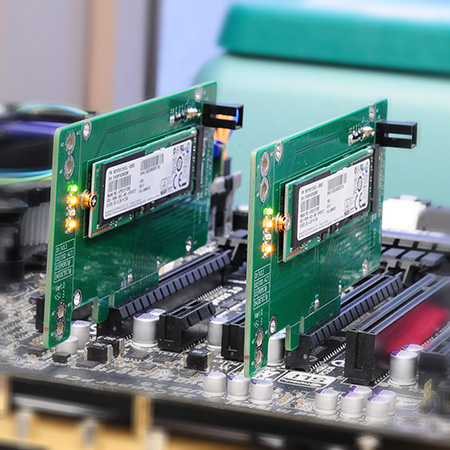

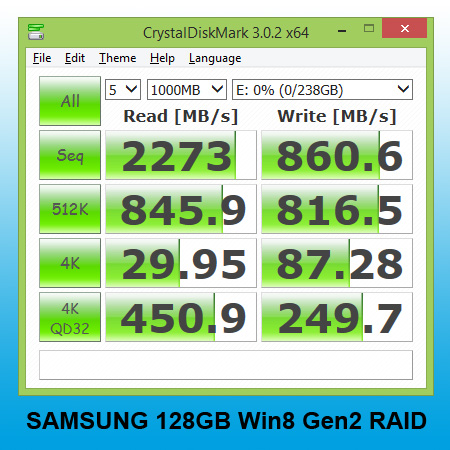

Boot from M.2 SSD storage.
We successfully installed the system through M2P4A Samsung SSD, and the success of the boot.
Operating platform follows:
CPU: Intel® Pentium® Processor G3258
MB: ASROCK Z97 Killer
OS: Windows 8.1 64bit
Adapter : M2P4A
SSD Hard Drive: Samsung XP941-128G M.2(NGFF) PCIe x4 SSD
Most Z97 chipset can support boot with PCIe’s storage.
You can simply install the OS but chose the M.2 storage.
The chose setup BIOS to boot from it.
Note:
Because z97’s BIOS is UEFI BIOS, make sure you boot from “UEFI: your storage name”.
- If you use generic’s USB dongle to install your OS, then you need to choose “UEFI: generic storage”.
- If you use CD ROM to install your OS, please choose “UEFI: WDC WD10EARS-OOMVMBO”
|

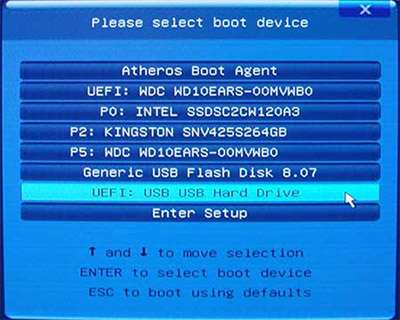

Boot selection:
 |
|
M.2 SSD to PCI-E from factor Adapter Compatibility List |
2013Dec13
Gerry Chen |
| Brand / Model |
Function |
Interface |
Size |
M2P4A |
M2P4S |
M2PS |
|
Note |
| Samsung SM951 512GB |
SSD |
PCIe key M |
2280 |
Pass |
Pass |
NG |
|
|
| Samsung SM951 256GB |
SSD |
PCIe key M |
2280 |
Pass |
Pass |
NG |
|
|
| Samsung SM951 128GB |
SSD |
PCIe key M |
2280 |
Pass |
Pass |
NG |
|
|
Samsung XP941
MZHPU128HCGM-00000 |
SSD |
PCIe key M |
2280 |
Pass |
Pass |
NG |
|
|
Samsung XP941
MZHPU256HCGL-00000 |
SSD |
PCIe key M |
2280 |
Pass |
Pass |
NG |
|
|
Samsung XP941
MZHPU512HCGL-00000 |
SSD |
PCIe key M |
2280 |
Pass |
Pass |
NG |
|
|
Samsung M.2 128G
MZ-NPD1280 |
SSD |
SATA key B / M |
2280 |
NG |
NG |
Pass |
|
|
Samsung M.2 128G
MZNTD128HAGM |
SSD |
SATA key B / M |
2280 |
NG |
NG |
Pass |
|
|
| BPLUS M2EM |
SSD |
SATA key B / M |
2242 |
NG |
NG |
Pass |
|
|
| ADATA AXNS341N-64GM-B |
SSD |
SATA key B / M |
2242 |
NG |
NG |
Pass |
|
|
| Sandisk X110 |
SSD |
SATA key B / M |
2242 |
NG |
NG |
Pass |
|
|
| Samsung MZNTD128HAGM |
SSD |
SATA key B / M |
2280 |
NG |
NG |
Pass |
|
|
Intel
SSD Pro 1500 Series |
SSD |
SATA key B / M |
2280
2242 |
NG |
NG |
Pass |
|
|
Intel
SSD 530 Series |
SSD |
SATA key B / M |
2280 |
NG |
NG |
Pass |
|
|
| Tohsiba THNSNHGDNT |
SSD |
SATA key B / M |
2280 |
NG |
NG |
Pass |
|
|
| LITE-ON L8T-128L6G-HP |
SSD |
SATA key B / M |
2280 |
NG |
NG |
Pass |
|
|
| |
|
|
|
|
|
|
|
|
| Brand |
Function |
Interface |
Size |
M2P4A |
M2P4S |
M2PS |
|
Note |

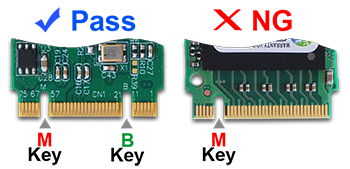

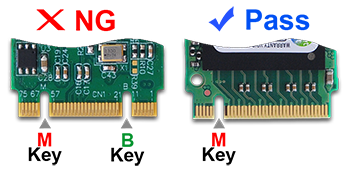

| Key M |
Key M |
Key B |
|
M2P4A / M2P4S (M.2 Key M)
Designed for PCIE x4 based M.2 (NGFF) SSD module
|
M2PS (M.2 Key B)
Designed for SATA based M.2 (NGFF) SSD module
|
|
|
| All of Model |
Where to buy? |
Special Information |
| M2P4A |
Web-shop |
M.2 key M to PCIe passive adapter |
| M2P4A-S128G |
連絡先 |
PCIe 3.0 x4 128G SSD Card |
| M2P4A-S256G |
連絡先 |
PCIe 3.0 x4 256G SSD Card |
| M2P4A-S512G |
連絡先 |
PCIe 3.0 x4 512G SSD Card |
Web-shop
| |
M2P4A
(PCIe 3.0 X4 to M.2 SSD アダプタ) x1
 |
JP0155
(標準PCI-Eブラケット) x1 |
専用平ネジ x1
 |
|
|
