USBMI-C   ( Wireless USB Mini Card Adapter ver1.1b)

Introduction:

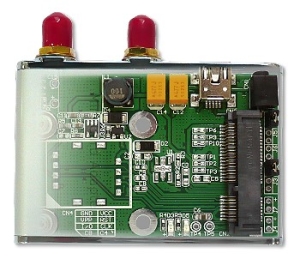

The USBMI-C adapter is designed for desktop PCs that convert Mini-Card to USB port.

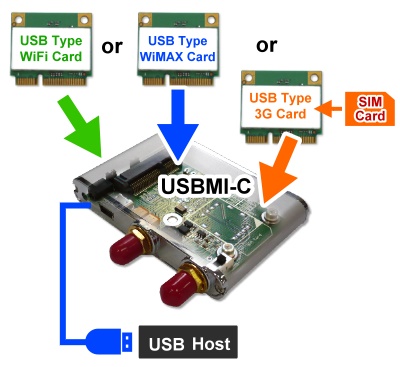

You can insert your USB type minicard such as 802.11a/b/g to this adapter then plug to USB port through USB cable.

Standard SIM card connector is NOT provided.

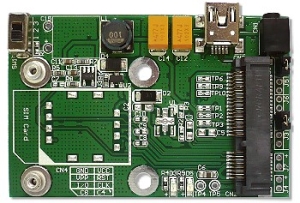

USBMI-C module



Features

Notice:
USBMI-C is USB passive adapter. Just only support wireless USB minicard. Can’t support PCIe minicard.
Please check compatibility list for detail.



Specification


USBMI-C-RPSMA Package Contents
Unit price: US$ 27
USBMI-C x1 with IPX to RP-SMA cable x2 IPX to RP-SMA cable
USB-Y-Line-2.0 (USB 2.0 Y-Line cable) x1 Screwdriver x1
Screw x2


USBMI-C-SMA Package Contents
Unit price: US$ 27
USBMI-C x1 with IPX to SMA cable x2 IPX to SMA cable
USB-Y-Line-2.0 (USB 2.0 Y-Line cable) x1 Screwdriver x1
Screw x2


USBMI-C module Package Contents
Unit price: US$ 17
USBMI-C module x1 USB-Y-Line-2.0 (USB 2.0 Y-Line cable) x1
Screw x2


option

P25AMTDC60 (USB A Male to DC Power Cable)
Unit price: US$ 3
3.3V AC Adapter (INPUT : AC110-240V~50/60Hz 250mA MAX
Output 3.3V 2.5A)
Unit price: US$ 12
ANT0918Q2P1-SMA
(900/1800MHz 2dBi Portable Antenna)
Unit price: US$ 3
ANT0918Q2P1-RPSMA
(900/1800MHz 2dBi Portable Antenna)
Unit price: US$ 3
ANT2300Q2P-SMA
(2.3GHz 2.15dBi Rubber duck antenna)
Unit price: US$ 4
ANT2327Q2P-SMA
(2.3-2.7GHz 2.15dBi Rubber duck antenna)
Unit price: US$ 4
ANT2427Q2A-SMA
(2.4-2.7GHz 3.5dBi Rubber duck antenna)
Unit price: US$ 4
ANT2400Q2P-RPSMA
(2.4GHz 2.15dBi Rubber duck antenna)
Unit price: US$ 3
ANT2400Q2P3-RPSMA
(2.4GHz 2.15dBi Rubber duck antenna)
Unit price: US$ 3
ANT2500Q2P-SMA
(2.5GHz 2dBi Rubber duck antenna)
Unit price: US$ 4
ANT2458Q5P-RPSMA
(2.4/5.8GHz Rubber Duck Antenna)
Unit price: US$ 10
ANT3500Q2P-SMA
(3.5GHz 2.5dBi Rubber duck antenna)
Unit price: US$ 4
ANT5800Q5P-RPSMA
(5.8GHz 5dBi Rubber Duck Antenna)
Unit price: US$ 12
ANT0918-IPX
(900/1800MHz 1dBi Internal PCB Antenna)
Unit price: US$ 3
RPSMA IPX 8cm
(U.fl / IPX to RPSMA female pigtail for wifi RF cable adapter)
Unit price: US$ 2
SMA IPX 8cm
(U.fl / IPX to SMA female pigtail for wifi RF cable adapter)
Unit price: US$ 2




USBMA, USBMV, USBMI, USBMS enclosure for wireless minicard comparison                           2011/Oct/24
USBMx  functions comparison
USBMA v1.1
USBMA v1.2f
USBMI
USBMI-C
USBMI-D
USBMV
USBMV-D
USBMS
USBMS-D
USBMS-E
USB2.0 interface
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
PCIe interface
No
No
No
No
No
No
No
No
No
No
AC/DC 3.3V external power input
No
No
No
Yes
Yes
No
Yes
Yes
Yes
Yes
External access LED
Yes
Yes
Yes
No
No
Yes
No
Yes
No
Yes x2
3.3V output current (typ.)
1500mA
1500mA
2000mA
2000mA
2000mA
2600mA
2600mA
2700mA
2700mA
2700mA
1.5V output current (typ.)
800mA
800mA
1000mA
0mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
By pass cap. for 3G card peak current
470uF
470uF
0.047F
470uF
0.047F
0.15F
0.15F
0.22F
0.22F
0.22F
SIM card connector
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes (Push)
Yes (Push)
Yes (Push)
Voice function
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
MiniCard dimension support
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half



Documents Download
Brief (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
Dimension (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
Schematic (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
IPX cable brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
USB 2.0 cable selection (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
900/1800MHz Antenna brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
2.3GHz Antenna brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
2.4GHz Antenna brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
2.5GHz Antenna brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
2.4 / 5.8GHz Antenna brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
3.5GHz Antenna brief (PDF):  Taiwan 1   Taiwan 2 Mirror   China Mirror
5.8GHz Antenna brief (PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
User manual(PDF):  Taiwan 1  Taiwan 2 Mirror   China Mirror
Compatibility List:  Taiwan 1  Taiwan 2 Mirror   China Mirror
USBMx functions comparison:  Taiwan 1   Taiwan 2 Mirror   China Mirror
