ホーム > 製品情報 > M.2 (NGFF)系製品 > M2MP3 Series

	M2MP3-A M.2 (NGFF) to mini PCI-E アダプタ (Second PCIe Lane Socket 1 , Key A, 最大寸法タイプ 3042)	M2MP3-E M.2 (NGFF) to mini PCI-E アダプタ (Second PCIe Lane Socket 1 , Key E, 最大寸法タイプ 3042)

Brief	Taiwan 1	Taiwan 2	China
M2MP3-A Dimension	Taiwan 1	Taiwan 2	China
M2MP3-A Schematic	Taiwan 1	Taiwan 2	China
M2MP3-A 3D Model	Taiwan 1	Taiwan 2	China
M2MP3-E Dimension	Taiwan 1	Taiwan 2	China
M2MP3-E Schematic	Taiwan 1	Taiwan 2	China
M2MP3-E 3D Model	Taiwan 1	Taiwan 2	China
Compatibility List	Taiwan 1	Taiwan 2	China
Web-shop

First Impression

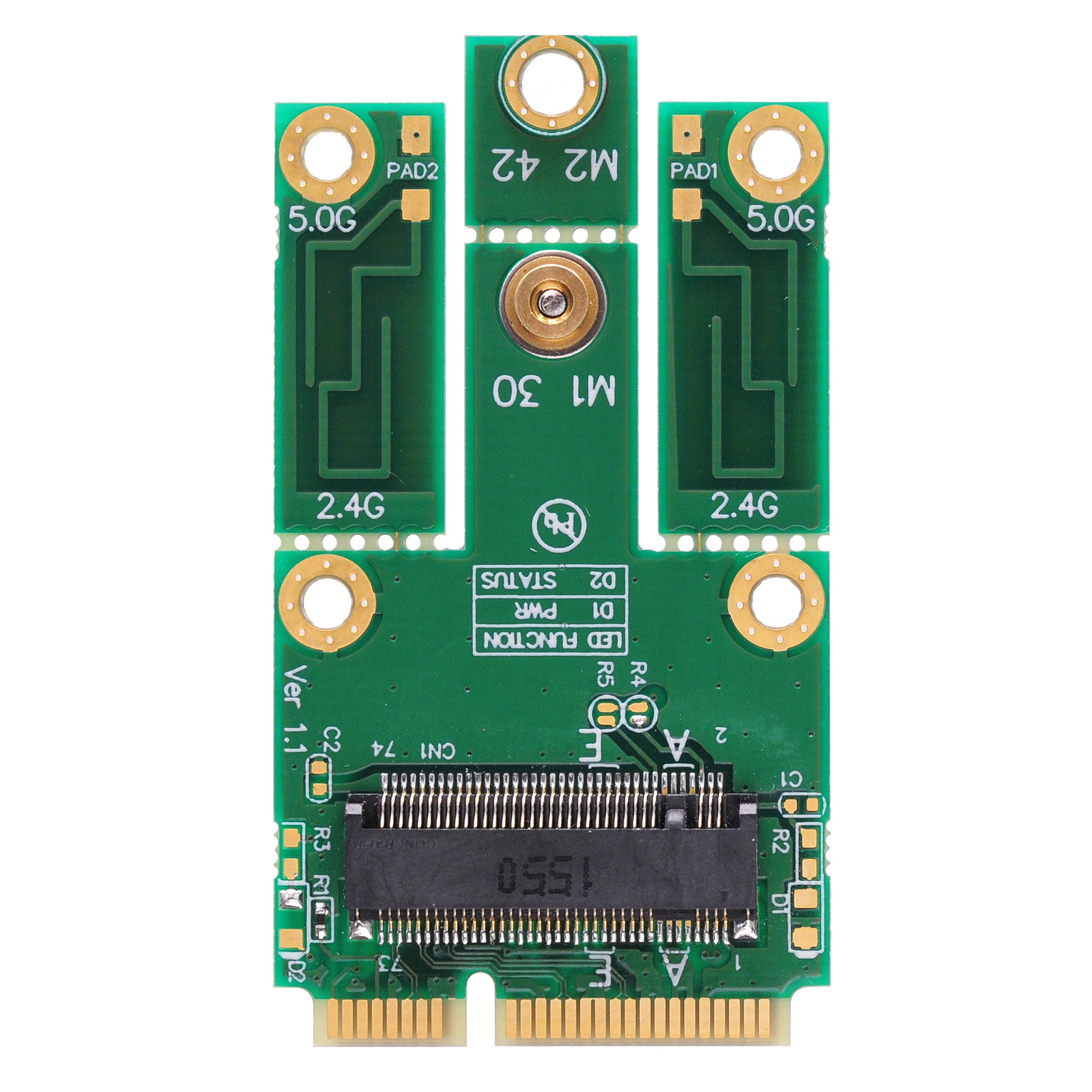

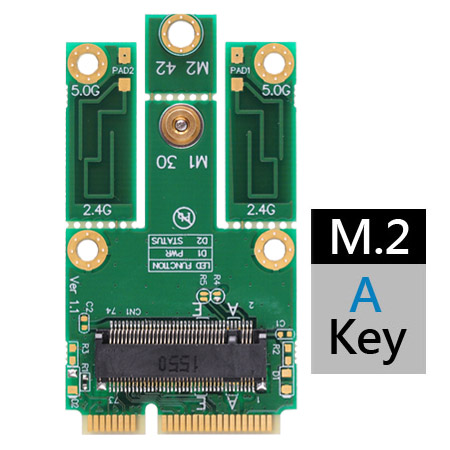

名稱 (Name) : M2MP3-A
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface): mPCIe side: PCIe + USB
M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key A
應用 (Application) : 　Intel® 17265 , 18260 , Atheros® W0096

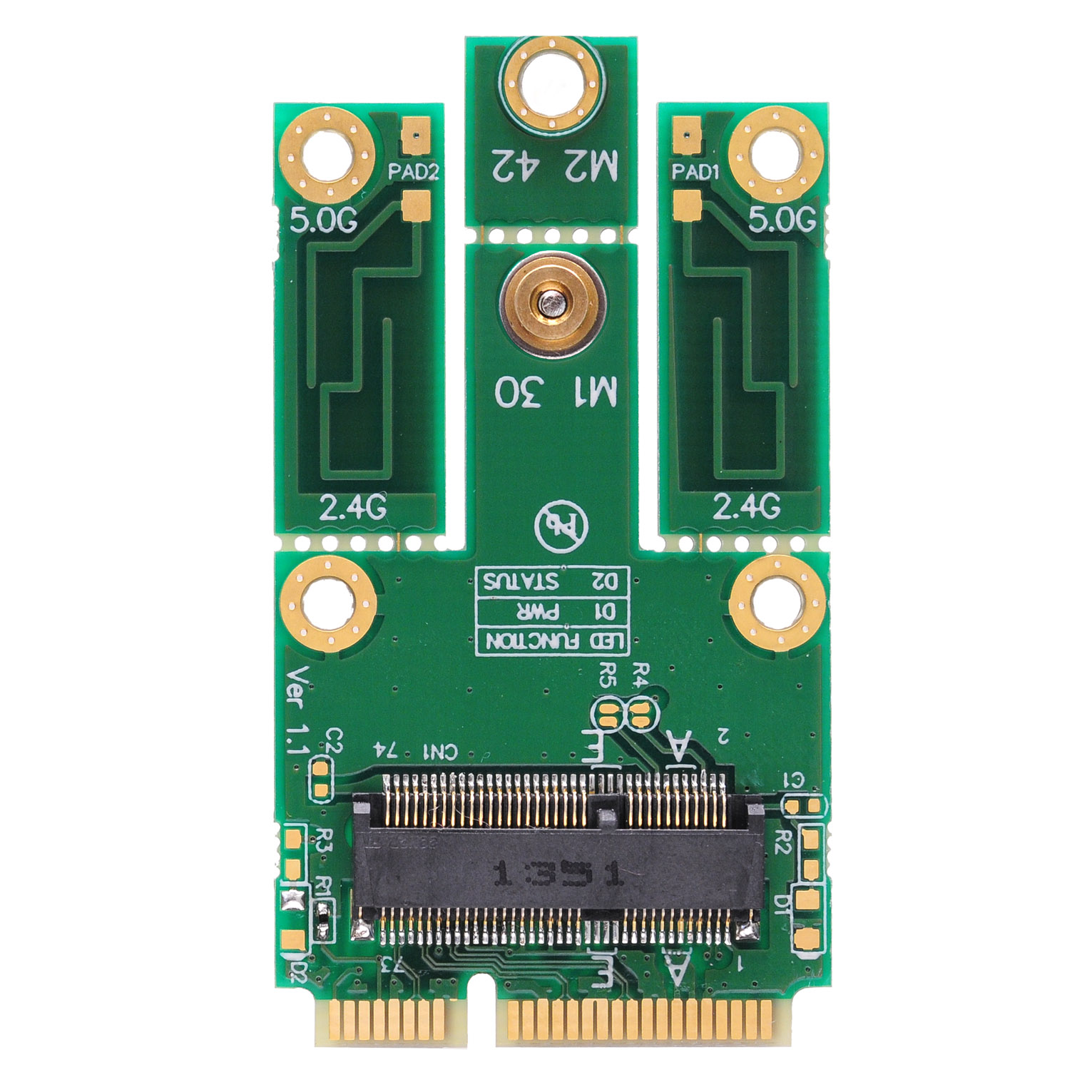

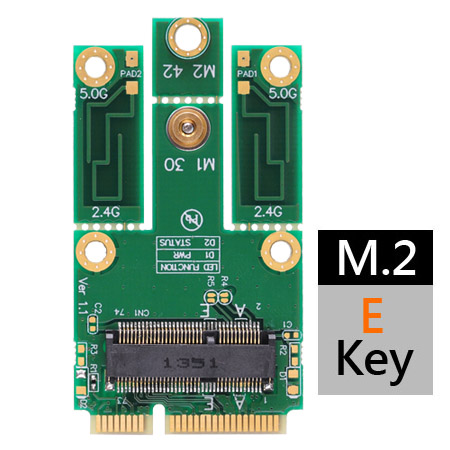

名稱 (Name) : M2MP3-E
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface): mPCIe side: PCIe + USB
M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key E
應用 (Application) : 　Intel® 17265 , 18260 , Atheros® W0096

Function

Allows user to use Second PCIe lane of M.2 Socket 1 Module to mPCIe Slot in the Desktop or Laptop.
Supports system bus interface: PCIe&USB2.0.
Supports USB interface of M.2 Card such as Bluetooth, 4G, LTE, 3G,CDMA, WWAN, HSPA, GPS, WiMAX.

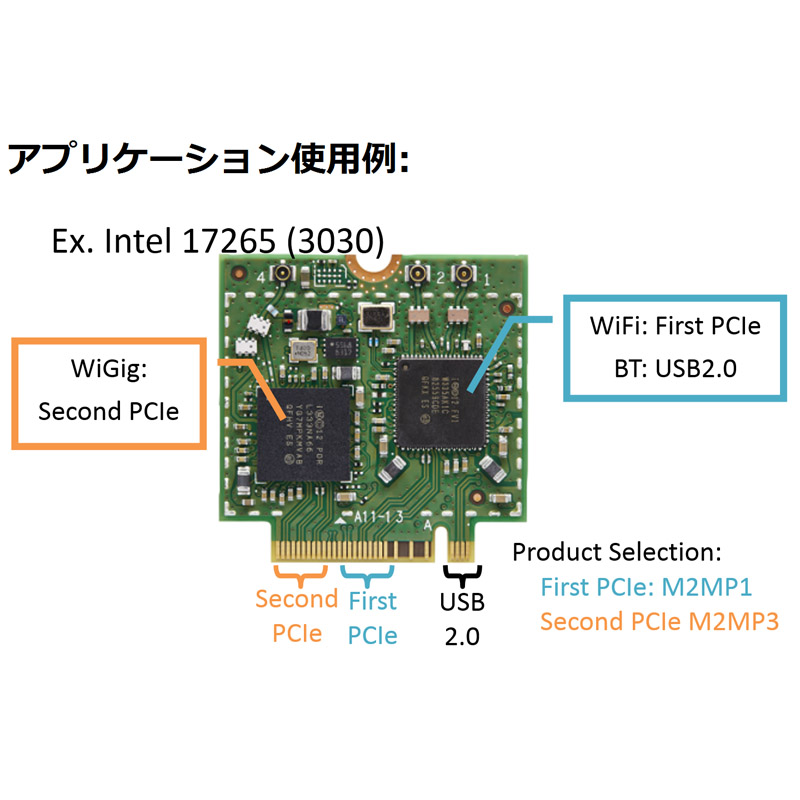

Support PCIe : 60 GHz WiGig (802.11ad) wireless application
* Most of WiGig device supported by second PCIe lane.
No drivers needed for this M.2 to mini PCI-E Card Adapter

Notice

For First PCIe Lane such as IEEE WLAN 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac application, please choose our another product: M2MP1 series.

Specifications

M.2 Specification Revision 1.0
PCI Express base Specification 1.1 (Up to 2.5Gpbs)
USB Specification Revision2.0
Mainly Support 2230/3030 M.2 Card
Ex. Intel 17265 , 18260 , Atheros W0096
Support M.2 Socket 1 with Second PCIe lane Module.
Support M.2 Key A/ E Card Type.
Support Full size and half size mPCIe slot

System Requirement

Mini PCI-E slot
Windows 2000, XP, Vista 32/64, Windows 7, Windows 8, Windows 10 or Linux

M.2 (NGFF) to mini PCI-E Adapter comparison
Model Name	Function	Interface	M.2 SPEC	Application	Module KEY	Support Card Type
M2MU2	M.2 to mPCIe	USB 2.0	Socket 2 SSIC-based WWAN	3G/4G/LTE module	B	2230/2242/3030/3042
M2MP1	M.2 to mPCIe	PCIe & USB2.0	Socket 1 First PCIe Lane	wireless+BT module	A	2230/2242/3030/3042
M2MP1-E	M.2 to mPCIe	PCIe & USB2.0	Socket 1 First PCIe Lane	wireless+BT module	E	2230/2242/3030/3042
M2MP3-A	M.2 to mPCIe	PCIe & USB2.0	Socket 1 Second PCIe Lane	WiGig+BT module	A	2230/2242/3030/3042
M2MP3-E	M.2 to mPCIe	PCIe & USB2.0	Socket 1 Second PCIe Lane	WiGig+BT module	E	2230/2242/3030/3042
M2MS1	M.2 to mSATA	SATA	Socket 2 SATA-based	SATA SSD module	B / B+M	2230/2242/3030/3042
