USBMA (無線通信MiniCard用USBアダプタ ver1.1)



Introduction:
The USBMA adapter is designed for desktop PCs that convert Mini-Card to USB port.
You can insert your USB type minicard such as HSPA(3.5G), GPS, 802.11a/b/g to this adapter then plug to USB port through USB cable.
Standard SIM card connector is provided.

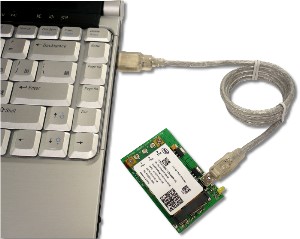

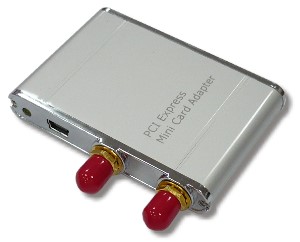

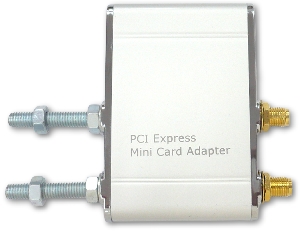

USBMA without IPX to RP-SMA cable USBMA with IPX to RP-SMA cable x2

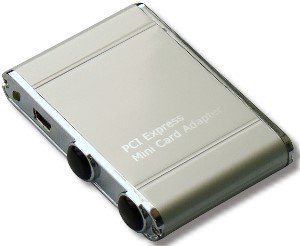

USBMA module

OPTION OPTION  USBMA with IPX cable x4

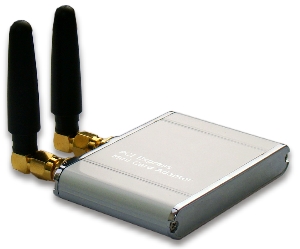

USBMA with ANT0918Q2P1
(900/1800MHz 2dBi Portable Antenna)

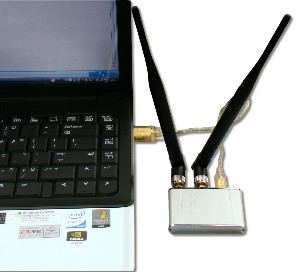

USBMA with ANT2400Q2P3
(2.4GHz 2.15dBi Rubber duck antenna)

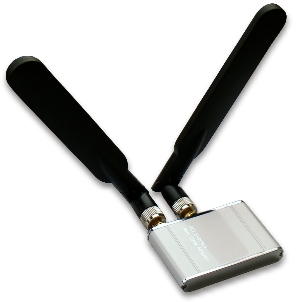

USBMA with ANT2458Q5P
(2.4/5.8GHz Rubber Duck Antenna)

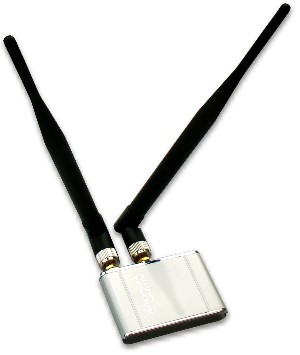

USBMA with ANT5800Q5P
(5.8GHz 5dBi Rubber Duck Antenna)


    Features

  • USB mini type-B connection to desktop or notebook PC.
  • Supports two primary system bus interface: USB.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC.
  • Support SIM card connector.
  • Support U.FL/IPX to RP-SMA pigtail Wifi RF cable adapter.
  • (Option) 900/1800 MHz 2dBi Portable Antenna.
  • (Option) 2.4GHz 2.15dBi Rubber duck antenna.
  • (Option) 2.4/5.8GHz Rubber Duck Antenna.
  • (Option) 5.8GHz 5dBi Rubber Duck Antenna.

Notice:
USBMA is USB passive adapter. Just only support wireless USB minicard. Can’t support PCIe minicard.
Please check compatibility list for detail.

    Specification

  • PCI Express Mini Card to USB adapter.
  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • Universal Serial Bus Specification Revision 2.0
  • Full/ Half -Mini Card dimension.
  • SIM Connector for CDMA HSDPA/HSUPA, UMTS, EDGE.
  • Access LED.
  • Operating Temperature Range : - 40℃ to +85℃
  • Operating Humidity Range : 5% to 95% RH


USBMA-RPSMA ver1.1 Package Contents
USBMA x1 with IPX to RP-SMA cable x2 IPX to RP-SMA cable
USB-Y-Line-2.0
(USB 2.0 Y-Line cable) x1
Screwdriver x1
Screw x2


USBMA-SMA ver1.1 Package Contents
USBMA x1 with IPX to SMA cable x2 IPX to SMA cable
USB-Y-Line-2.0
(USB 2.0 Y-Line cable) x1
Screwdriver x1
Screw x2


USBMA-module ver1.1 Package Contents
USBMA module x1 USB-Y-Line-2.0
(USB 2.0 Y-Line cable) x1
Screw x2



Buy Related Items


Antenna
IPX cable



    System Requirements

  • USB port
  • Windows 2000, XP, Vista 32/64, Windows 7
  • Linux


USBMA, USBMV, USBMI, USBMS enclosure for wireless minicard comparison                           2011/Dec/22
USBMx  functions comparison
USBMA v1.1
USBMA v1.2f
USBMI
USBMI-D
USBMV
USBMV-D
USBMS
USBMS-D
USBMS-E
USBMS-N15
USB2.0 interface
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
PCIe interface
No
No
No
No
No
No
No
No
No
No
AC/DC 3.3V external power input
No
No
No
Yes
No
Yes
No
Yes
Yes
Yes
External access LED
Yes
Yes
Yes
No
Yes
No
Yes
No
Yes x2
No
3.3V output current (typ.)
1500mA
1500mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
1.5V output current (typ.)
800mA
800mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
No
By pass cap. for 3G card peak current
0.047F
0.047F
0.047F
0.047F
0.15F
0.15F
0.22F
0.22F
0.22F
0.22F
SIM card connector
Yes
Yes
Yes
Yes
Yes
Yes
Yes (Push)
Yes (Push)
Yes (Push)
Yes (Push)
MIC/EAR connector
No
No
No
No
Yes
Yes
Yes
Yes
No
Yes
MiniCard dimension support
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Caution:
1. USBMS-E design for Ericsson module support wake function.
2. USBMS-N15 design for SierraWireless, LONGCHEER module using
