ホーム > SIM Card & SD Card Flexible Extender

   SIM Card Flexible Extender
   SD Card Flexible Extender
   Selection Guide
  • For example
  • Manufactory info
  • Normal SIM
  • Micro SIM
  • Nano SIM
  • Micro SD
  • Card Tray
  • Application

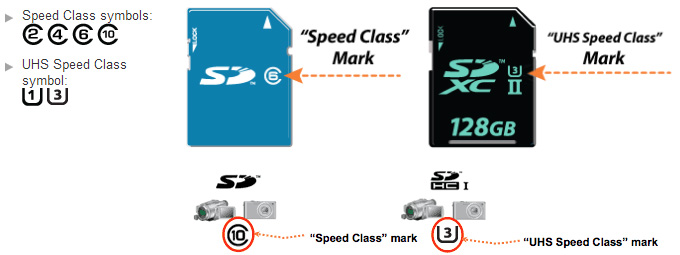

  • SIM & SD Card introduction

Part-Number     Dimension

B3114A

(KZ-B31)

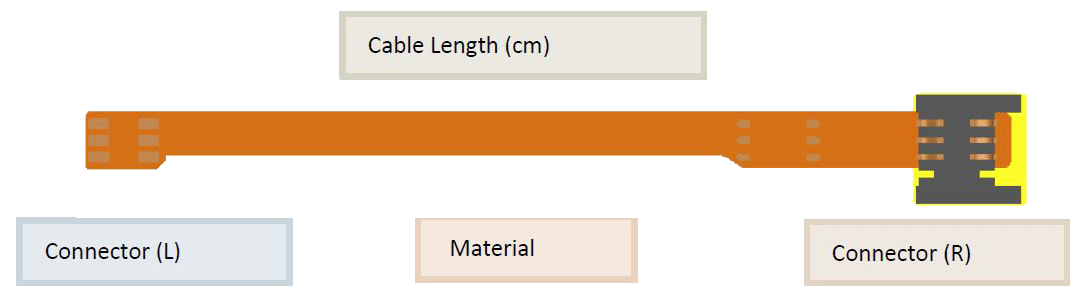

Part Number B3114A
FPC projects B
Plug form (L) 31 (Serial Number)
Connector (R)
cable length 14 (14CM)
Version A (1st)

More SIM extension cable example:
B3214A-DB32, Standard SIM to SIM flexible adapter
B3012A-BP, (Special ‘BP’ logo OEM Code)


   OEM info:

      [OEM info]　SIM, SD extension product components design info

Plug form(L) Plug

Connector(R) Conn

Length

Version

OEM Material

Full-Size SIM plug
SIM plug
Micro SIM plug
Nano SIM plug
SD plug
Micro SD plug
Golden finger pin
(Other)

Full-Size SIM conn
SIM conn
Full-Size SD conn
Connector
(Other)

05 (5CM)
10 (10CM)
14 (14CM)
18 (18CM)
(Other)

A, (1st)
B, (2nd)
C, (3rd )



-XX (OEM Code)


      FPC / FFC Material Spec
Vendor Material Flammability RoHS Operating temp. Solder shock Peel Strength Thickness Surface Resistance
DuPont FPC UL94 V-0 Compatible UL 796,180oC 288oC/10sec >1.8 N/mm 0.1mm >E16Ω
ShengYi UL94 V-0 Compatible / 288oC/10sec >1.2 N/mm 0.1mm >105 MΩ
Bplus FFC VW-1 Compatible AWM 20624, 80oC / / 0.1mm /

Manufactory info
SIM FPC Cable extension, SIM push-push connector, extender converter adapter 0.1mm thickness, jumper SD slot Card micro SD lock type connector test tool full size micro nano mini size 0.5 , 1.0 pitch FFC FPC FR4 PAD OEM EE 3D model design

Any kinds of cable you want to OEM, please contact us anytime.
Custom cables: Quantities up to 50PCS, lead time: 2 weeks.
Custom FPC cable: Charge NRE for US$350.
Custom cables ordered are non-refundable.

Urgently order production Capability 20K/PCS Monthly.
 Selection Guide



Normal SIM Extender Product List
    SIM Extender products 通用型小卡器

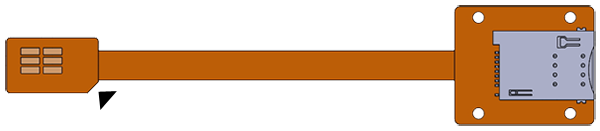

B5116A
SIＭカードアダプタ

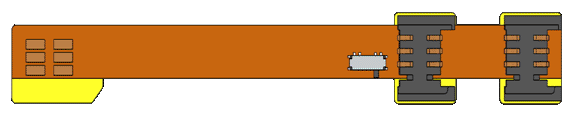

B5015A
デュアル SIＭカードアダプタ

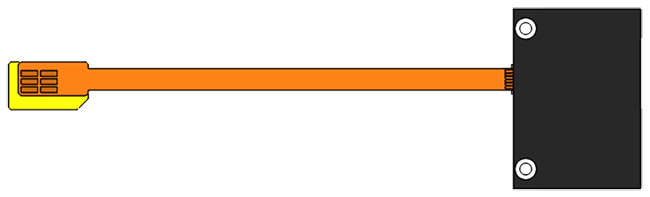

B4116A-DB32
SIM to Full Size SIM Extender
SIM卡轉大卡器
16CM

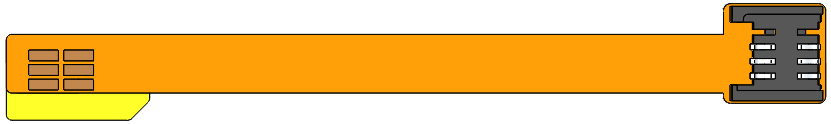

B1612A (KZ-B16)
SIM Extender 12CM

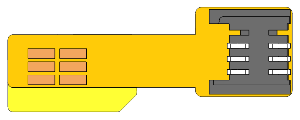

B1605B (KZ-B16-L5.5)
SIM Extender 5.5CM


    90o SIM Extender product 通用型左轉小卡器

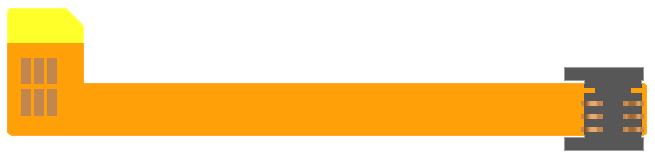

B1712A (KZ-B17),
125mmx25mm
SIM Extender 12.5CM
    180o SIM Extender product 通用型反向小卡器

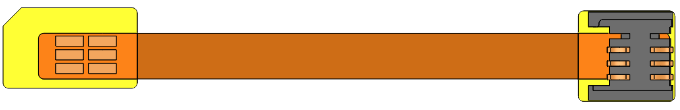

B3612A (KZ-B36)
SIM Extender non-push 12CM

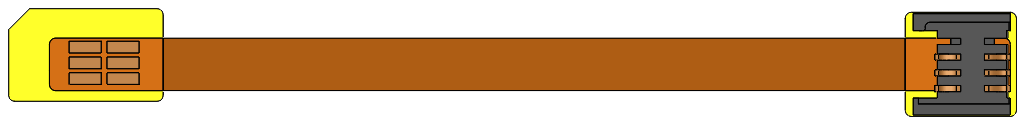

B3616B (KZ-B36-L)
SIM Extender non-push 16CM
B1216A (KZ-B12)
SIM Extender Push-Push type 16CM
B1226B (KZ-B12-L26)
SIM Extender Push-Push type 26CM
(263mmx32mm)

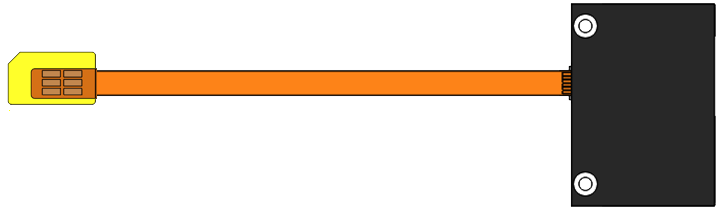

B4516A-DB43
SIM - フルサイズ SIM エクステンダ
SIM to Full Size SIM Extender
SIM卡轉大卡器
16CM

Micro SIM Extender Product List
    Micro SIM Extender小卡器 (for 蘋果iPhone4)

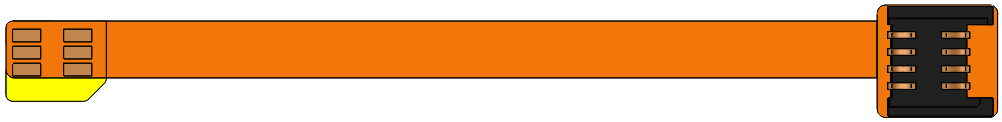

B2040A (KZ-B20 V1.0)
B2014B (KZ-B20 V1.1)
Micro SIM to SIM Extender
    180o Micro SIM Extender反向小卡器 (for 三星Galaxy)
B3014A (KZ-B30)
Micro SIM to SIM Extender (Galaxy)
B4215A (KZ-B42)
Micro SIM to SIM push type Extender
MicroSIM小卡器

Nano SIM Extender Product List
    Nano SIM Extender product 小卡器 for iPhone5
B3114A (KZ-B31)
Nano SIM to SIM Extender (iPhone5)
    Nano SIM Extender products 大卡器 for iPhone5

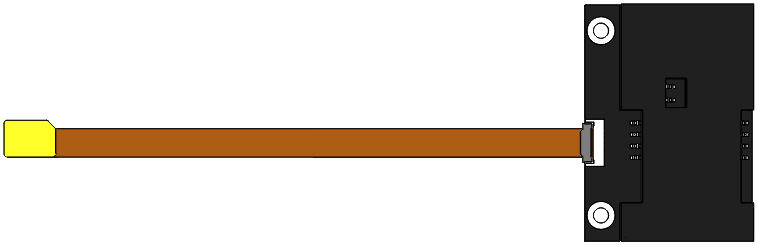

B3214A-DB32
(KZ-B32)
Nano SIM to full size SIM Extender
(iPhone5)
    180o Nano SIM Extender products 反向大卡器

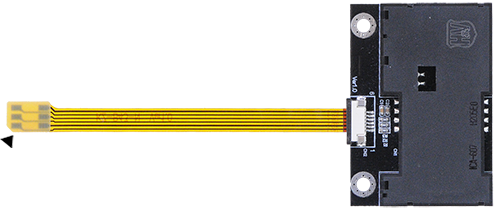

B4310A-DB43
(KZ-B43)
Nano SIM to full size SIM Extender
Nano SIM轉大卡器延伸板
Nano SIM –　フルサイズ SIM エクステンダ

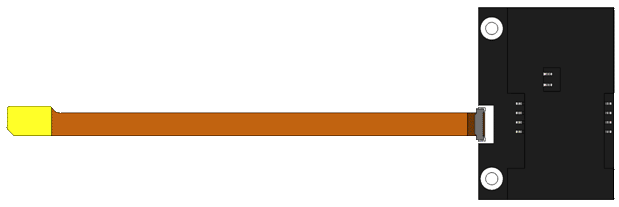

B4814A-DB43
Nano SIM to Full Size SIM Extender
Nano SIM轉大卡器 for iPhone5
Nano SIM ー フルサイズ SIM エクステンダ
    180o Nano SIM Extender products 反向小卡器
B4714A
Nano SIM to SIM Extender
nano SIM 轉 SIM Card 延伸板
Nano SIM ー SIM エクステンダ

Micro SD Extender Product List
    Micro SD Extender products For Android Phone 手机内存小卡器
B1809A
(KZ-B18)

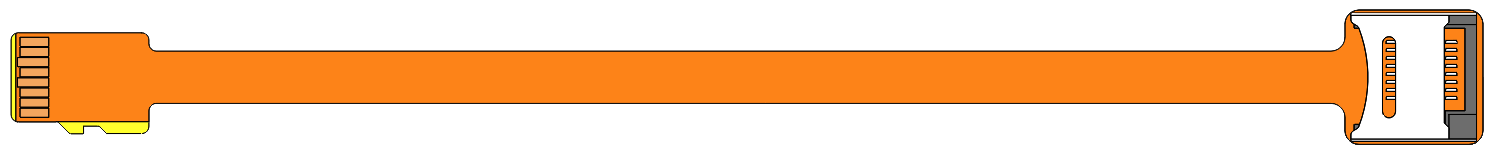

B1816B
(KZ-B18-L16)
    Micro SD to Full size SD Extender products For Android Phone 手机内存大卡器

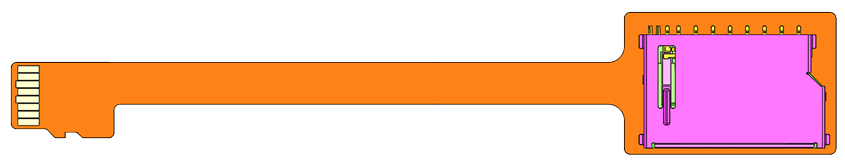

B4912A
Micro SD to SD FPC Extender

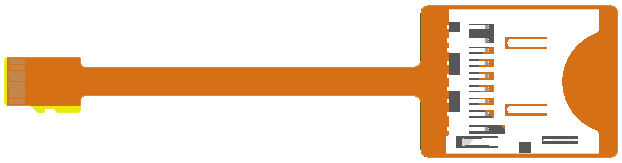

B1912A (KZ-B19 V1.0)
For Android Phone
B1908B-DB19 (KZ-B19 V1.1)
For Android Phone

Card Tray Product List
    Card tray for APPLE

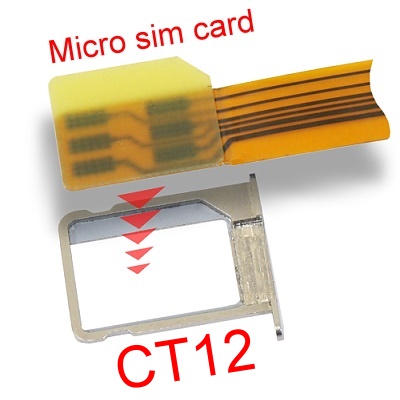

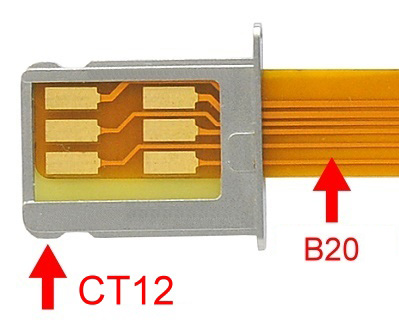

CT12
B20 series Micro SIM Card tray for iPhone4
iPhone4卡托
CT22
B31,B32 series Nano SIM Card tray for iPhone5
iPhone5卡托
    Card tray for SIM Product List
CT11
Micro SIM to normal SIM card tray
CT11G
Micro SIM to normal SIM card tray (GGMM)
CT21
Nano SIM to normal SIM card tray
    Card tray for micro SD Product List
CT31
Micro SD to full SD card tray



  • Apple Application
  • Samsung Application

Model APPLE　iPhone 5 APPLE  iPhone 5S(c) Apple
NEW iPad		 Apple
iPad-mini
Mobile Phone

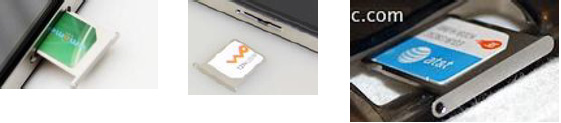

SIM form factor
nano SIM
FFC extension
B3113A (KZ-B31)
B3214A-DB32 (KZ-B32)

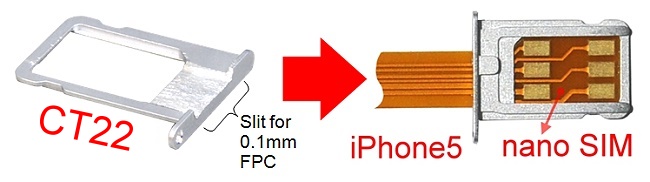

CT22 $5 Nano SIM Card tray for iPhone5, New iPad
CT23 $5 Nano SIM Card tray for iPad-mini

CT22, B3113A, B3214A-DB32

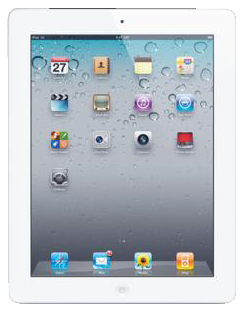

Model APPLE　iPhone 4 APPLE  iPhone 4S Apple iPad Apple iPad2
Mobile Phone
SIM form factor
 Micro SIM
FFC extension
B3113A (KZ-B31)
CT12

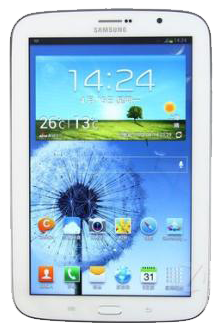

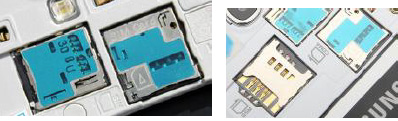

Model Samsung Note2 Samsung Note3 Samsung S3 Samsung S4 Samsung Note8.0
Mobile Phone
SIM form factor
Note2   Note3  S3 S4Note8.0
Micro SIM
FFC extension
B3014A (KZ-B30)

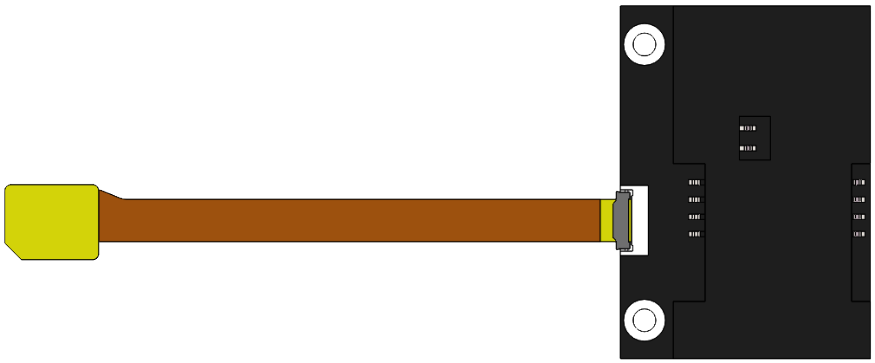

B4010A-DB43
(KZ-B40-DB43)

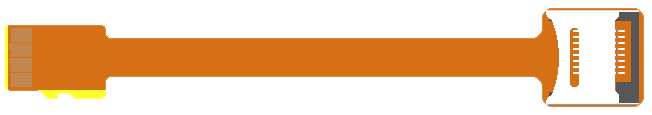

B1810A (KZ-B18)

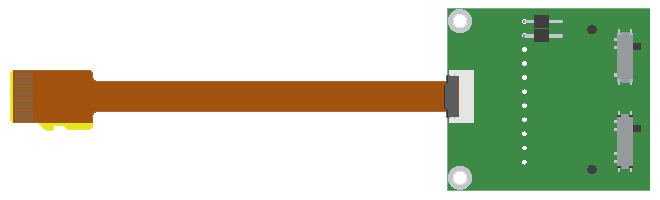

B1912B-DB19
(KZ-B19-DB19 V1.1)

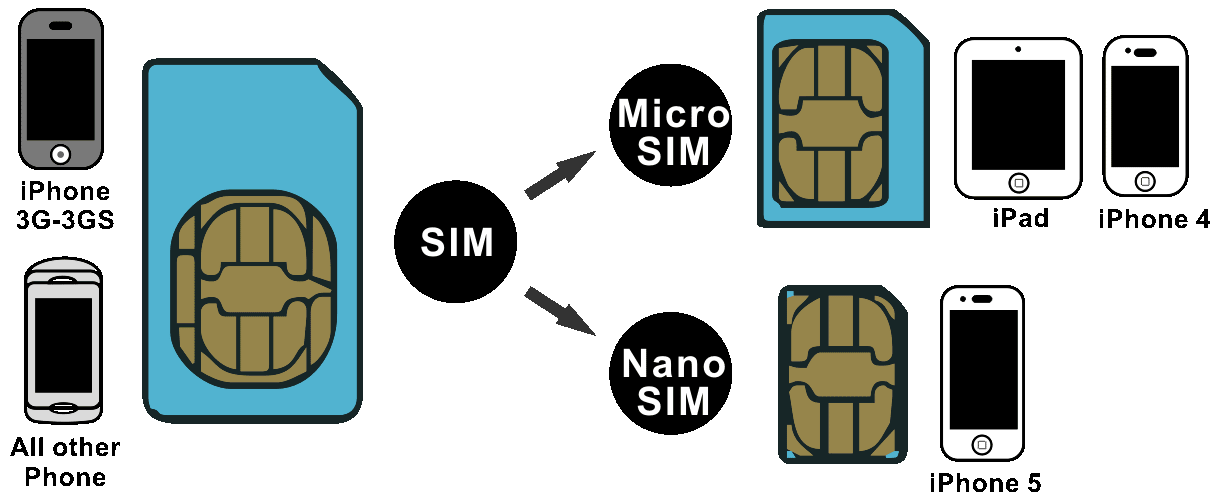

     SIM thickness
SIM Card Size Length (mm) Width (mm) Thickness (mm) Real Thickness (mm)

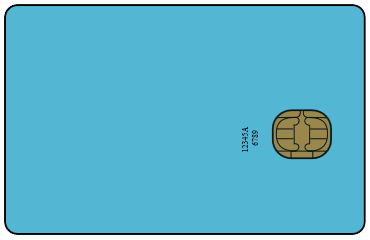

Full-size (FF) 85.60 53.98 0.76 0.80 or OEM
Mini-SIM (2FF) 25.00 15.00 0.76 0.80 or OEM
Micro-SIM (3FF) 15.00 12.00 0.76 0.75 or OEM
Nano-SIM (4FF) 12.30 8.80 0.67 0.70 or OEM
Embedded-SIM 6.00 5.00 <1.0 Embedded-SIM

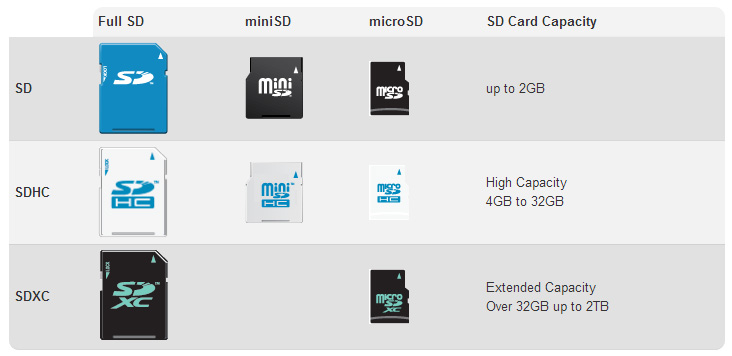

     SD thickness
SD Card Size Length (mm) Width (mm) Thickness (mm) Real Thickness (mm)
Full-size SD 24.00 32.00 1.40 1.40 or OEM
Micro SD 11.00 15.00 0.75 0.75 or OEM
