   MM4U-DB4U
SIMカードコネクタ搭載M.2 Key B Cardアダプタ





Brief Taiwan 1 Taiwan 2 China

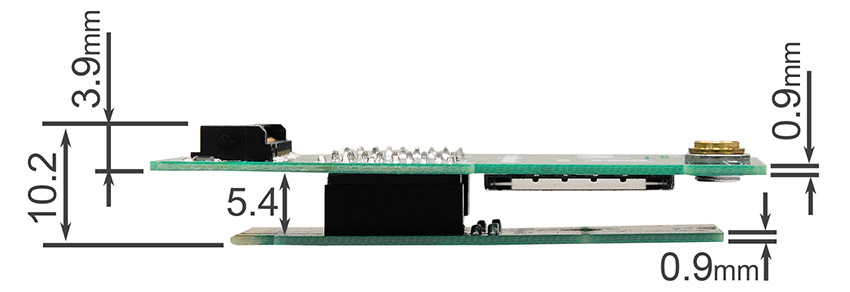

Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Web-shop


    概要

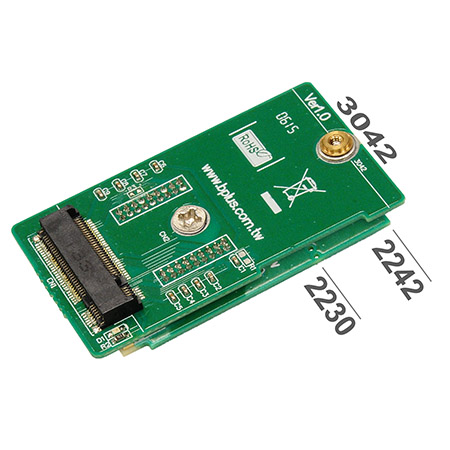

MM4U is vertical extender from M.2 Key B Card slot to M.2 Card together with DB4U. It is very convenient especially to apply“3042 size” M.2 Card module to “2230 / 2242 size” M.2 Card slot.

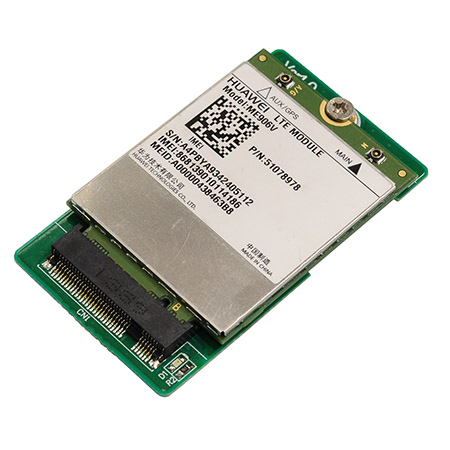

As MM4U has a SIM card slot, wireless M.2 Card modules which require SIM Card such as 3.5G HSPA / 4G / LTE can be used, even though original M.2 slot is not connected to SIM card slot.

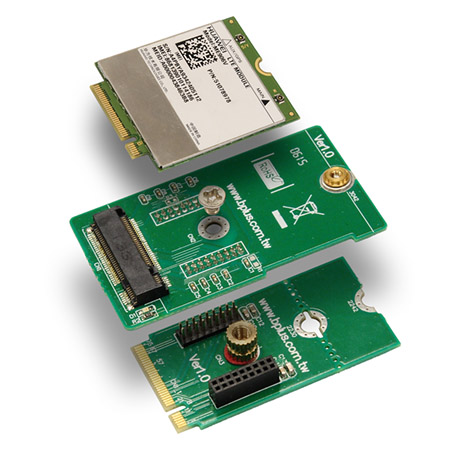

Combination of MM4U and DB4U is the best solution for 3G/LTE M.2 cards evaluation.



        仕様一覧


  • M.2 Specification Revision 1.0

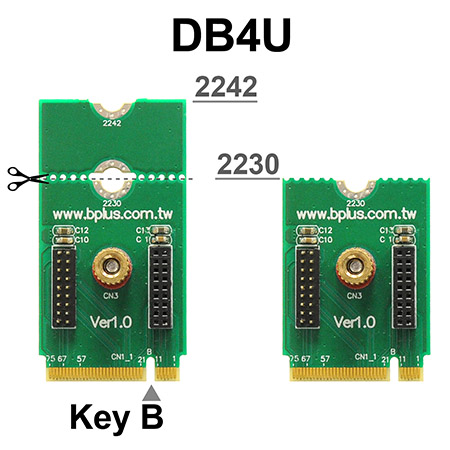

  • Type B: can insert type 3042 M.2 card to type 2230/2242 type M.2 slot.

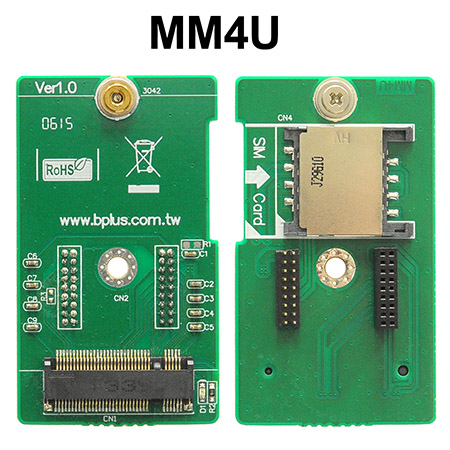

  • SIM Card Slot :
    Suitable for USB 3G/LTE wireless M.2 Card modules
    (HSDPA/HSUPA, UMTS, CDMA GSM, GPRS, EDGE)







Package Content



MM4U-DB4U
(DB4U to M.2 Card Vertical Extender with SIM Card Slot) x1
Flat-Head Screw x2
