ホーム > PCIe & USB Flexible Adapter Selection Guide
FPCカスタムシステム
USD 350*で自分の FPCができる!

  • For example
  • Manufactory info
  • M.2 (NGFF)
  • PCIe Adapter
  • mPCIe Adapter

Part-Number     Dimension

P24SF
P24S-P24F

(KZ-B24)



Part Number P24S-P24F-030B

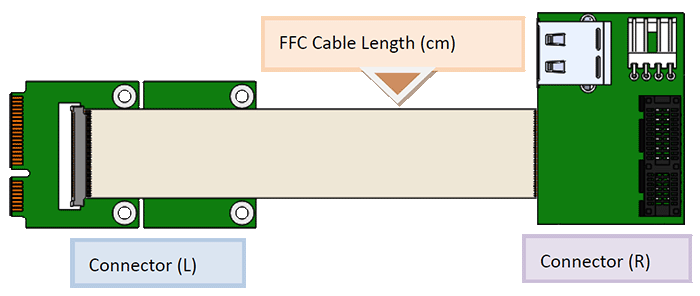

FFC projects P (With FPC Cable)
Connector (L) 24 (Serial number)
Connector (R)
Board S (System), F (Function)
Length 030A (FFC 30CM Positive)

More PCIe extension cable example:

P24SF
P24S-P24F-030B
PCIe to mPCIe FFC 30CM flexible adapter


 [ OEM info] PCIE, USB extension projects components design info
Plug form(L) Plug Connector(R) Conn PCB Board FFC Length Finger pin OEM Code
PCIe gold
ExpressCard
mPCIe gold
M.2 gold
USB male
(Other)
PCIe Edge
ExpressCard conn
mPCIe connector
M.2 connector
USB female
(Other)
S (System)
F (Function)
010 (10CM)
020 (20CM)
030 (30CM)
060 (60CM)
Other
A (Positive)
B (Reverse)
-XX (Code)


    FFC Part Description                    example: FFC0536P-030B (FFC-0.5mm-36Pin-30CM-Reverse)
Vendor Material Pitch Total Pin Length Pin Location Material spec RoHS
BPLUS FFC 0.5mm
1.0mm
other
6P
10P
36P
50P
other
10CM
20CM
30CM
60CM
other
A. Positive
B. Reverse
AWM 20624 80oC VW-1 Compatible

Manufactory info
PCI Express Cable extension, flexible connecter push-push slot, extender converter adapter 0.1mm thickness, jumper mini PCI-E, ExpressCard M.2 NGFF key A, B, E, M  type  test tool full half size 0.5 , 1.0 pitch FFC FPC FR4 PAD OEM EE 3D model PCIE card design

Any kinds of cable you want to OEM, please contact us anytime.
Custom Samples: Quantities up to 50PCS, lead time: 2~3 weeks.
Custom PCBA design: Charge NRE for US$500.
Custom product ordered are non-refundable.

Urgently order production Capability 20K/PCS Monthly.


 Selection Guide




M.2 (NGFF) Adapter Products


    PCIe Edge to M.2 adapter
P11S-P11F
M.2 to PCI-E Extender Board

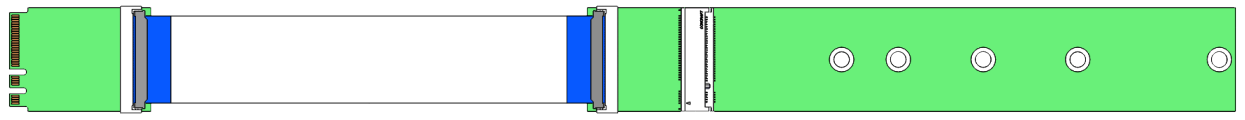

   M.2 to M.2 adapter
P12S-P12F
(L12S-L12F)
M.2 Extender Board
   mPCIe to M.2 adapter
P15S-P15F
M.2 to mPCIe Extender Board

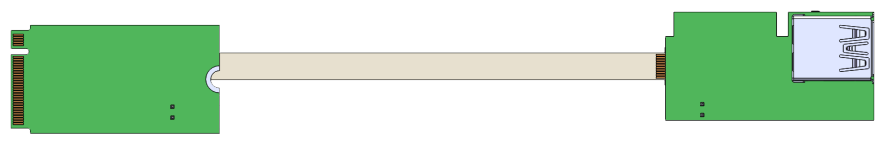

   USB to M.2 adapter
P32S-P32F (U32S-U32F)
M.2 to USB3.0 Extender Board
