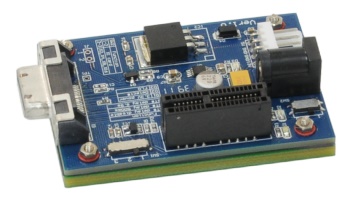

DB5L ( PCIE x1 to PCI Express Adapter )
Introduction:
The DB5L PCIE x1 to full mini card is a converter tool for minicard interface.
This module allows you to use your Molex PCI-E cable in the mini card slot.
It's especially designed to save valuable labor and time in the production environment.
OPTION: molex 799250001 cable |
- Supports PCIE x1 to PCI express minicard slot
- Power LED, Status LED
- Design a Molex 749603018 High quality connectors for long service life

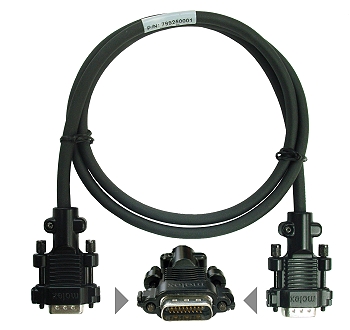

- Support Molex 0799250001 TDP® (Triad® Differential Pair) PCIe x1 Cable Assembly, 18 Circuit, 1.00m (3.281' ) Length, 4-40 Jackscrew
Function:
- PCI Express slot
- molex 799250001 cable
System Requirements:

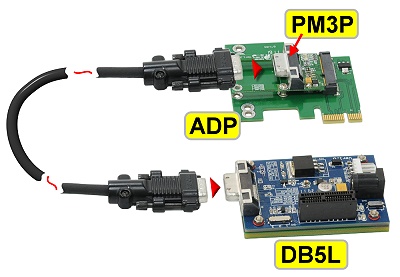

DB5L-PM3P-ADP Package Contents 販売価格: US$ 294 |
|
DB5L ( PCIE x1 to PCI Express Adapter ) x1 | ADP ( MiniCard用PCIeアダプタ ver1.0 ) x1 |
PM3P ( MiniCard-PCI Express標準ケーブルアダプタ ver1.2 ) x1 | SWEX (ATX電源用スイッチ ver1.1) |
molex 799250002 cable 300cm x1 | 外部 5V/12V電源供給ケーブル x1 |
専用ネジ x2 |
オプション |
|||||||
|
Documents Download |
|||
Brief | Taiwan | Taiwan 2 | China Mirror |
Dimension | Taiwan | Taiwan 2 | China Mirror |
Schematic | Taiwan | Taiwan 2 | China Mirror |
