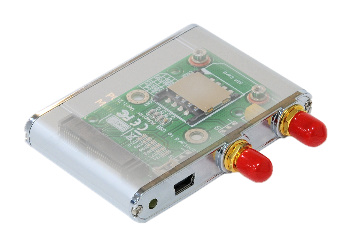

USBMA-5572 (2.4G/5.8G デュアルバンド 2T2R 応WiFi無線LAN用USBアダプタ)
Overview:
The USBMA-5572 is a high speed USB 2.0 wireless adapter supporting 802.11n, a/b /g with two detachable antennas that can be installed easily onto any desktop or laptop with an available USB port.
High value, rock solid support, and stylish form factor make the USBMA-5572, the perfect choice for those who want the ease of using the USB form factor to reach 802.11n 300M speeds.
USBMA-5572 with AW-NU119H Wireless USB Mini Card(half size) | |
- Low power consumption and high performance
- Enhanced wireless security
- 2T2R 2.4/5 GHz with 300 Mbps PHY data rate
- QoS: WMM & WMM-PS support
- Supports 64/128-bit WEP/TKIP/AES/WPA/WPA2/WAPI advanced security.
Function
- Model Name: USBMA-5572
- Host Interface: USB interface
- Frequency Range: 2.400 ~ 2.483GHz ; 5.725 ~ 5.85GHz
- 802.11a: 6, 9, 12, 18, 24, 36, 48,54Mbps
- 802.11b: 1, 2, 5.5 and 11Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 802.11n: up to 300Mbps
- Major Chipset: Ralink® RT5572
- Regulatory: RoHS compliant
Specification
- No driver CD accompanied.
Notice:
- Desktop or NOTEBOOK with USB port
- Windows 2000, XP, Vista 32/64 Windows 7 or Linux
System Requirements:
USBMA-5572 Package Contents | |
USBMA-5572 (2.4G/5.8G Dual Band 2T2R USB WIFI wireless Adapter) x1 with Ralink® RT5572 WiFi Card x1 IPX to RP-SMA cable x2 |
IPX to RP-SMA cable |
U2AMTB60 (USB 2.0 A Male to B Mini 5 Pin Cable) x1 | ANT2458Q5P (2.4/5.8GHz Rubber Duck Antenna) x2 |
Documents Download | |||
USBMA-5572 Brief | Taiwan 1 | Taiwan 2 Mirror | China Mirror |
Driver download | Taiwan 1 | Taiwan 2 Mirror | China Mirror |
IPX cable brief (PDF): | Taiwan 1 | Taiwan 2 Mirror | China Mirror |
2.4/5.8GHz Antenna brief (PDF): | Taiwan 1 | Taiwan 2 Mirror | China Mirror |
Compatibility List(PDF): | Taiwan 1 | Taiwan 2 Mirror | China Mirror |
USBMx functions comparison: | Taiwan 1 | Taiwan 2 Mirror | China Mirror |
